Secondary Crushing & Washing Power in the Himalayan Foothills

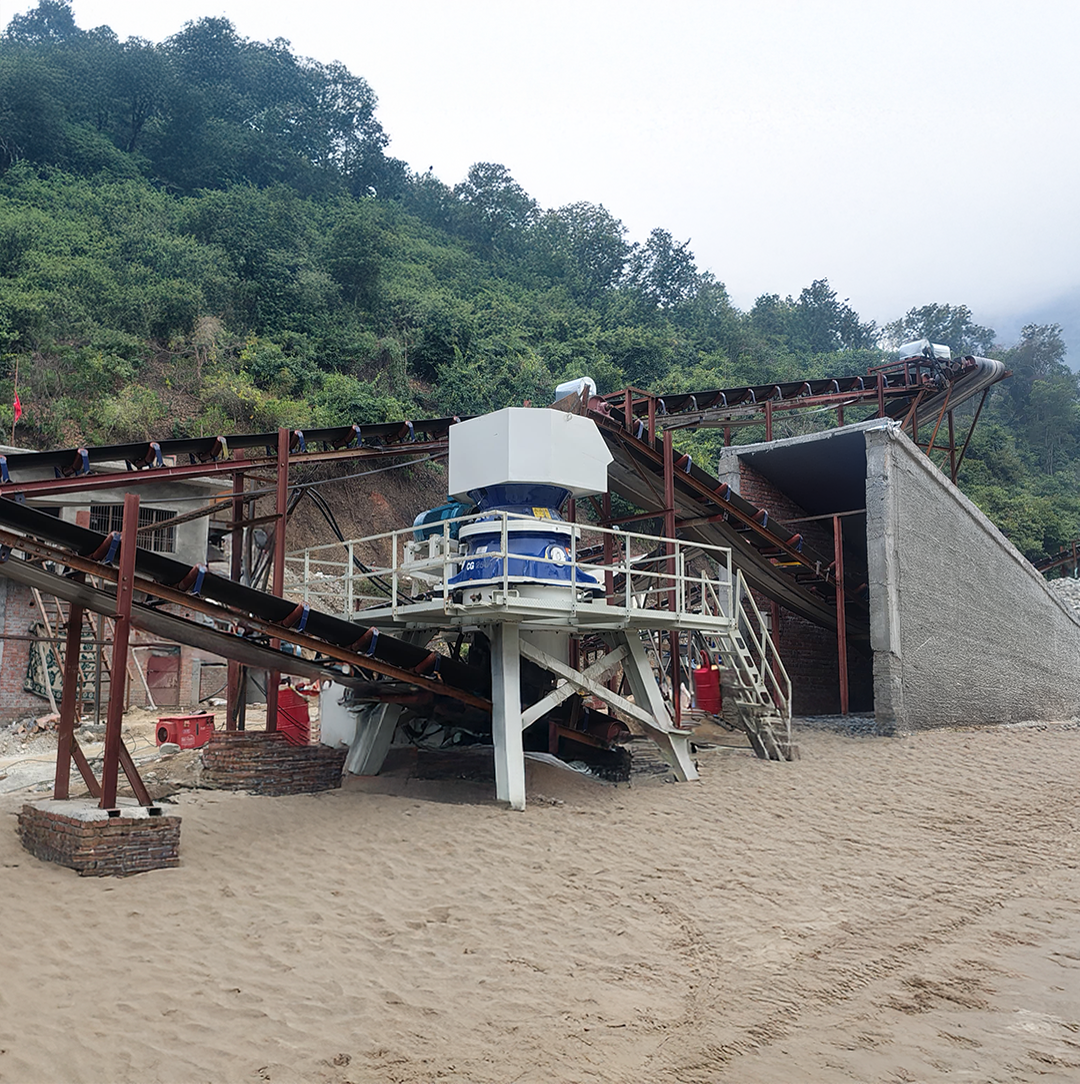

Tanakpur hero

Surviksh Stone Crusher | Tanakpur, UK

  1. Home
  2. Case Studies
  3. Secondary Crushing & Washing Power in the Himalayan Foothills
Tanakpur hero

In the gateway town of Tanakpur, where Himalayan river aggregates feed the growing demand for construction materials in Uttarakhand and adjoining states, Surviksh Stone Crusher, led by Mr. Suraj Sharma, needed a solution that could deliver perfectly shaped aggregates and clean, IS-compliant sand. To achieve this, they invested in a Taurian CG250 Cone Crusher for secondary crushing and a TWS Cyclotwin 150 double hydrocyclone washing unit—a combination designed to maximize shaping efficiency and sand cleanliness in one integrated workflow.

Geological Setting – Riverbed & Hard Rock Mix of Tanakpur

Tanakpur’s material sources include both riverbed gravels and blasted hard rock from the lower Himalayan ranges. This creates a variable feed with mixed particle sizes and significant silt content. Producing cubical aggregates and clean plaster/concrete sand from such material demands precise crushing and advanced washing technology.

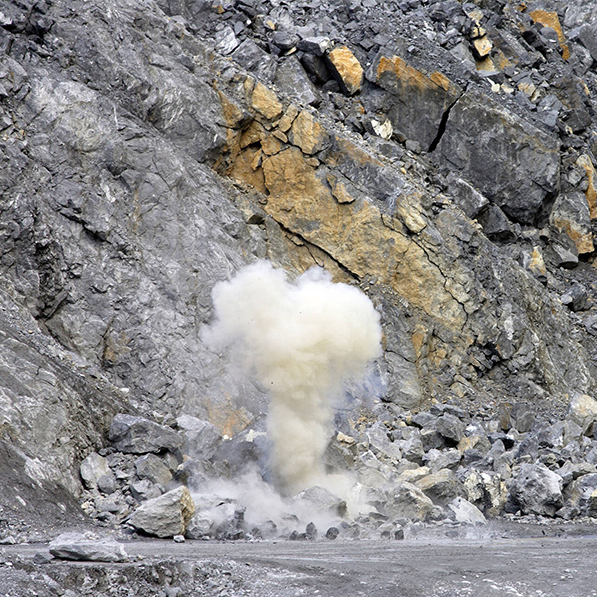

blasted hard rock Tanakpur

The Challenge

Before upgrading, Surviksh Stone Crusher faced:

  • Flaky and elongated aggregates from the old secondary stage.
  • High silt content in sand, leading to rejections from RMC plants.
  • Inconsistent gradation in both coarse and fine products.
  • Excess water use and fines loss due to outdated washing methods.

Mr. Sharma required a dual-solution system to handle shape correction in aggregates while delivering high-recovery, low-moisture washed sand.

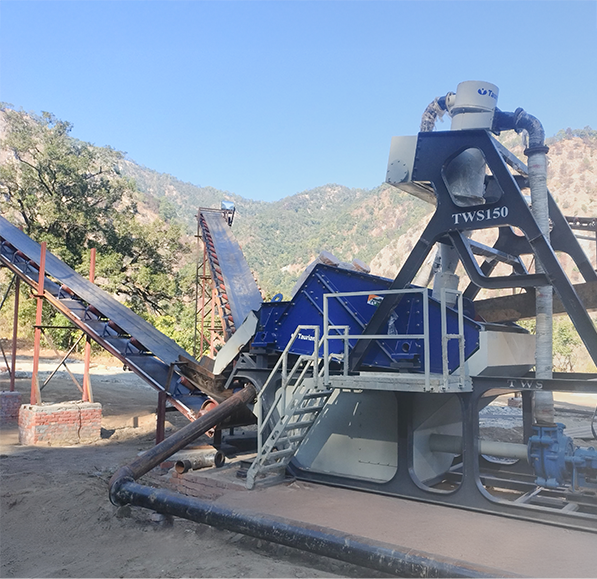

Tanakpur 1

The Solution

Taurian Secondary & Washing Setup comprising:

  • CG250 Cone Crusher – A robust bearing-type cone with hydraulic CSS adjustment, engineered for hard, abrasive material, and optimized for cubical shape output.
  • TWS Cyclotwin 150 Double Hydrocyclone Washing Unit – High-capacity twin cyclones for sharp fines separation, paired with an integrated dewatering screen to produce stackable sand.

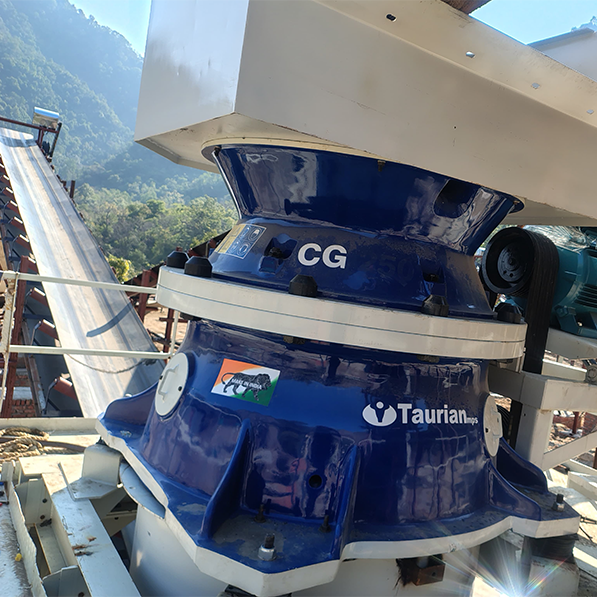

Tanakpur 3

Post-installation, Surviksh Stone Crusher achieved a 50% improvement in aggregate shape quality and delivered washed M-Sand and P-Sand with <5% silt content. The plant now consistently produces:

  • Cubical 20mm & 10mm aggregates for bituminous and concrete works.
  • Clean, dry sand meeting IS:383 and IS:1542 standards.
  • Reduced waste, with higher recovery of fines for saleable product.

The combination of CG250 and Cyclotwin 150 has allowed Mr. Sharma to expand his client base, fulfill high-spec government contracts, and strengthen Surviksh’s reputation for quality in the competitive Himalayan foothills market.

Tanakpur result impact
