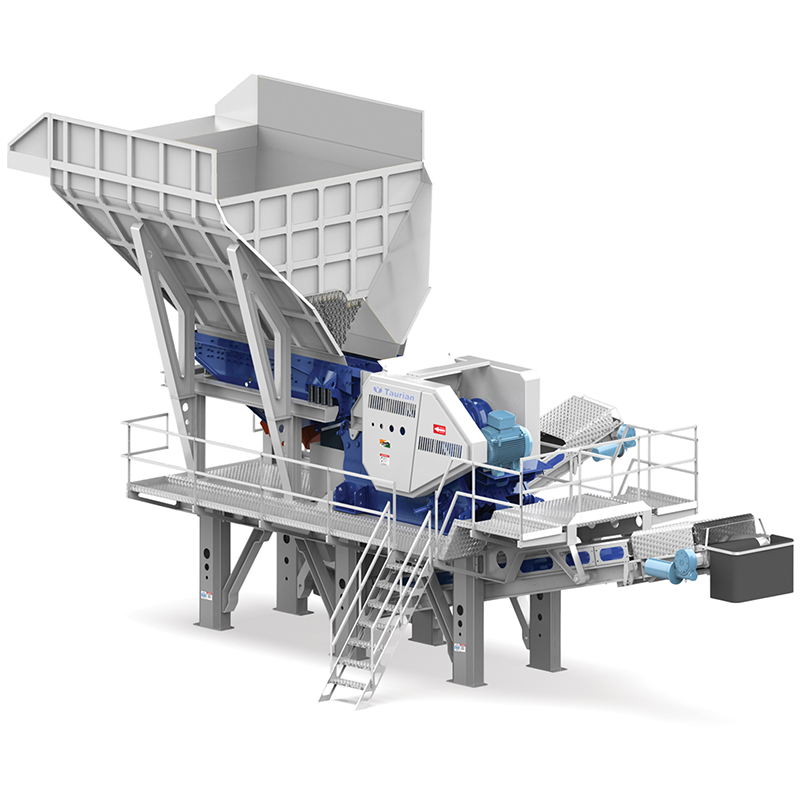

TJ Series™ Jaw Crusher

The Heart of Every Mineral Processing System

With over two decades of experience, Taurian has hundreds of jaw crushers operating globally. Known for reliability and performance, Taurian Jaw Crushers are the preferred choice for primary reduction in mining, quarrying, and aggregates. Engineered for tough conditions, they deliver high output with excellent value for money.

Strength at the Core

Our TJ Jaw Crushers are made for demanding primary crushing. Precision-built with a dual flywheel mechanism, they deliver smooth, powerful motion for high-efficiency material reduction. The deep chamber and ideal nip angle ensure aggressive crushing and consistent output. Designed for quick installation and low maintenance, the modular frame supports various mounting setups. With multiple jaw profiles available, the TJ series offers flexibility, performance, and long-term reliability—ideal for heavy-duty crushing across mining and aggregate sites.

Wide Range of Jaw Plates

A wide range of jaw plate options—such as Quarry, Super Teeth, and Anti-Slab—allow the TJ Jaw Crusher to be tailored for specific applications. All plates are fully interchangeable between fixed and moving jaws and are reversible, enabling operators to flip them once one side wears out. This not only simplifies inventory management but also significantly extends wear life, offering exceptional operational flexibility and substantial long-term cost savings.

TJ Series™ eccentric shaft is the real workhorse

The Taurian TJ Series™ features a high-strength alloy steel eccentric shaft, engineered for durability under constant load. Heavy-duty bearings support smooth elliptical motion for powerful crushing. Its balanced design reduces vibration, while the flywheel system ensures stable operation, efficient energy transfer, and long-lasting performance in primary crushing applications.

Bolted body for unmatched durability and stress control

The Taurian TJ Jaw Crusher uses a rugged bolted body design for enhanced strength and serviceability. This modular construction absorbs stress effectively, reduces the risk of cracks, and simplifies transport and maintenance. It ensures long-term durability, faster on-site assembly, and easier part replacement in tough operating conditions.

Wedge assembly system for closed side setting (CSS) adjustments

Taurian Jaw Crushers come equipped with a quick and user-friendly wedge assembly for closed side setting (CSS) adjustments—eliminating the need for traditional shims. For enhanced convenience, an optional hydraulic power pack enables push-button CSS control, allowing for precise, fast adjustments to maximize crusher performance and productivity.

Jaw Plates

Eccentric Shaft

Bolted Jaw Structure

CSS Adjustment

Model	TJ 100	TJ 150	TJ 200	TJ 300	TJ 350	TJ 400	TJ 500
Feed opening (mm)	800 × 510 mm	930 × 580 mm	1060 × 700 mm	1150 × 800 mm	1200 × 870 mm	1250 × 950 mm	1400 × 1070 mm
Feed opening (in)	32 × 20 in	37 × 23 in	42 × 28 in	45 × 32 in	47 × 34 in	49 × 37 in	55 × 42 in
Max feed size	400 mm	464 mm	560 mm	640 mm	696 mm	760 mm	856 mm
Capacity	55–370 TPH	105–430 TPH	150–560 TPH	165–580 TPH	175–595 TPH	245–830 TPH	325–925 TPH
CSS range	40–175 mm	60–175 mm	70–200 mm	70–200 mm	70–175 mm	100–250 mm	125–250 mm
Speed	350 rpm	330 rpm	280 rpm	260 rpm	230 rpm	220 rpm	220 rpm
Motor	75 kW	90 kW	110 kW	132 kW	160 kW	160 kW	200 kW
Weight	9520 kgs	11870 kgs	17050 kgs	21500 kgs	29300 kgs	43910 kgs	54010 kgs

Model

TJ 100

TJ 150

TJ 200

TJ 300

TJ 350

TJ 400

TJ 500

Feed opening (mm)

800 × 510 mm

930 × 580 mm

1060 × 700 mm

1150 × 800 mm

1200 × 870 mm

1250 × 950 mm

1400 × 1070 mm

Feed opening (in)

32 × 20 in

37 × 23 in

42 × 28 in

45 × 32 in

47 × 34 in

49 × 37 in

55 × 42 in

Max feed size

400 mm

464 mm

560 mm

640 mm

696 mm

760 mm

856 mm

Capacity

55–370 TPH

105–430 TPH

150–560 TPH

165–580 TPH

175–595 TPH

245–830 TPH

325–925 TPH

CSS range

40–175 mm

60–175 mm

70–200 mm

70–175 mm

100–250 mm

125–250 mm

Speed

350 rpm

330 rpm

280 rpm

260 rpm

230 rpm

220 rpm

Motor

75 kW

90 kW

110 kW

132 kW

160 kW

200 kW

Weight

9520 kgs

11870 kgs

17050 kgs

21500 kgs

29300 kgs

43910 kgs

54010 kgs

Model		TJ 100	TJ 150	TJ 200	TJ 300	TJ 350	TJ 400	TJ 500
0–60	40	60–80
0–75	50	70–100
0–90	60	85–115	110–140
0–105	70	100–140	130–160	155–190	165–205	180–245
0–120	80	115–155	145–185	165–215	180–235	200–275
0–135	90	130–180	165–205	195–240	205–255	215–310
0–150	100	145–195	180–230	211–270	225–285	240–330	250–340
0–185	125	180–250	225–285	260–330	270–345	290–400	300–410	330–450
0–225	150	215–295	270–340	310–390	320–405	345–480	350–480	385–535
0–260	175	250–340	315–395	360–455	370–465	390–545	400–550	440–610
0–300	200			400–505	410–520		450–620	500–690
0–340	225						500–690	555–765
0–375	250						550–760	615–845

Model

TJ 100

TJ 150

TJ 200

TJ 300

TJ 350

TJ 400

TJ 500

Product size (mm)

CSS (mm)

TPH

0–60

60–80

0–75

70–100

0–90

85–115

110–140

0–105

100–140

130–160

155–190

165–205

180–245

0–120

115–155

145–185

165–215

180–235

200–275

0–135

130–180

165–205

195–240

205–255

215–310

0–150

100

145–195

180–230

211–270

225–285

240–330

250–340

0–185

125

180–250

225–285

260–330

270–345

290–400

300–410

330–450

0–225

150

215–295

270–340

310–390

320–405

345–480

350–480

385–535

0–260

175

250–340

315–395

360–455

370–465

390–545

400–550

440–610

0–300

200

400–505

410–520

450–620

500–690

0–340

225

500–690

555–765

0–375

250

550–760

615–845
