Cyclowash™

Cluster Cyclone

Cluster hero

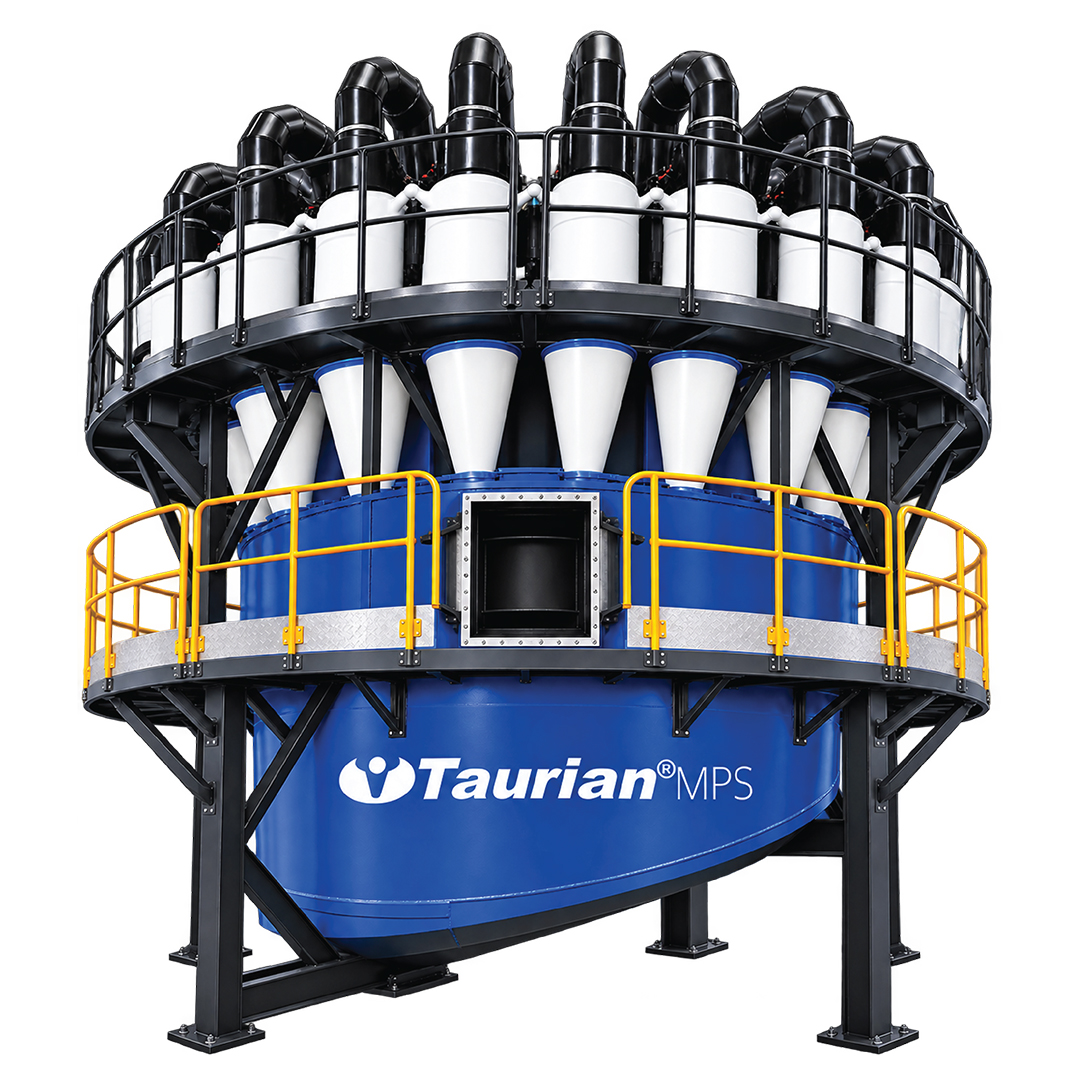

The Taurian Cyclowash™ Cluster Cyclone uses multiple hydrocyclones for high-capacity, consistent classification. Its balanced feed distribution and modular design support stable separation, flexible operation and easier maintenance.

  1. Home
  2. Products
  3. Cyclowash
  4. Cluster Cyclone
Cluster hero
What We Offer

Precision Classification. Consistent Separation.

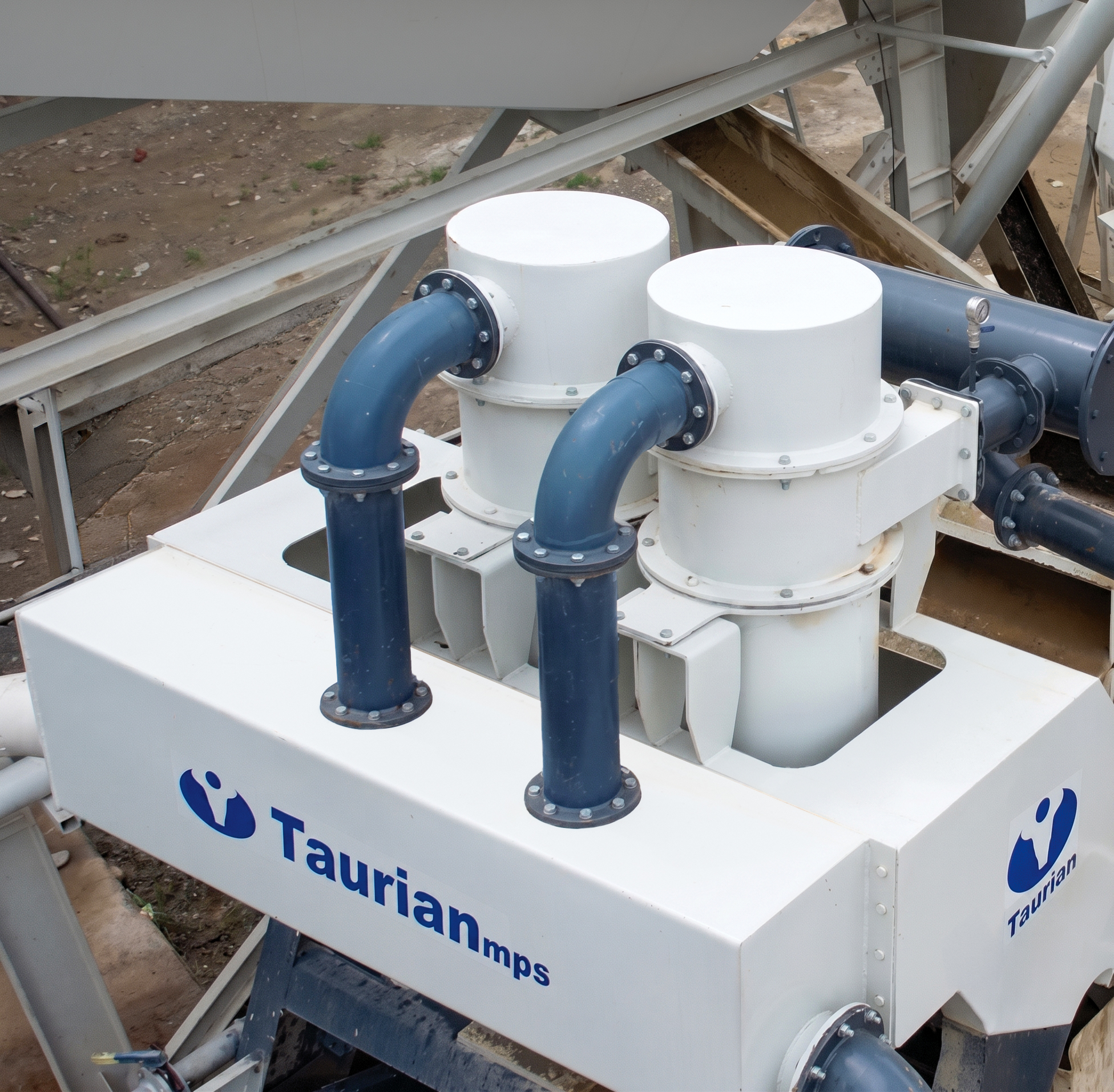

Taurian Cluster Cyclones provide a flexible, high-capacity solution for slurry classification across aggregate, M-Sand and mineral processing applications. Multiple hydrocyclones operate through a common feed system to maintain balanced slurry distribution and consistent separation, while the modular arrangement allows individual cyclones to be isolated or brought online as throughput requirements change. The result is stable classification performance, easier maintenance and greater operating flexibility within a compact system. Cluster Cyclone Digital

img 01

Product Features

Engineered for safe, seamless operation—making sand washing simpler and more efficient.

Optimized Feed Entry

Guides slurry into the cyclone at a controlled angle and velocity, helping establish stable vortex formation while reducing turbulence, inlet impact and localized wear.

Controlled Flow Through the Cone

The tapered cone guides rotating slurry smoothly toward the apex, maintaining flow velocity while reducing turbulence and localized wall impact for stable particle separation.

Why the Inlet Shape Matters

The curved inlet guides slurry smoothly into the cyclone, reducing abrupt wall impact and turbulence while supporting stable rotational flow, consistent classification and improved wear life.

Controlled Internal Flow

The curved internal flow path guides slurry smoothly around the cyclone body, reducing direct wall impact and localized wear while maintaining stable rotational flow for consistent separation.

Controlled Feed Entry
Controlled Cone Flow
Curved Inlet Geometry
Stable Internal Flow

Technical Specifications

Cluster Cyclone - MX Series
ModelMX 100MX 150MX 250MX 375MX 500MX 650MX 800
Body Diameter100 mm150 mm250 mm375 mm500 mm650 mm800 mm
Height876 mm1,064 mm1,491 mm1,708 mm2,001 mm2,441.3 mm2,943.3 mm
Weight8 kg18.5 kg125 kg210 kg375 kg800 kg1,225 kg
MaterialAll PolyurethaneAll PolyurethaneSteel housing with polyurethaneSteel housing with polyurethaneSteel housing with polyurethaneSteel housing with polyurethaneSteel housing with polyurethane
Inlet Pipe Size2 in3 in4 in6 in8 in10 in12 in
Overflow Pipe Size2 in3 in5 in8 in10 in14 in18 in

Downloads for Cluster Cyclone

Cluster Cyclone

Case Studies

You May Be Interested in These Projects

MP, chitrakoot 1
Raising Sand Standards in Chitrakoot with Taurian’s TWS200B
Jai Shri Sankat Mochan Stone Mill | Chitrakoot, MP
View Case Study
hero Web 1
4-Stage Excellence with Taurian Crushing & Washing Solutions in Rajasthan
Shree Balaji Stone Crusher | Chomu, RJ
View Case Study

Explore other Cyclowash Solutions

Frac Feature image

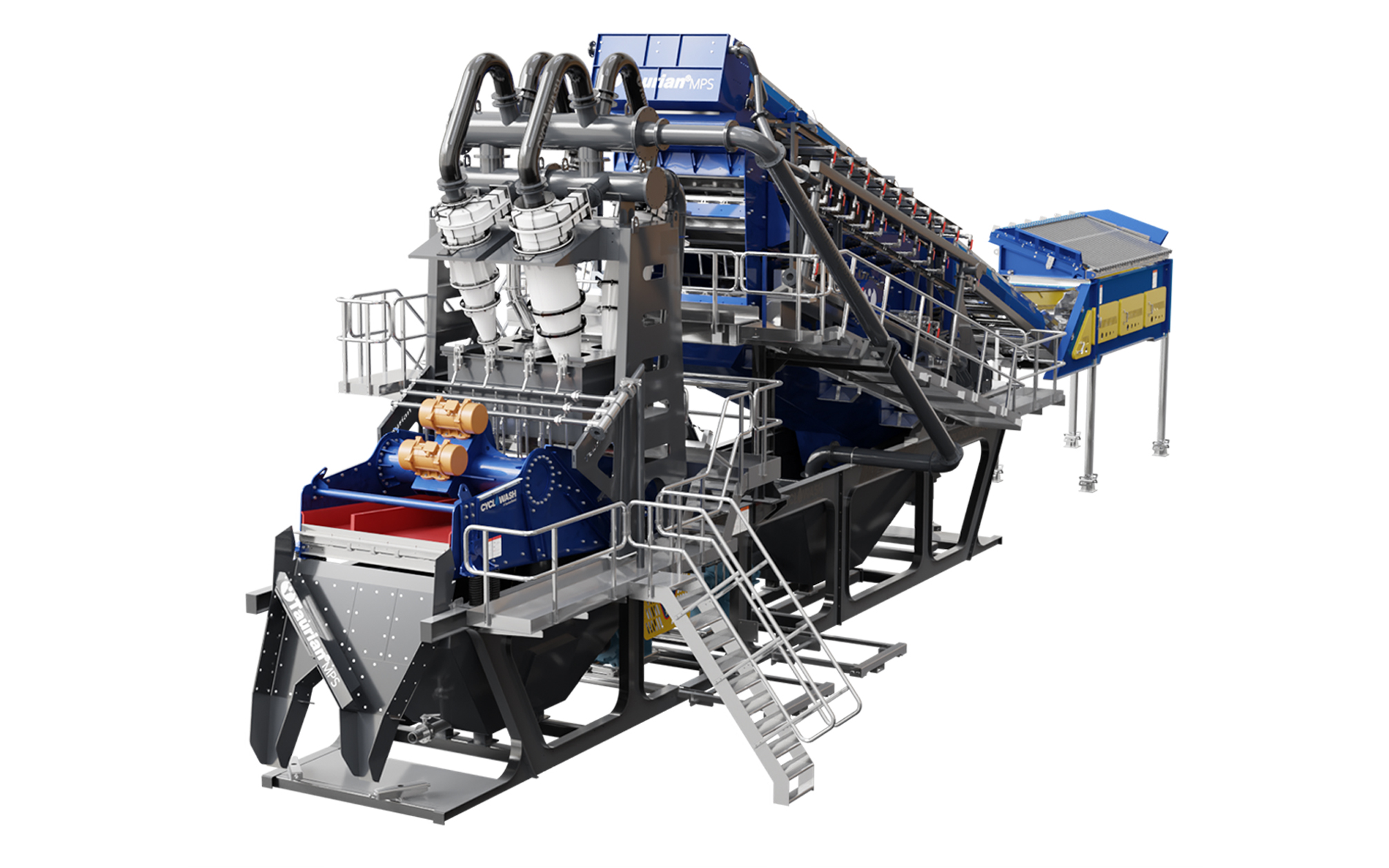

Frac
