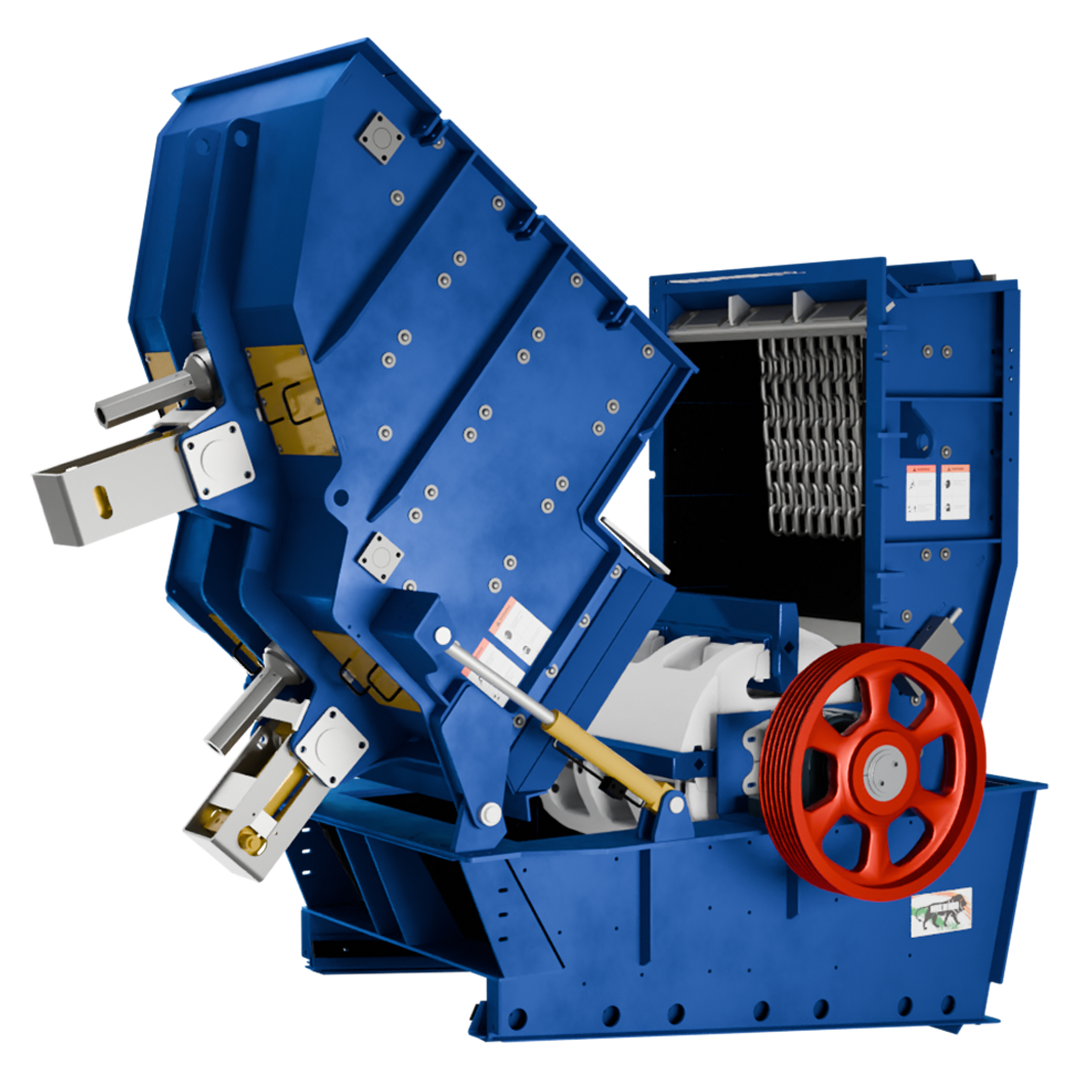

Horizontal Shaft Impactor (Secondary)

High-Speed Impact. High-Quality Output.

The Secondary Horizontal Shaft Impactor (HSI) is built for controlled secondary crushing, high reduction, and premium cubical aggregate shape. With a dynamically balanced 4-bar rotor, hydraulic breaker plate adjustment, and heavy-duty wear protection, it delivers consistent output, reliable performance, and faster maintenance in tough quarrying and recycling applications.

Key Benefits

Controlled Crushing. Consistent Output.

High reduction, cubical output, precise control, and dependable performance.

What We Offer

Controlled Secondary Crushing

Taurian Secondary HSI offers controlled secondary crushing, high reduction, cubical output, hydraulic adjustment, overload protection, and faster maintenance for reliable quarrying and recycling performance.

Product Features

High-impact crushing with controlled output and reliable performance.

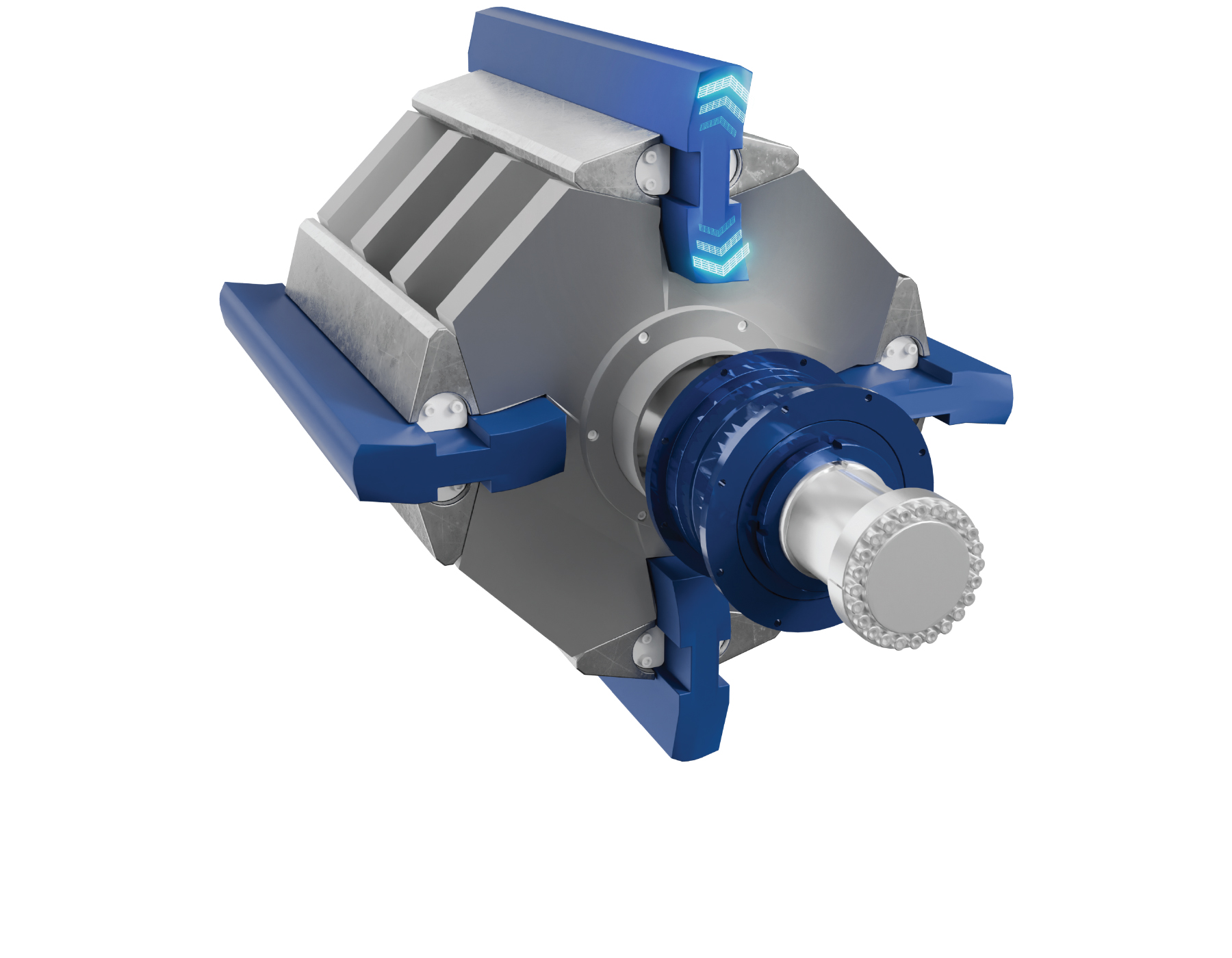

Advanced High-Inertia Rotor

The Taurian MPS Secondary Impact Crusher delivers powerful reduction, cubical output, precise gradation control, and faster maintenance with a high-inertia rotor, hydraulic adjustment, and heavy-duty wear protection.

Premium Blow Bar Retention System

The Taurian MPS Secondary HSI uses a secure wedge-lock system to keep blow bars firmly locked during high-impact crushing. Its quick-release arrangement supports faster blow bar turning and replacement, while reversible blow bars allow both wear sides to be used for longer service life. Different metallurgy options can also be selected based on feed material, helping improve wear life, crushing efficiency, and operating cost.

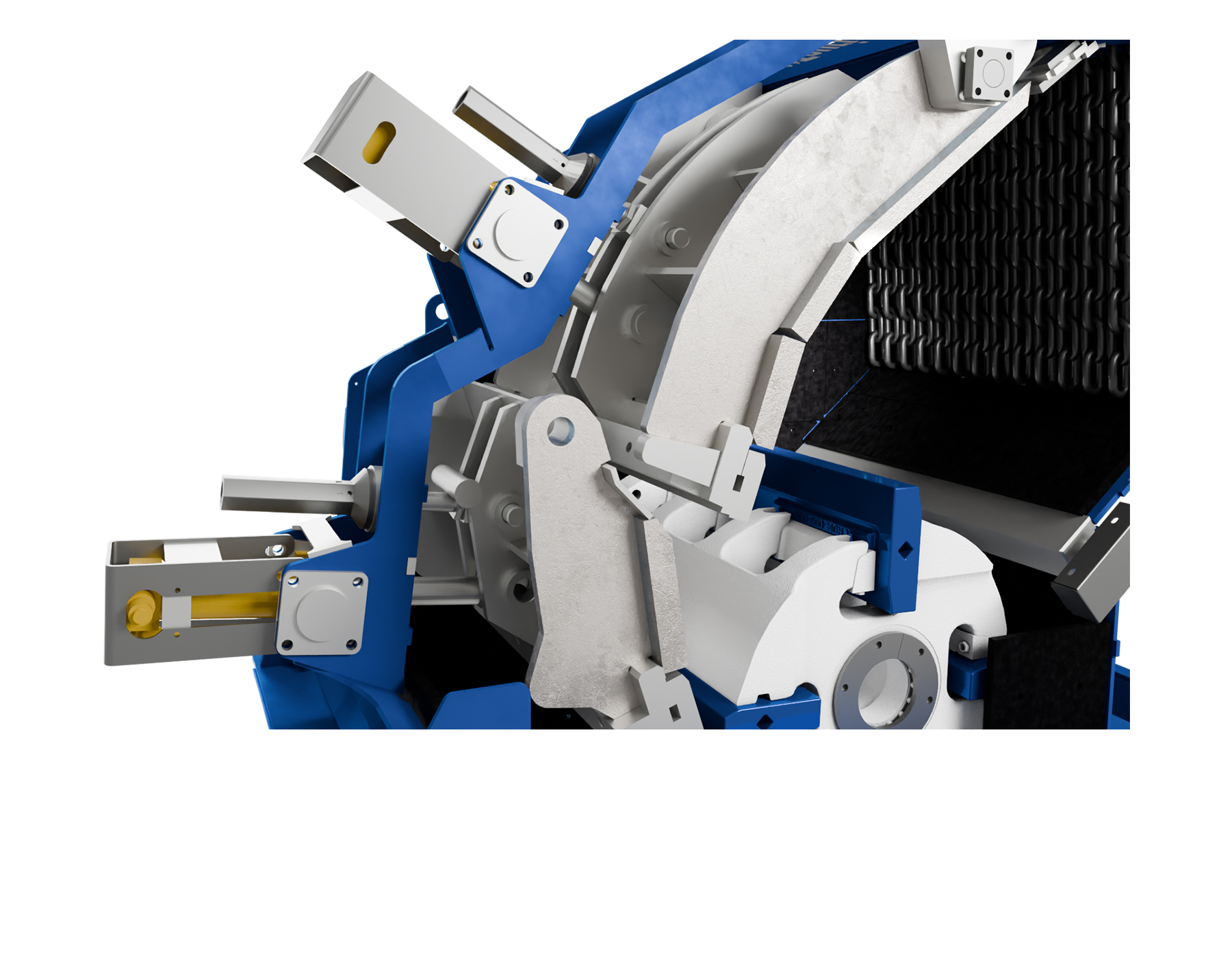

Hydraulic Assist System

The Taurian MPS Secondary HSI features a hydraulic assist system for quick and precise breaker plate adjustment, helping operators control product size and gradation with ease. Its hydraulically opening crusher body provides full internal access for safer inspections, faster maintenance, and reduced downtime during servicing.

Intelligent Overload & Wear Protection

Intelligent Overload Protection

A hydraulic relief system protects the crusher by allowing breaker plates to lift during tramp material entry and automatically reset after passage.

Superior Liner Protection

Heavy-duty interchangeable wear liners protect high-impact zones, reduce maintenance cost, and extend crusher life.

High-Inertia Rotor

Premium Blow Bar Retention

Hydraulic Maintenance Access

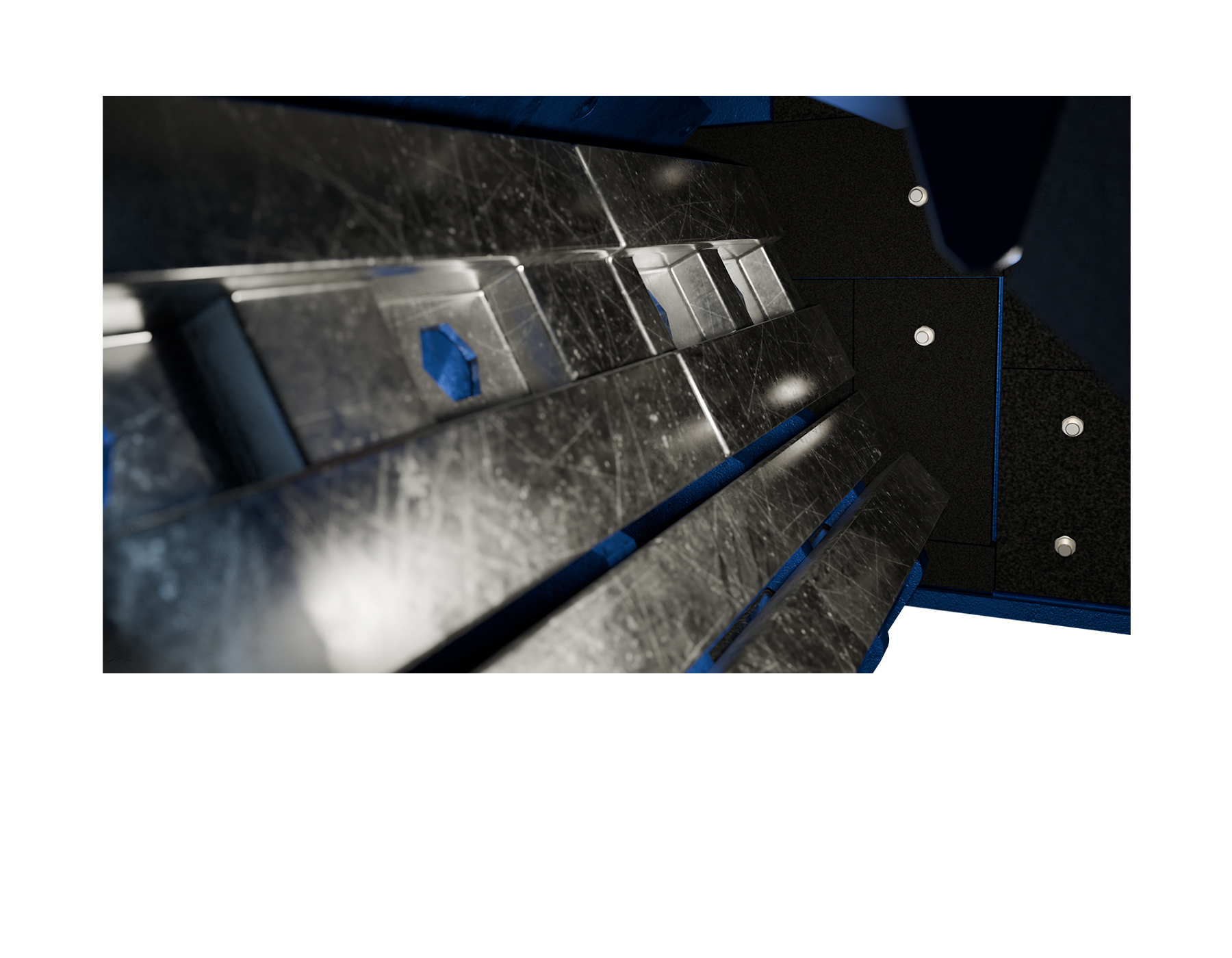

Protection & Reliability

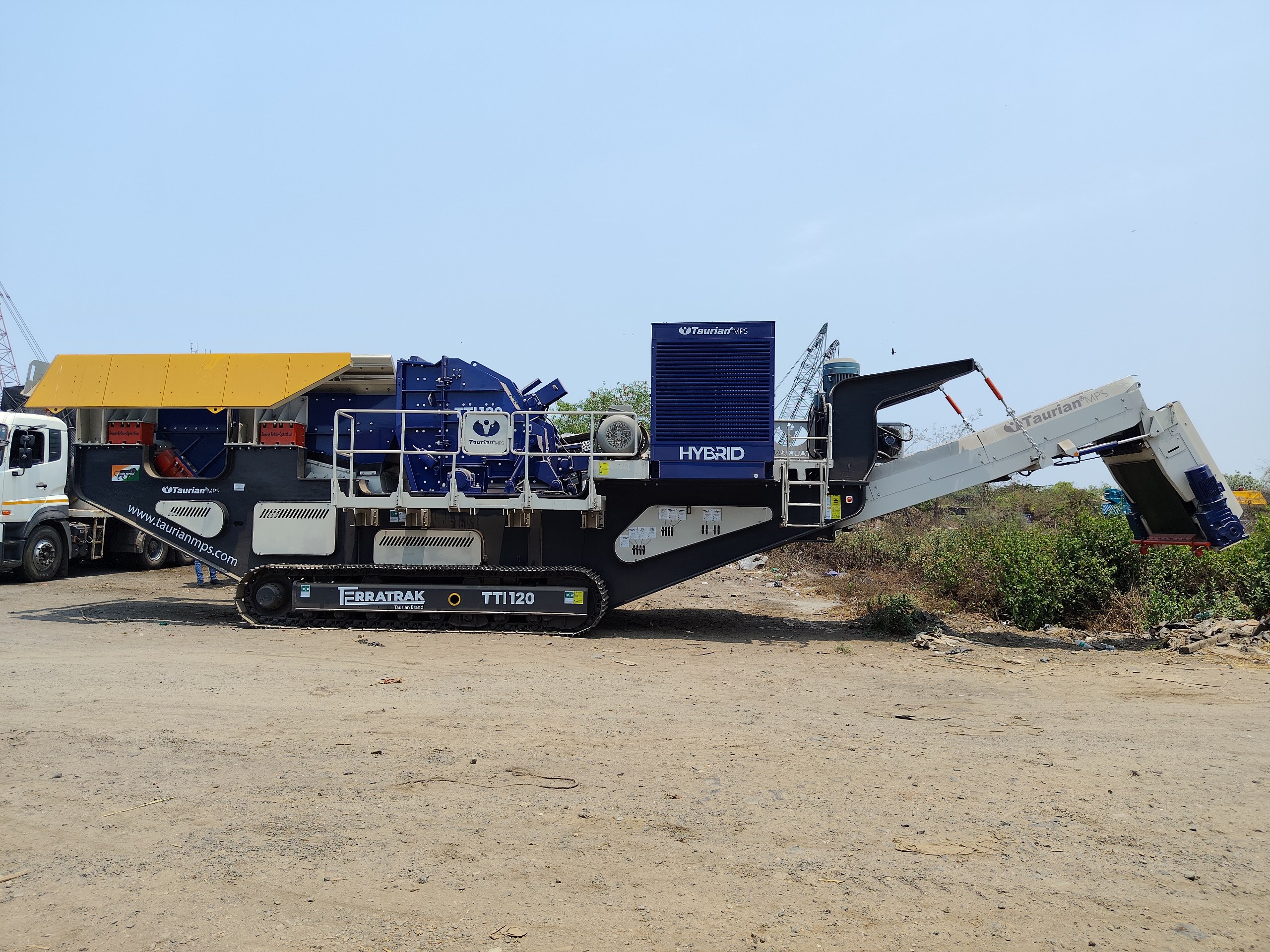

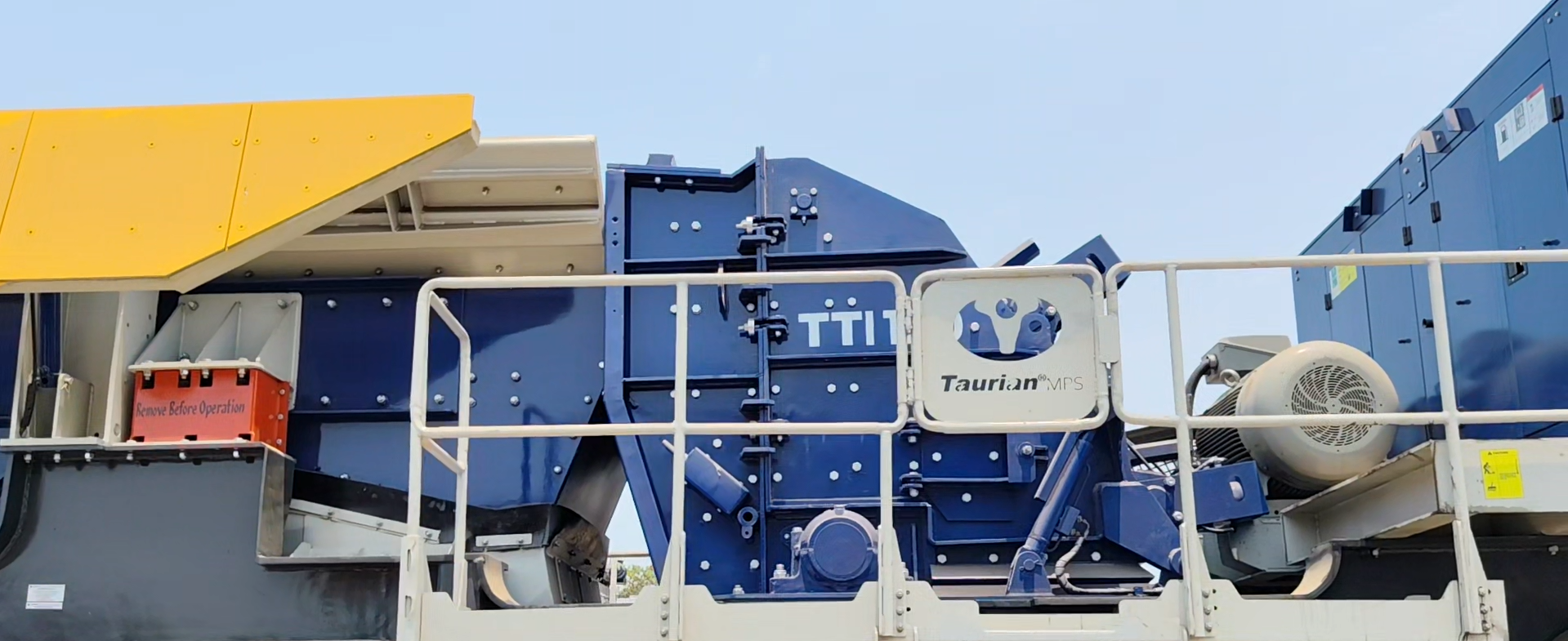

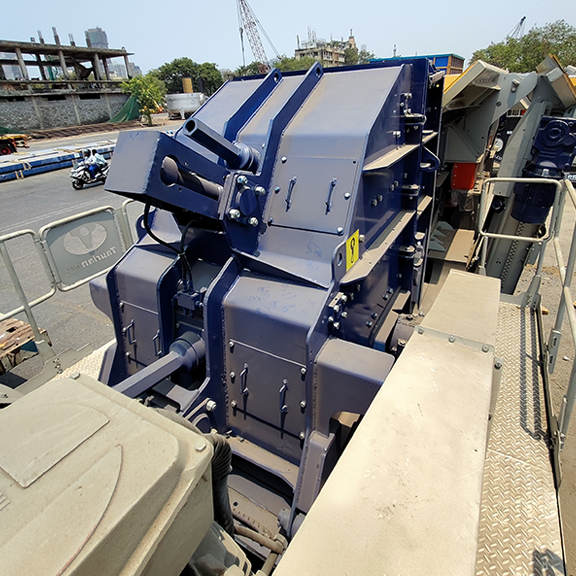

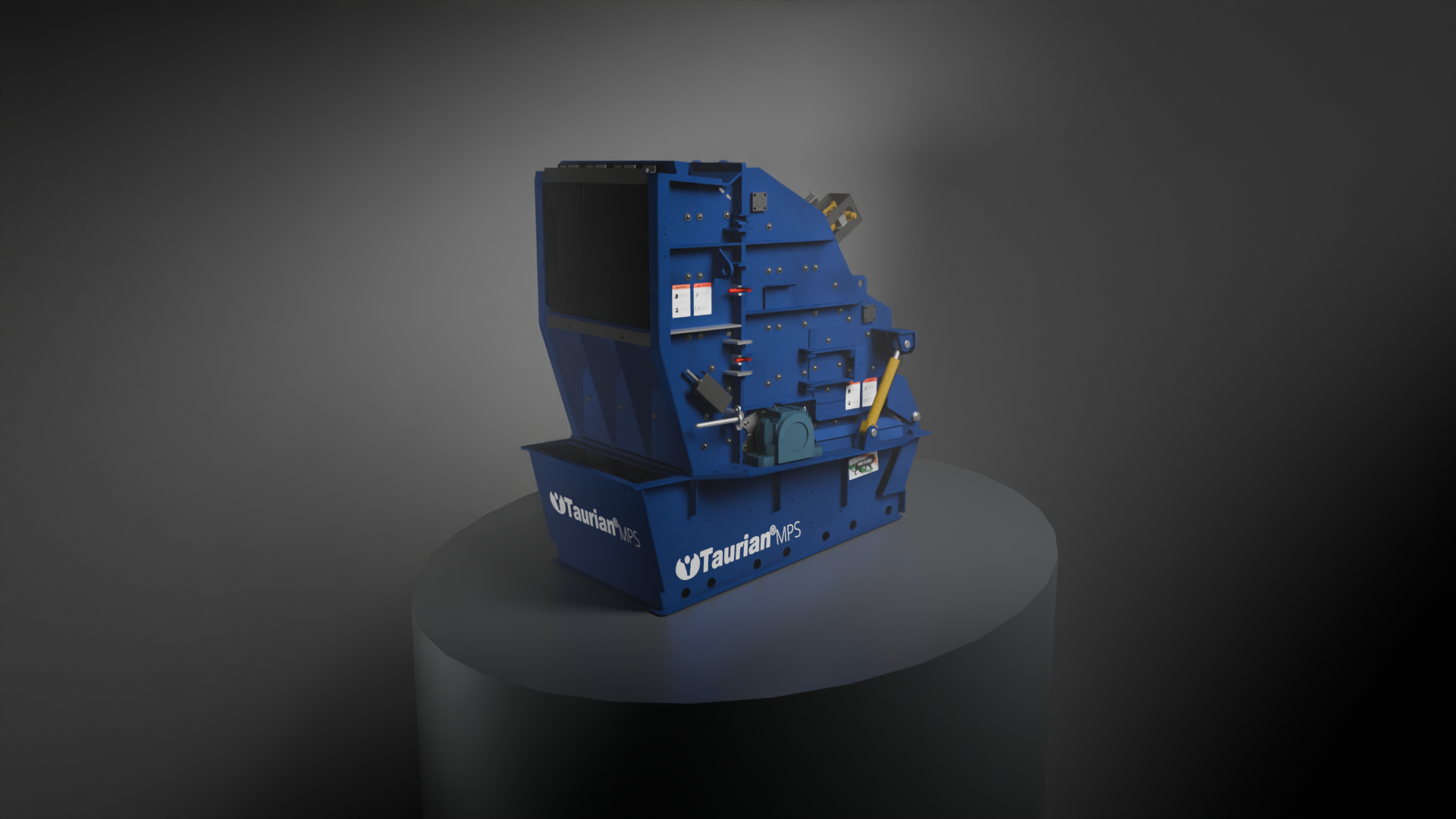

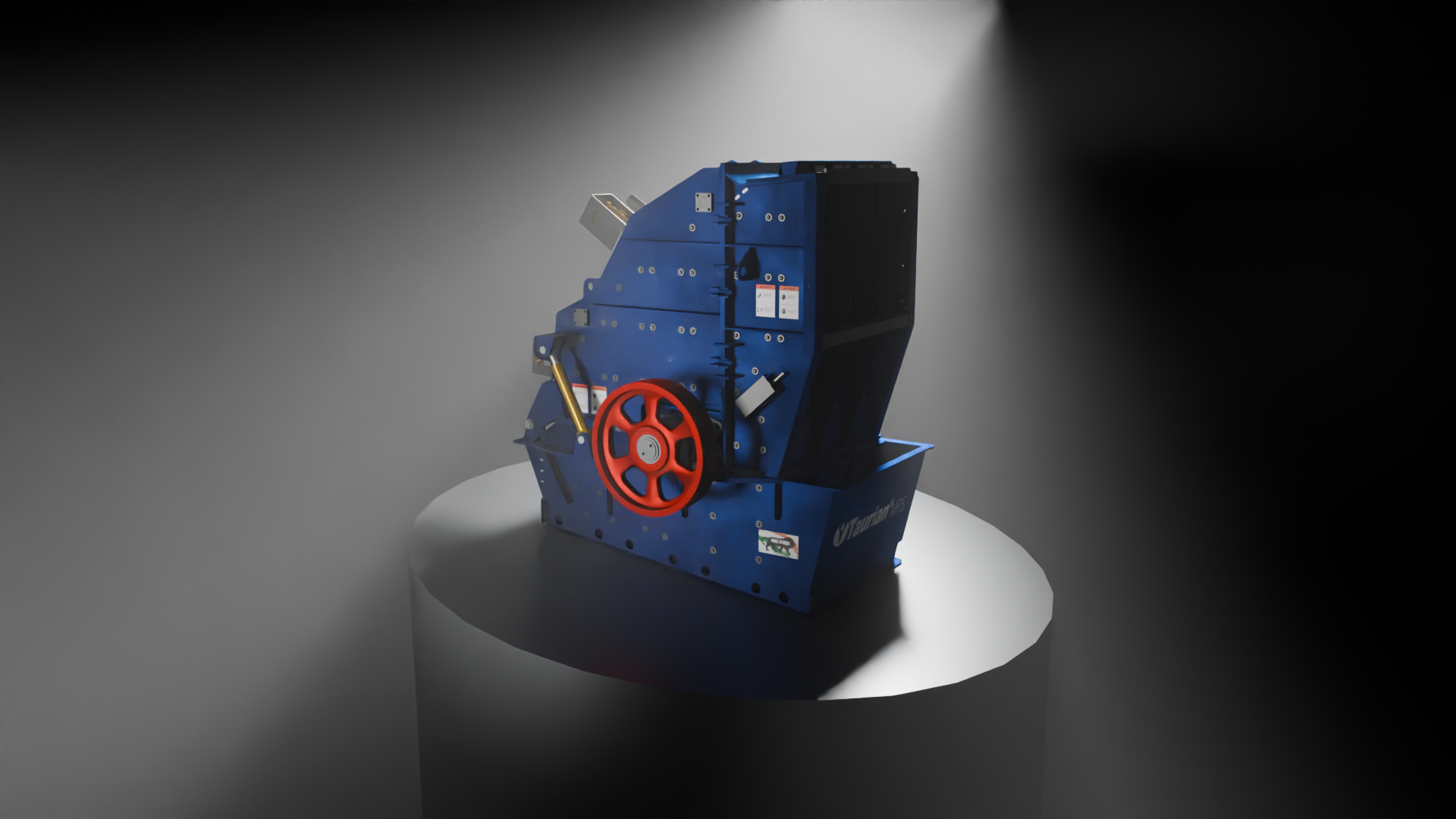

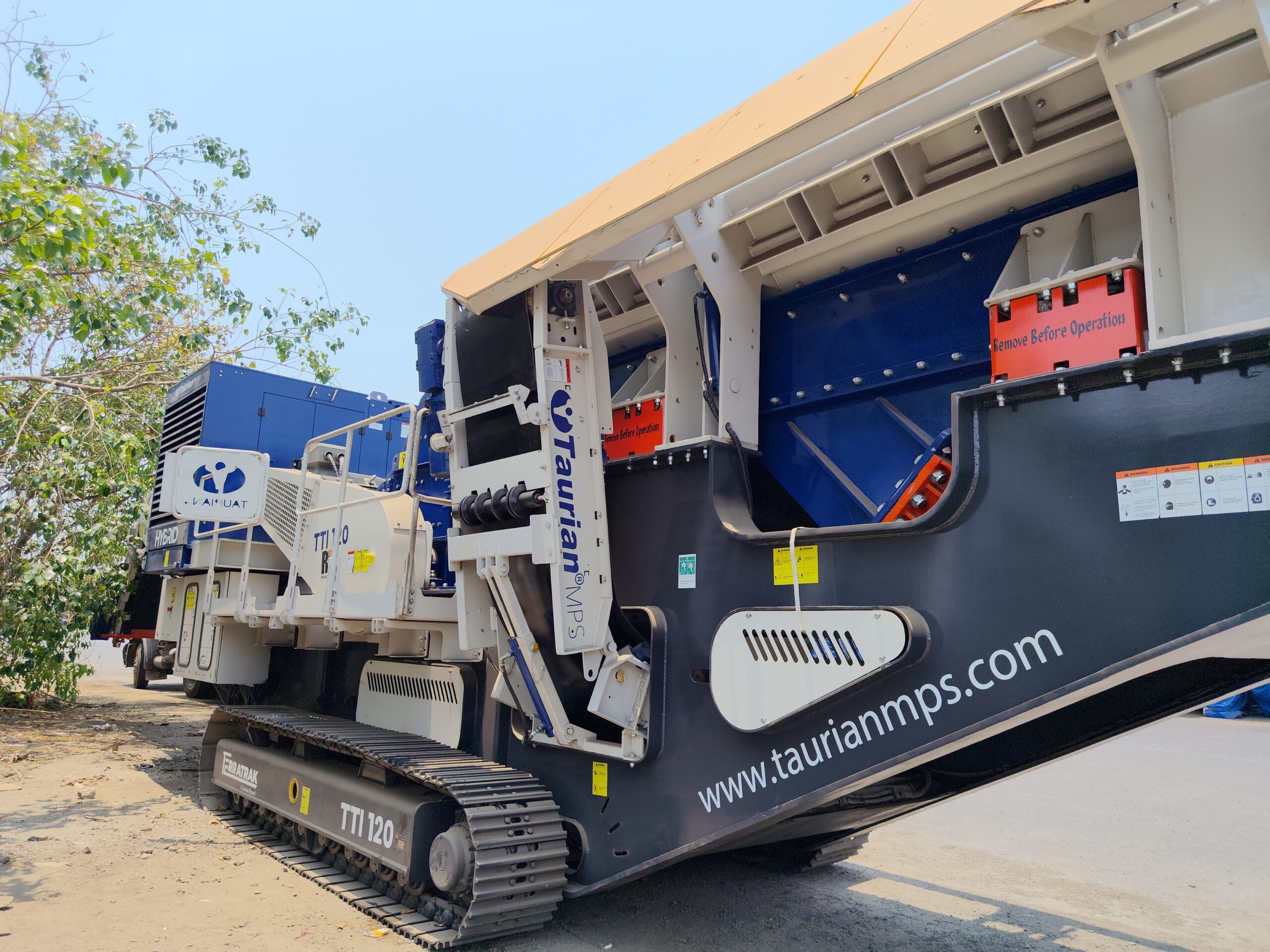

Product Gallery

Technical Specifications

Secondary Crusher (HSI)

Secondary Crusher (HSI)

Model	TI 1011S
Inlet opening (mm)	1130 × 800
Max feed size (mm)	450
Max throughput capacity (mtph)	100–150
Rotor diameter (mm)	1040
Rotor width (mm)	1100
Rotor speed range (m.s⁻¹)	27–44
Power (kW)	132
Basic crusher weight (kg)	9940

Downloads for Secondary HSI

Secondary Crusher (HSI)

English
pdf (5.74 MB)
Download

Case Study
