Circular Motion Screen

CMS

Heavy-Duty Screening for Demanding Loads

Taurian CMS is built for high-capacity material separation across every stage of crushing and screening. With its robust design, consistent motion, and high screening efficiency, it effortlessly handles tough materials while ensuring accurate sizing, minimal downtime, and simple maintenance across mining and aggregate applications.

  1. Home
  2. Products
  3. Screens
  4. CMS
CMS
Key Benefits

From harsh rock to fine sand

Engineered for long life, easy maintenance, and sharp screening accuracy.

CMS
Efficient Material Separation
Efficient Material Separation

Multiple deck configurations and adjustable angles deliver accurate gradation and optimized throughput.

Customizable for Any Operation
Customizable for Any Operation

Modular components and optional features fit diverse applications and material types.

Built for Durability
Built for Durability

Weld-free side plates and Huck-bolted frames withstand continuous heavy-duty operations.

Ease of Maintenance
Ease of Maintenance

Modular design with wide deck access and replaceable liners minimizes downtime.

Safe & Quiet Operations
Safe & Quiet Operations

Dust, noise, and vibration dampening features improve safety and operator comfort.

CMS
What We Offer

CMS Series™ – Consistent Motion. Clean Separation

Available in 2, 3, and 4-deck configurations, the CMS Series™ offers wide deck surfaces, modular media options, and adjustable stroke amplitude. Its bolted wear liners, easy-access drive systems, and low-maintenance bearings make it a dependable choice for primary, secondary, and final screening applications in demanding plant environments

cg shri balaji

Product Features

Engineered for safe, seamless operation—making screening simpler and more efficient.

(Cardan Shaft)

Dual Shaft Drive with Cardan Shaft Connection

CMS Series™ uses twin shaft lines connected by a cardan shaft for perfectly synchronized circular motion. This ensures uniform vibration, stable operation, and efficient screening across all decks—even under heavy loads.

Weld-Free Side Plate Design

It features precision-machined, weld-free side plates that eliminate stress concentrations caused by welding. This enhances fatigue resistance, improves structural stability, and extends the screen’s service life under continuous heavy-duty operation.

(Counter Weight)

Adjustable Counterweights for Stroke Control

With precision-engineered counterweights that allow stroke adjustments, the CMS Series™ screen enables operators to fine-tune vibration amplitude for different material types, maximizing screening efficiency and adapting to variable feed conditions.

(space for maintenance)

Increased Deck Clearance

CMS Series™ offers increased spacing between screen decks, allowing easier access for inspection, screen media changes, and routine maintenance. This design reduces downtime and improves safety during service in high-capacity screening operations.

Cardan Shaft Lines
Weld-Free Side Plates
Stroke Optimization
Easy Maintenance

Product Gallery

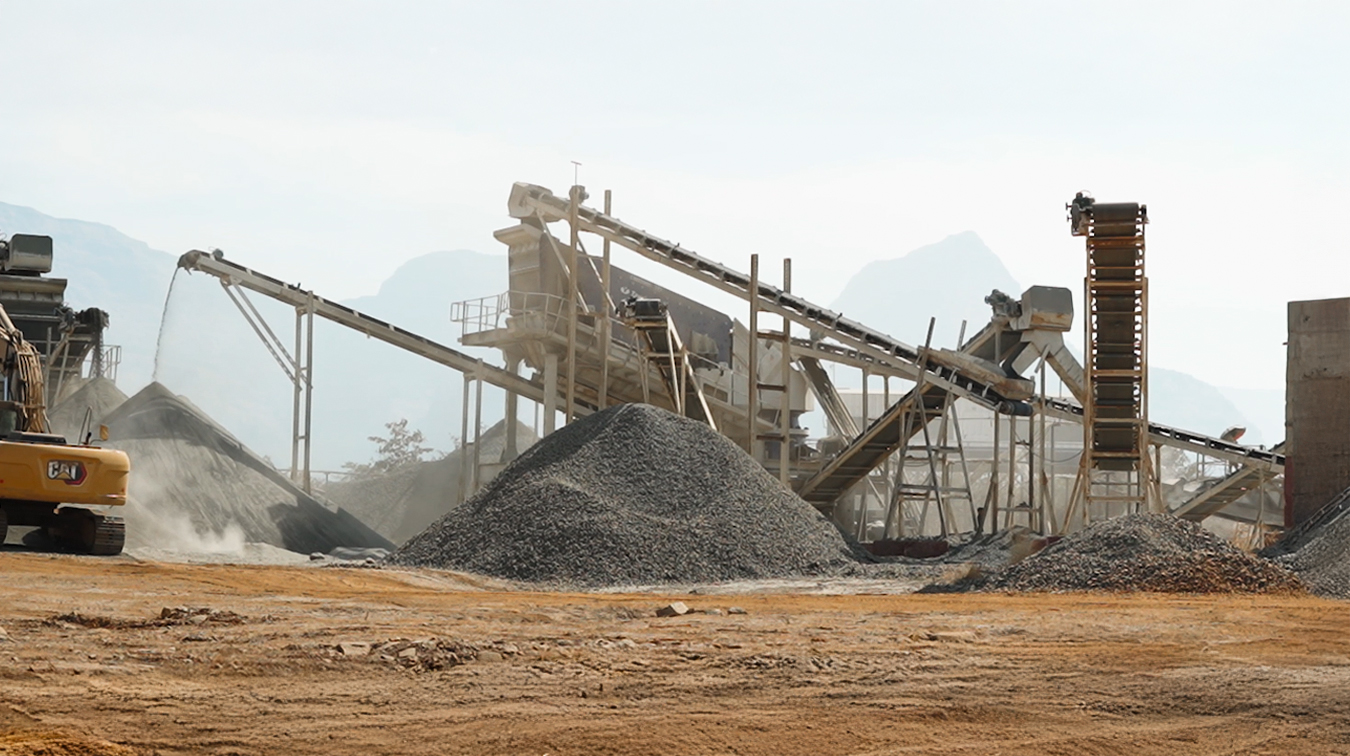

CMS 03

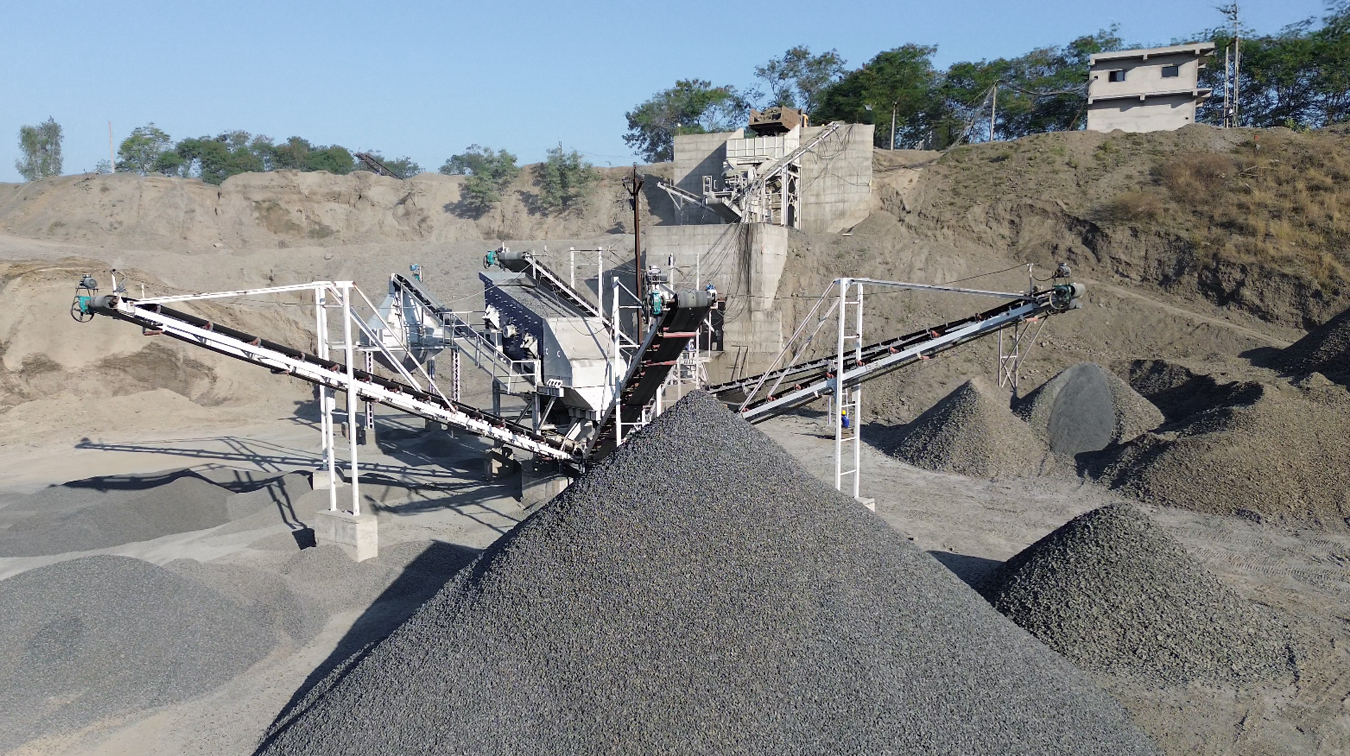

CMS 04

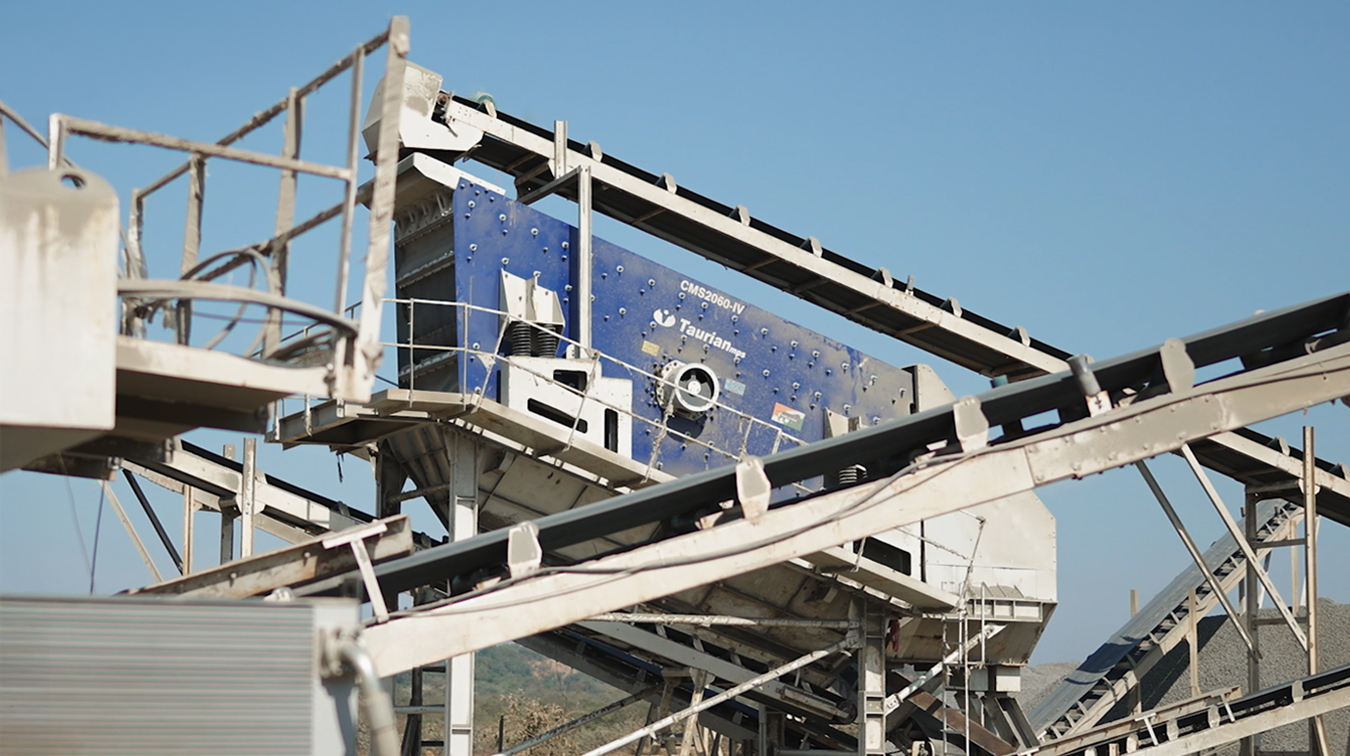

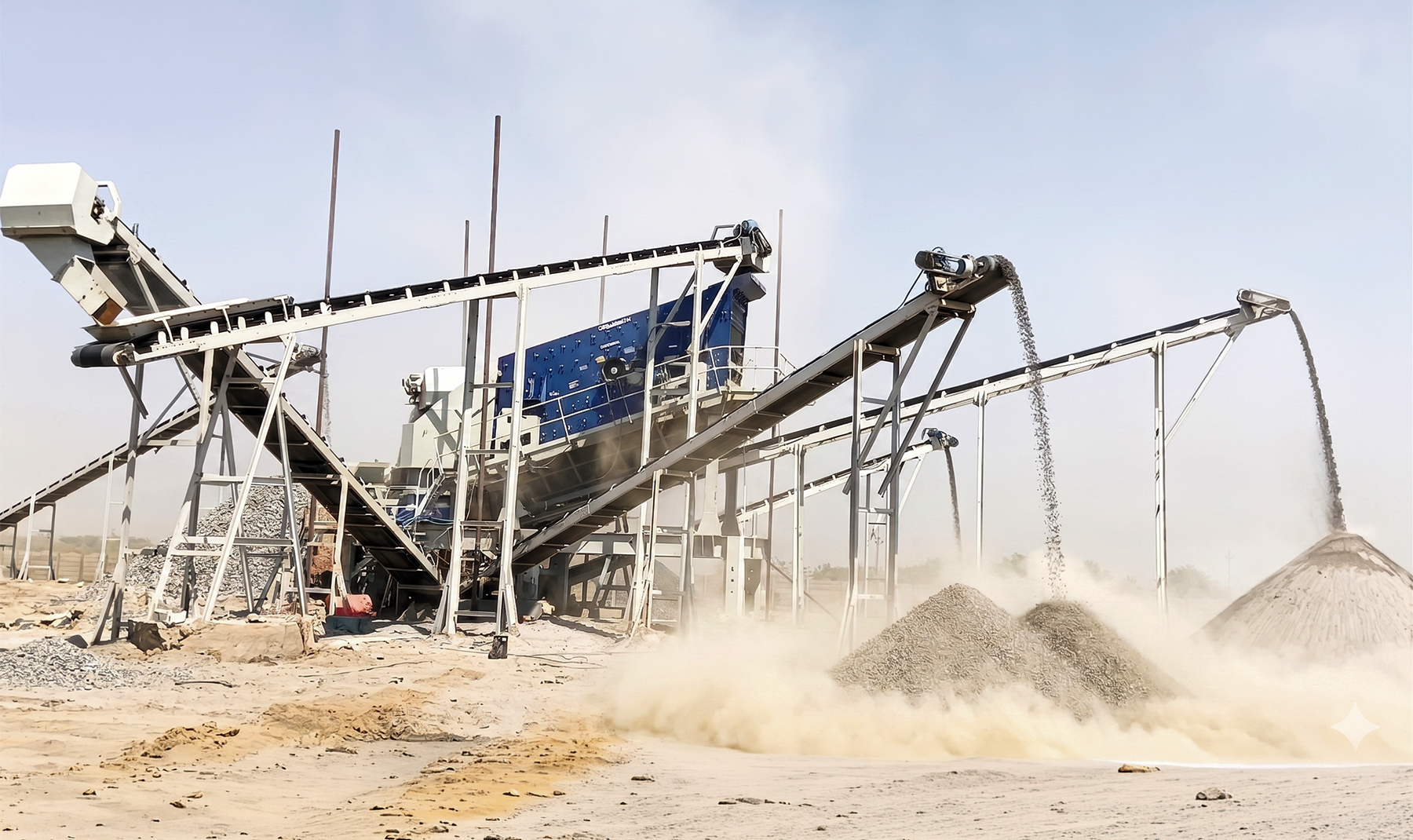

CMS 02
img cg web

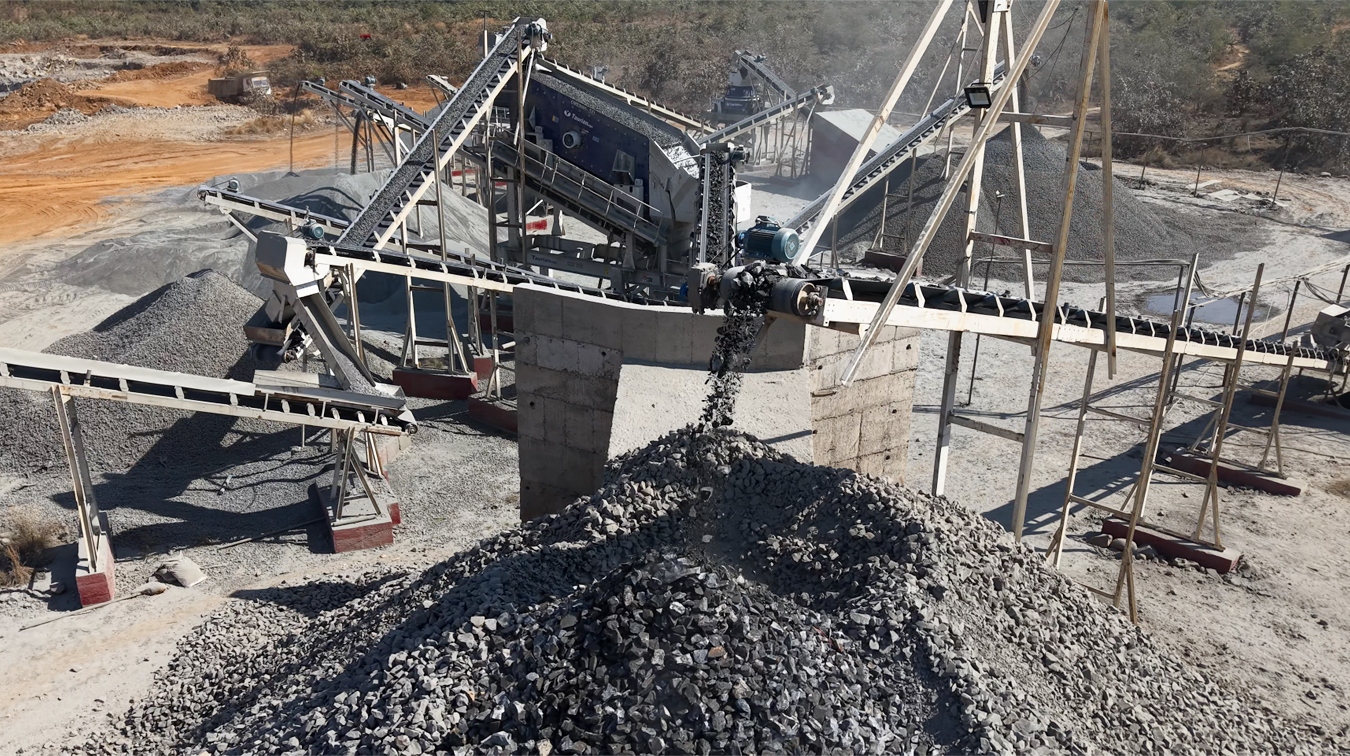

CMS 01
screen
IMG 20250207 WA0001
CMS 2
CMS SCREEN
CMS screen 1
img 1 crusher web
CMS SCREEN 11
CMS 7
CMS 6
CMS 5
CMS 3
CMS SCREEN 16
CMS SCREEN 13
CMS SCREEN 14
cms with cg screen web
CMS SCREEN 12
img 5 TT web
CMS 03
CMS 04
CMS 02
img cg web
CMS 01
screen
CMS 3
IMG 20250207 WA0001
Sequence 01_22
CMS 2
Exif_JPEG_420
CMS SCREEN
Sequence 01_309
CMS screen 1
img 1 crusher web
CMS SCREEN 11
CMS 7
CMS 6
CMS 5
CMS 3
CMS SCREEN 16
CMS SCREEN 13
CMS SCREEN 14
cms with cg screen web
CMS SCREEN 12
Parbhani CG Screen
img 5 TT web

Technical Specifications

CMS SERIES
ModelScreen SizeScreening AreaNo. of DecksCapacityPowerWeight
CMS 1530-I1500 × 3000 mm4.5 m²1125 TPH11 kW1300 kg
CMS 1540-I1500 × 4000 mm6 m²1150 TPH11 kW1400 kg
CMS 1540-II1500 × 4000 mm6 m²2225 TPH15 kW3150 kg
CMS 1540-III1500 × 4000 mm6 m²3225 TPH15 kW4050 kg
CMS 1540-IV1500 × 4000 mm6 m²4255 TPH15 kW5000 kg
CMS 1850-II1800 × 5000 mm9 m²2325 TPH15 kW4200 kg
CMS 1850-III1800 × 5000 mm9 m²3325 TPH15 kW5200 kg
CMS 1850-IV1800 × 5000 mm9 m²4325 TPH15 kW6800 kg
CMS 2060-II2000 × 6000 mm12 m²2425 TPH22 kW6500 kg
CMS 2060-III2000 × 6000 mm12 m²3425 TPH22 kW8500 kg
CMS 2060-IV2000 × 6000 mm12 m²4425 TPH30 kW10400 kg
CMS 2461-II2400 × 6100 mm14.6 m²2525 TPH30 kW8400 kg
CMS 2461-III2400 × 6100 mm14.6 m²3525 TPH30 kW10500 kg
CMS 2461-IV2400 × 6100 mm14.6 m²4525 TPH45 kW13000 kg
