Cone Crusher

CG Series™ Cone Crusher

Floating Shaft Design for Optimized Secondary and Tertiary Crushing

The Taurian CG Series™ Cone Crusher is designed for high-efficiency secondary and tertiary crushing in mining and quarrying. Featuring a hydraulic piston-mounted floating shaft, it offers excellent adaptability, consistent performance, and reduced operating costs. Its advanced design ensures reliable output, making it a smart, cost-effective choice for demanding applications.

Key Benefits

Efficient and Versatile Crushing for Demanding Applications

High-Efficiency Crushing Powered by Roller Bearing Technology

What We Offer

When uptime and quality matter, choose CG Series™

Designed for secondary and tertiary crushing, the CG Series™ Cone Crusher delivers consistent output and high throughput. Crushing takes place between the concaves and a mantle-driven cone, powered by an eccentric drive. A hydraulic piston supports the main shaft and adjusts the CSS precisely. With no backing material required, liner changes are quick, and built-in hydraulic relief ensures overload protection and reduced downtime.

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

Floating Shaft Design for Enhanced Performance

The CG Series™ uses a floating shaft for optimal mantle-concave alignment, improving crushing force and shock absorption. This design enables higher speeds, greater throughput, and better protection from the uncrushables —delivering efficient, reliable performance with reduced downtime and longer wear life.

Detachable Body for Easy Maintenance

The CG Series™ cone crusher comes with a detachable body design that simplifies maintenance and transportation. It allows easy access to internal components, speeding up inspections and liner changes. This modular construction also reduces downtime and makes on-site assembly and service more convenient and cost-effective.

Optimized Cavity Profiles for Every Application

The CG Series™ cone crusher offers a wide range of cavity profiles to suit various materials and operating conditions. Our team helps select the ideal chamber and alloy for optimal performance. The right profile boosts output, extends wear life, reduces downtime, and improves safety during liner changes with optional lifting tools.

Hydraulic CSS Control for Consistent Output

The CG Series™ cone crusher allows quick, hydraulic Closed Side Setting (CSS) adjustments for precise control over product size. This enhances crushing efficiency, ensures consistent output, and reduces downtime—helping operators optimize performance across changing feed conditions with minimal interruption.

Floating Shaft

Detachable Body

Versatile Cavity Profiles

CSS Setting

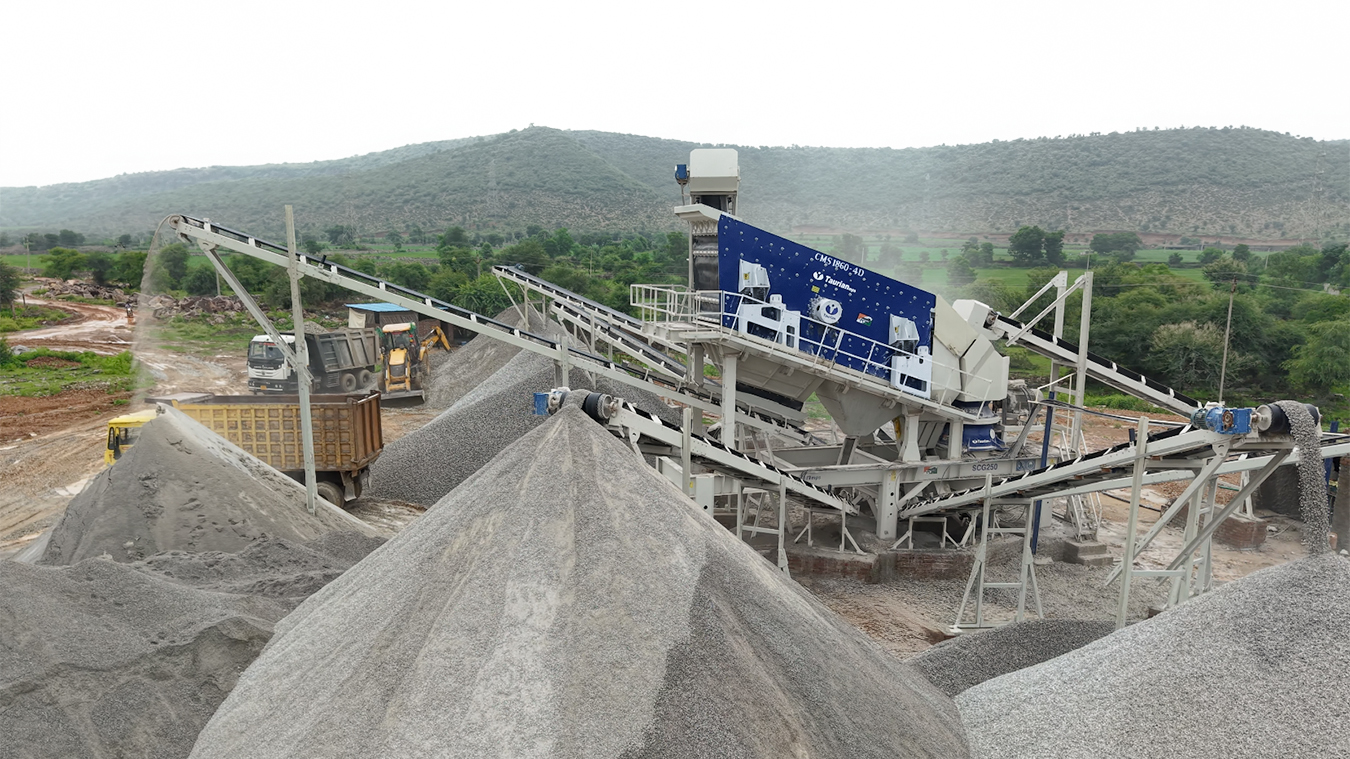

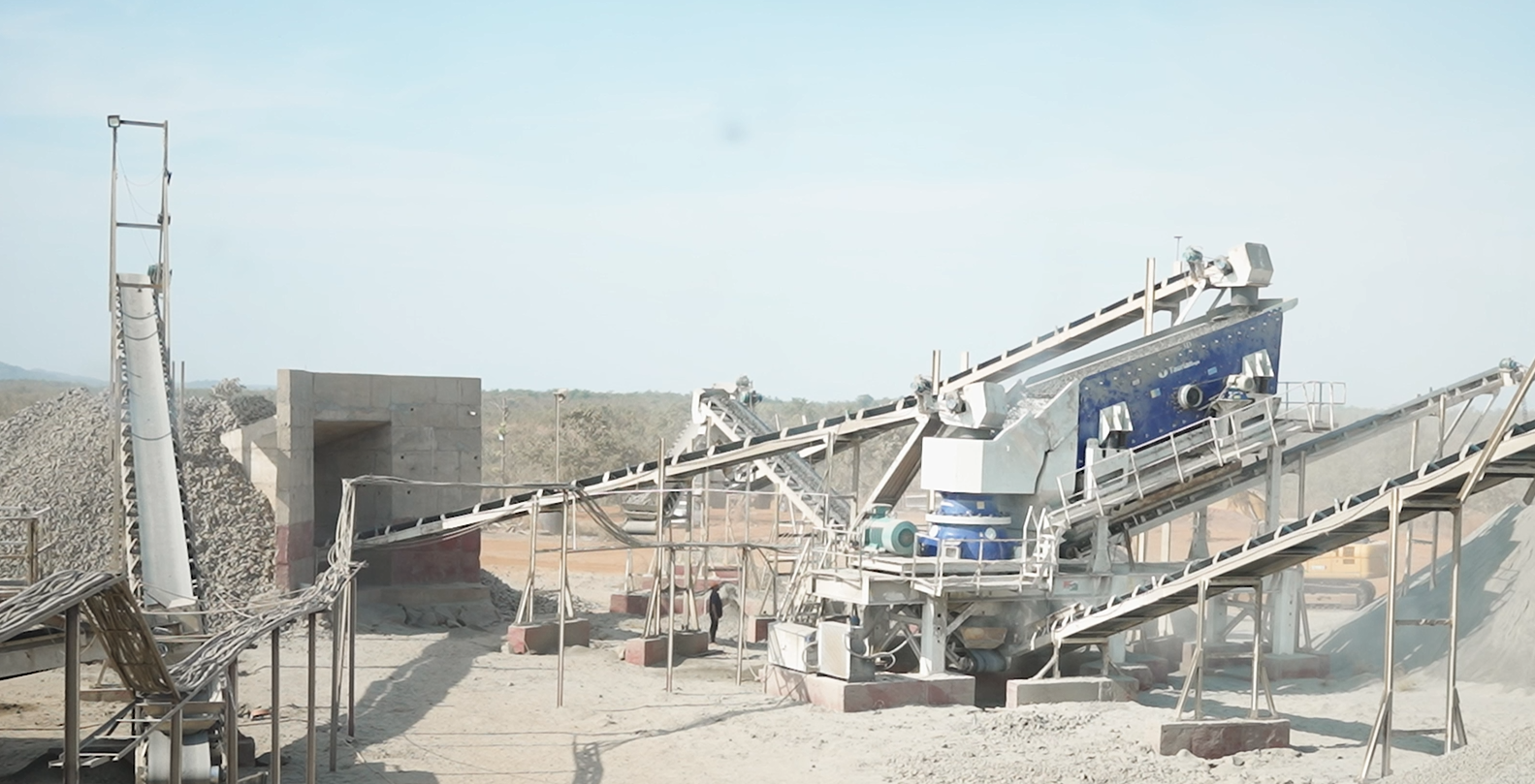

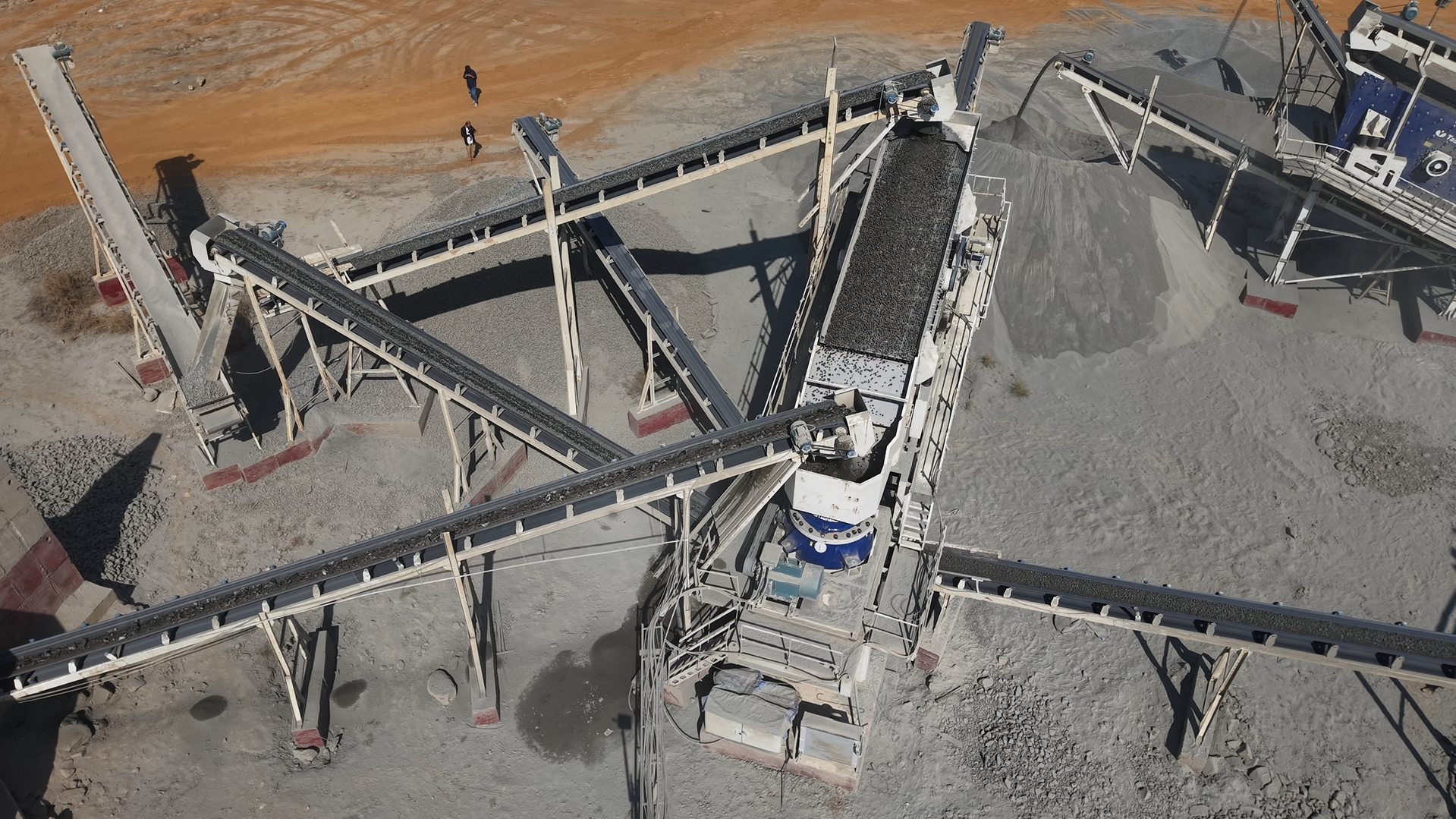

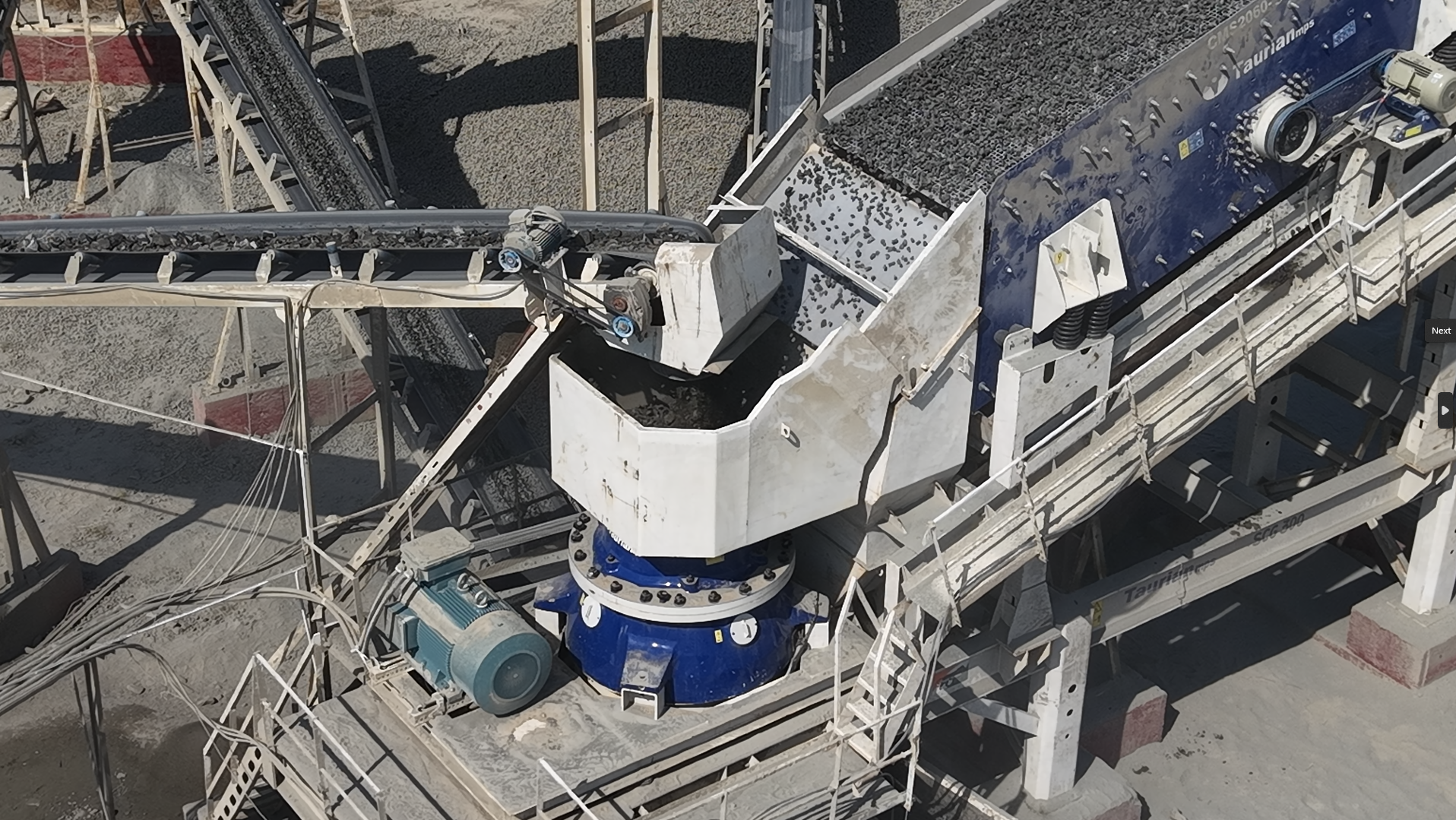

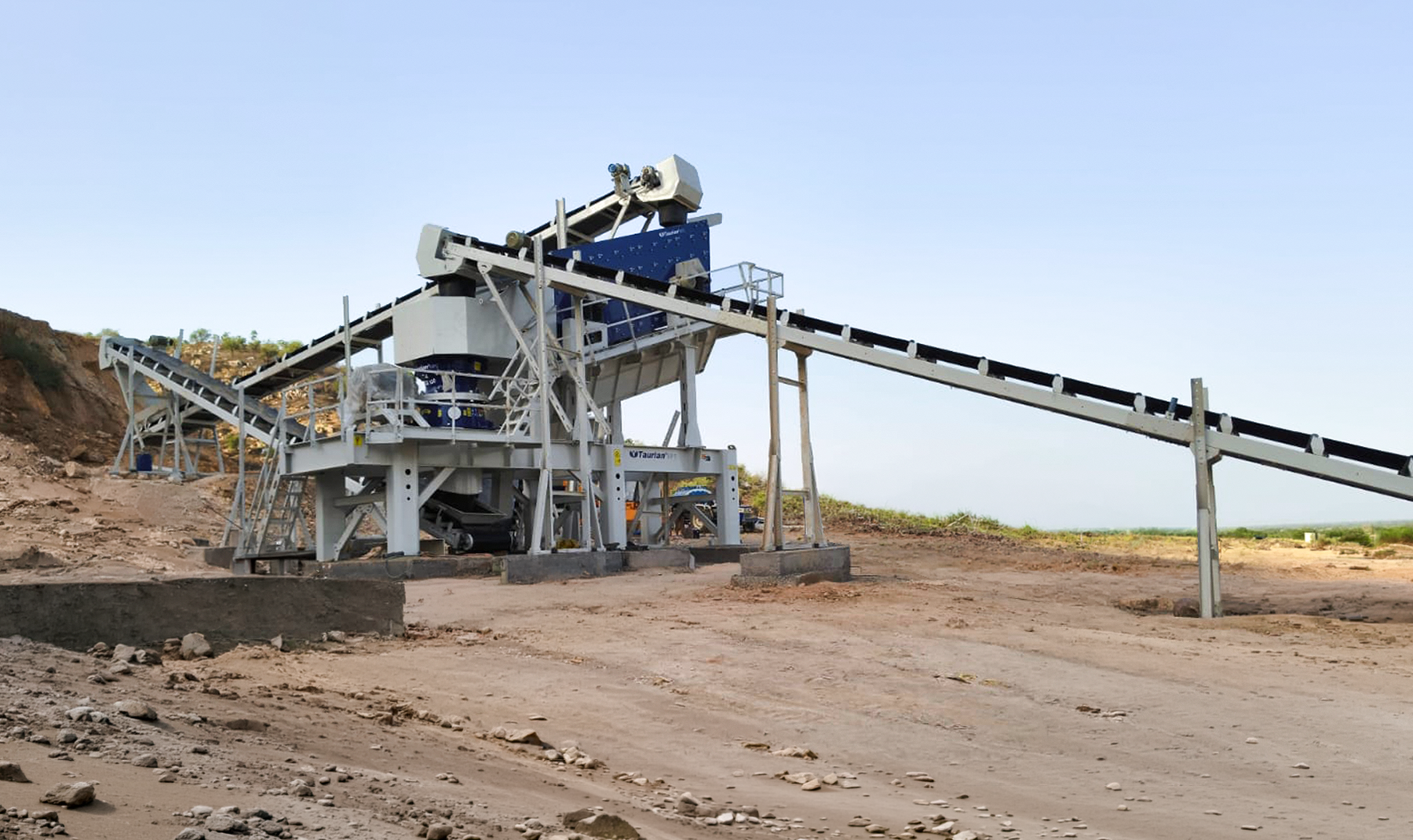

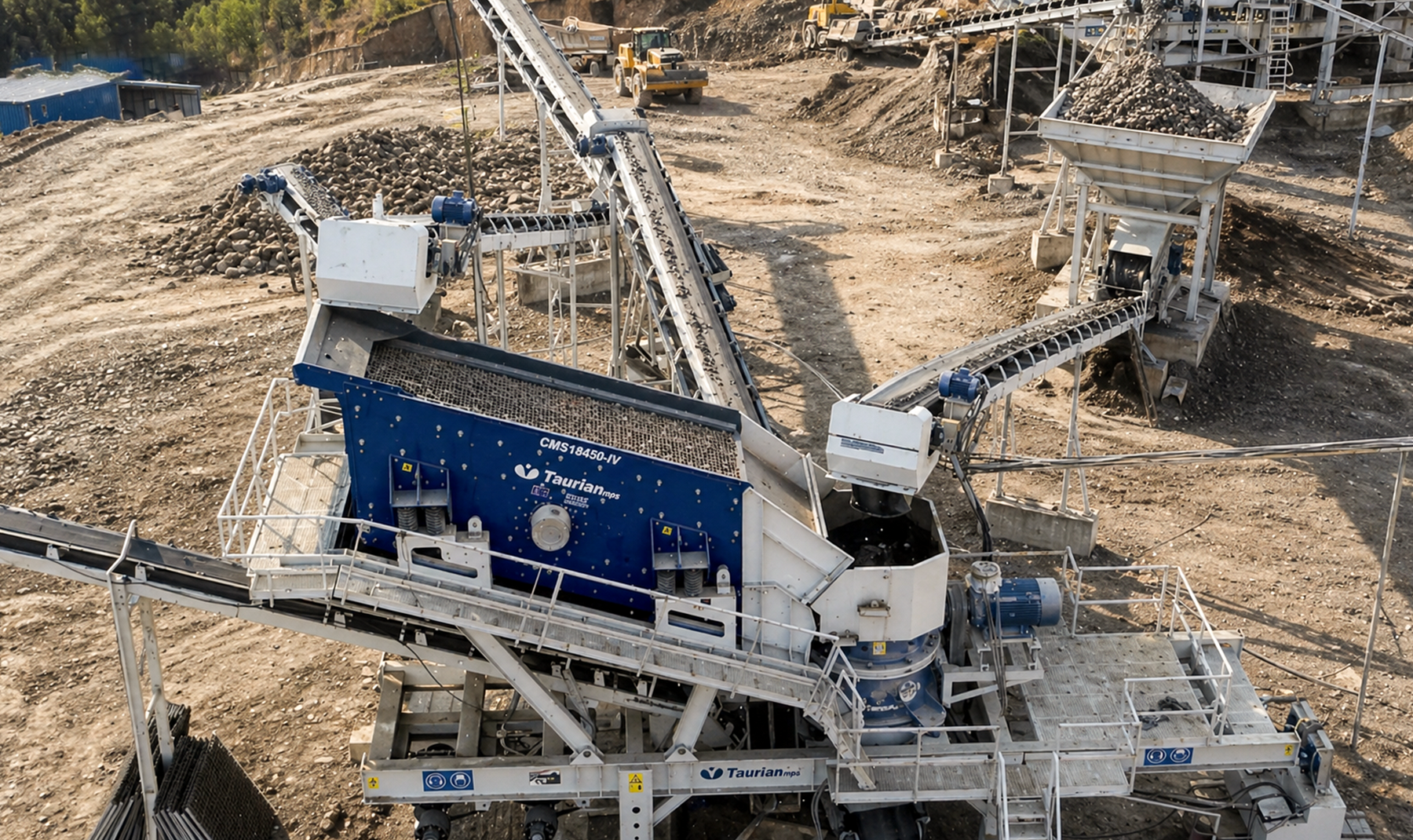

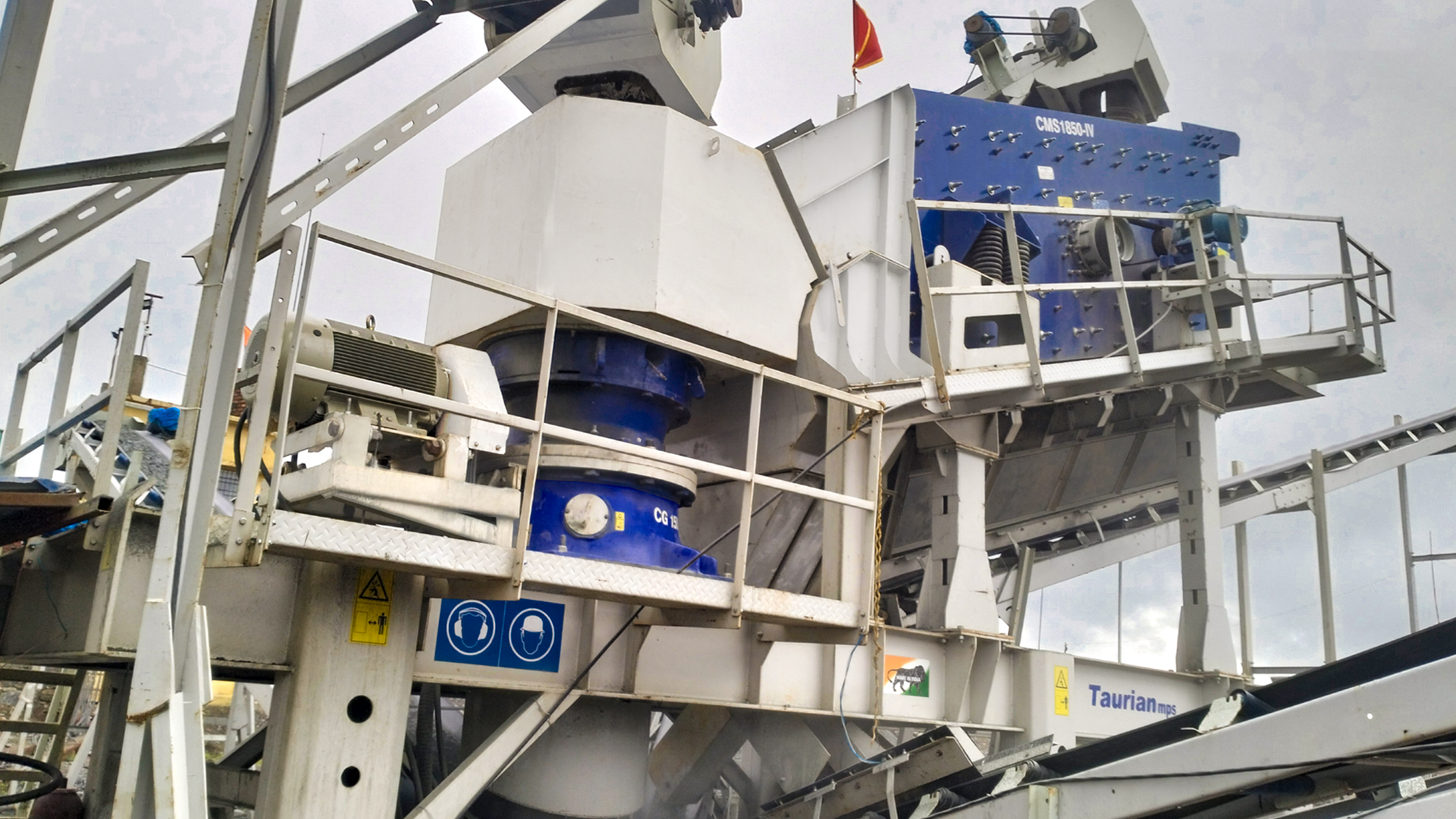

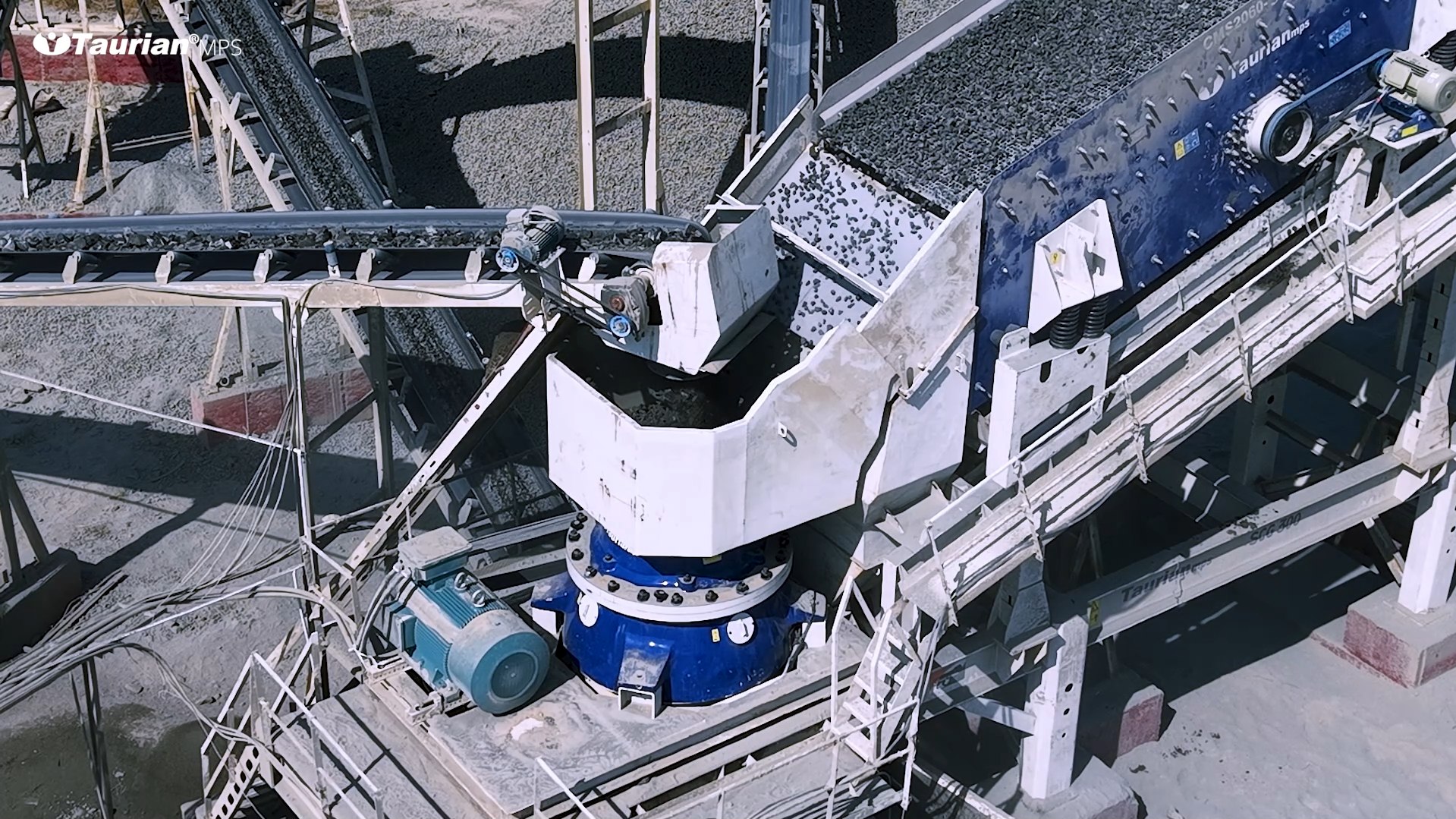

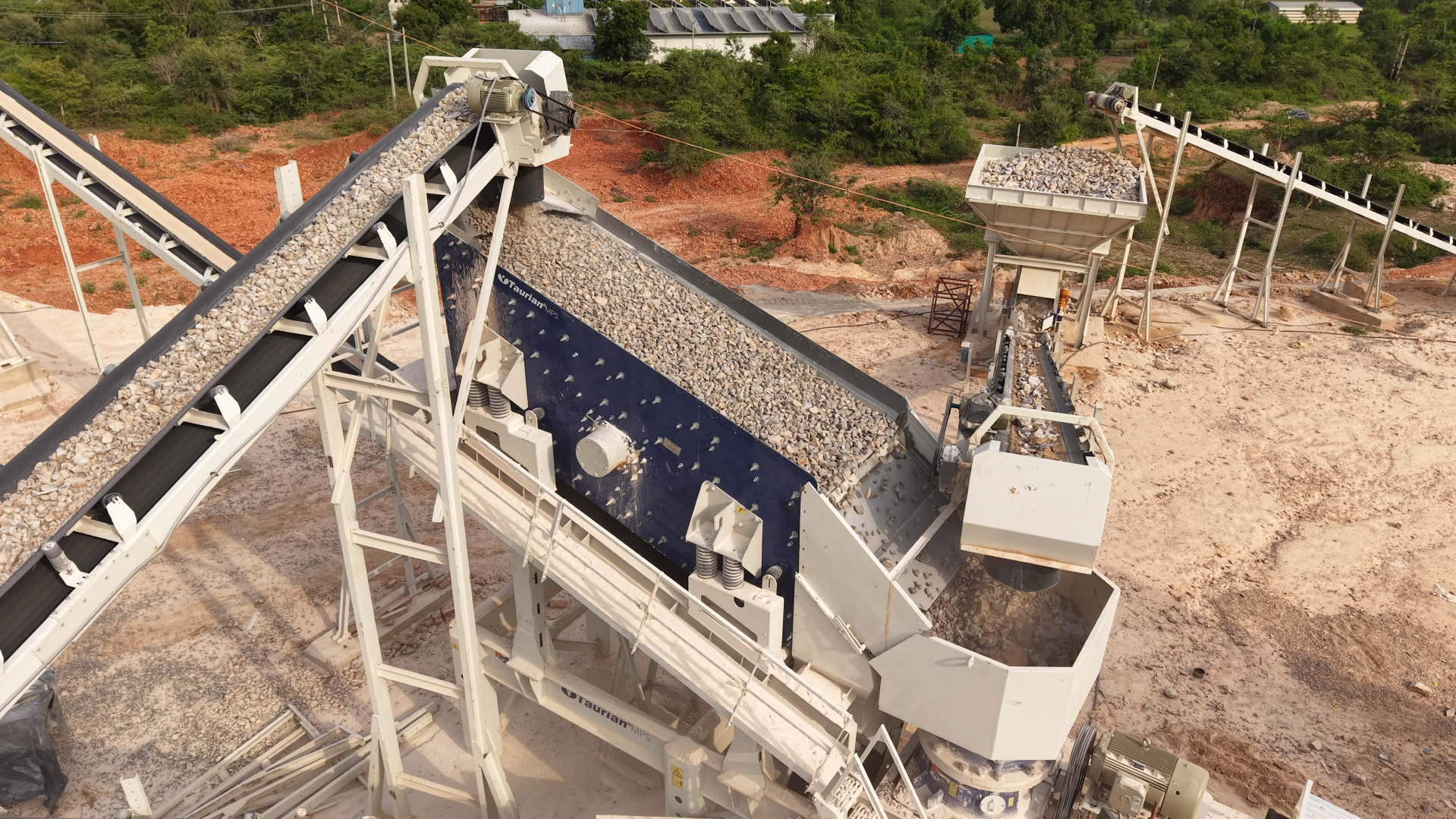

Product Gallery

Technical Specifications

CG Secondary
CG Versatile

CG Secondary

Model	Total weight, kg	Motor size, kW	Stroke Options	8 mm*	10 mm*	15 mm	20 mm	25 mm	30 mm	35 mm	40 mm
CG100	5800	75-90	16	40-50	45-55	60-70	80-90	85-95
			20	50-55	50-60	70-80	95-105
			25		55-65	75-90	105-120
CG200	10700	130-160	20	80-100	85-105	105-125	120-145	150-170	170-190
			25		100-120	130-150	160-180	180-210
			30			160-180	190-210	210-230
CG300	13400	200-250	25	100-120	110-130	135-155	160-180	190-210	210-235	240-260
			32	110-130	120-150	165-195	195-225	230-260	265-295	300-330
			40		150-170	205-235	245-275	290-320	325-355
CG500	26500	300-400	25		140-160	160-180	190-210	240-260	270-290	310-330	350-370
			32			230-250	270-290	310-330	340-370	380-410	430-450
			36			290-310	320-340	380-410	430-460	480-510	530-580

CG Versatile

Model	Total weight, kg	Motor size, kW	Stroke Options	20 mm	25 mm	30 mm	35 mm	40 mm	45 mm	50 mm
CG150	7350	75-90	16	80-90	105-115	120-130	135-145	145-165	155-175
			20		120-130	145-155	160-180	170-200	185-215
			25			185-195	200-220	210-230
CG250	11900	110-160	18		110-140	140-170	160-190	180-210	200-230	230-260
			25			170-220	190-240	210-260	230-280
			32				230-280	270-320	280-350
CG350	16200	132-250	18		170-190	170-210	190-230	210-255	235-275	255-295
			25			220-270	255-315	290-345	320-350	330-350
			32				360-400	380-420	400-440
			40					450-500	480-530
