Jaw Crusher

TJF Series™ Jaw Crusher

Unshakable Strength. Unmatched Output.

The Taurian TJF Series™ Jaw Crusher delivers high-capacity primary crushing in demanding conditions. Featuring a precision-balanced flywheel, deep chamber, and rugged welded frame, it ensures smooth operation, durability, and consistent output—ideal for mining, aggregates, and infrastructure applications that demand reliable, long-term performance.

Key Benefits

Jaw TJF : Handles Your Toughest Feed Daily

Unmatched Durability Meets Heavy-Duty Crushing Power

What We Offer

Taurian TJF Series™ – One Body. Endless Strength.

It is purpose-built for heavy-duty primary crushing of hard, abrasive materials like iron ore, basalt, and granite. Its non-bolted, fully welded body eliminates stress points common in bolted-frame designs, ensuring maximum structural integrity, vibration resistance, and long-term durability in extreme operating conditions. A deep, aggressive crushing chamber with an optimized nip angle delivers better feed penetration, reduced bridging, and high reduction ratios

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

Non-Bolted, Fully Welded Body

The TJF Series™ Jaw features a non-bolted, fully welded body that offers superior structural rigidity and fatigue resistance. This monolithic design eliminates bolted joints, minimizing stress concentrations and vibration-related failures—making it ideal for high-impact, continuous-duty applications in mining, aggregates, and hard rock primary crushing.

Deep Crushing Chamber

The deep cavity design maximizes feed capacity and facilitates consistent reduction ratios across varying material sizes. This results in improved productivity and uniform product shape.

Easy CSS Adjustment

Equipped with mechanical or optional hydraulic wedge adjustment for changing the Closed Side Setting (CSS) quickly and accurately—minimizing downtime and enabling product size control on the fly.

Aggressive Nip Angle

Designed with an optimized jaw nip angle to ensure better bite on large feed material. The steep angle improves crushing force and throughput, even with hard or abrasive rock types.

Non-Bolted

Deep Crushing Chamber

Easy CSS Adjustment

Aggressive Nip Angle

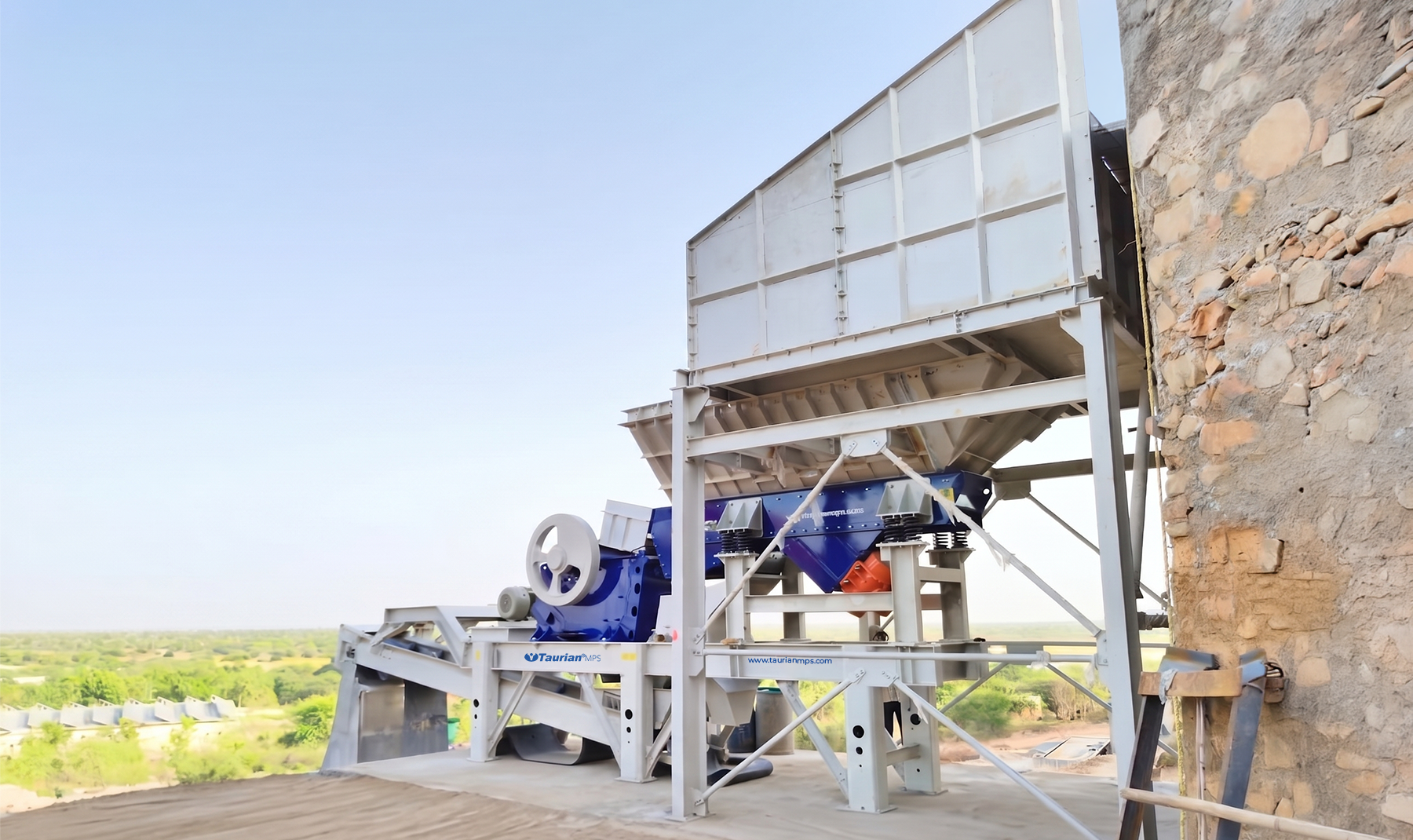

Product Gallery

Technical Specifiactions

Power & Weight
Capacities & CSS

Power & Weight

Model	TJF 100	TJF 150	TJF 200	TJF 300	TJF 350	TJF 400	TJF 500
Feed opening	1100 × 700 mm	895 × 660 mm	1045 × 840 mm	1200 × 830 mm	1200 × 1100 mm	1300 × 1130 mm	1500 × 1070 mm
Max feed size	630 mm	600 mm	750 mm	750 mm	990 mm	1070 mm	960 mm
Capacity	110–490 TPH	85–320 TPH	150–565 TPH	165–790 TPH	300–805 TPH	330–960 TPH	385–1085 TPH
CSS range	60–200 mm	50–175 mm	75–225 mm	75–275 mm	125–275 mm	125–300 mm	125–300 mm
Speed	270 rpm	270 rpm	240 rpm	240 rpm	210 rpm	225 rpm	200 rpm
Motor	90 kW	75 kW	110 kW	132 kW	160 kW	160 kW	200 kW
Weight	14300 Kg	13200 Kg	20600 Kg	25200 Kg	39000 Kg	41500 Kg	53000 Kg

Capacities & CSS

Model	TJF 100	TJF 150	TJF 200	TJF 300	TJF 350	TJF 400	TJF 500
Product size (mm)	CSS (mm)	TPH	TPH	TPH	TPH	TPH	TPH
0–50	50	85–115	–	–	–	–	–
0–60	60	110–160	–	–	–	–	–
0–75	75	127–192	100–160	150–200	165–220	–	–
0–100	100	160–250	125–200	200–265	220–290	–	–
0–125	125	195–310	150–235	245–325	270–355	300–395	330–430
0–150	150	230–370	175–275	295–390	325–430	355–465	385–505
0–175	175	265–430	200–320	340–445	385–505	405–530	440–575
0–200	200	300–490	–	385–505	445–580	455–595	495–650
0–225	225	–	–	430–565	495–650	505–660	550–730
0–250	250	–	–	–	550–720	560–735	605–810
0–275	275	–	–	–	605–790	610–805	660–885
0–300	300	–	–	–	–	–	715–960

Downloads for TJF Series™ Jaw Crusher

TJF Series™ Jaw Crusher

English
pdf (24.46 MB)
Download
