Vertical Shaft Impactor

T Series™ VSI Crusher

VSI

High-Speed Impact. Perfectly Shaped Results.

The Taurian Vertical Shaft Impact (VSI) Crusher delivers precision shaping through its rock-on-rock crushing technology. Ideal for tertiary and quaternary stages, it produces finely graded, cubical end products with exceptional consistency. Designed for high-speed impact and minimal wear, it’s the go-to solution for premium sand and aggregate production.

  1. Home
  2. Products
  3. Crushers
  4. VSI Crusher
VSI
Key Benefits

Sharper shape, superior sand.

Precision crushing for the perfect finish—every time!

Crushers VSI
Lower Operating Costs
Lower Operating Costs

Designed for energy efficiency, the Taurian T-Series VSI reduces power consumption and extends wear part life. In some cases, wear part lives have increased by up to 50%, leading to lower maintenance costs and higher crusher availability.

User-Friendly Maintenance
User-Friendly Maintenance

The VSI’s large feed hopper provides ample space for staff to work in while servicing. For more involved jobs, the roof lifter and service door provide easy internal access. We also provide a simple feed tube replacement system with automatic realignment after servicing. This allows for quick and easy replacement of wear and spare parts, simplifying maintenance, minimising downtime and ensuring continuous operation.

Increased Crushing Capacity
Increased Crushing Capacity

The deep rotor technology dramatically boosts throughput and reduces downtime. The design also allows for higher material clearance within the rotor, resulting in a denser particle population with a greater number of collisions, and has been shown to boost product throughput by up to 30%.

High-Quality End Products
High-Quality End Products

The rock-on-rock crushing technique enhances the shape and soundness of the aggregate while reducing product moisture, resulting in superior cubical product. The distribution plate controls material flow to ensure precise grading, while variable rotor speeds maximise or minimise fine production as needed.

Crushers VSI
What We Offer

High-speed impact. Perfect shape.

The Taurian T Series™ VSI uses rock-on-rock crushing for superior shaping and reduced wear. High-speed material impact produces fine, cubical output ideal for sand and industrial minerals. The autogenous process lowers metal contact and wear rates. With adjustable rotor speeds for precise grading, it ensures consistent output, low operating costs, and high uptime—perfect for tertiary and quaternary applications.

VSI (1)

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

Cascade adjustment 1

Cascade Adjustment for Particle Control

The Taurian T Series™ VSI features an adjustable cascade system that lets you control the flow of material outside the rotor. By fine-tuning cascade feed, you can optimize particle shape, reduce wear, and balance throughput—offering better control over gradation and overall crushing efficiency.

Hydraulic lid

Hydraulic Lid for Easy Access

The Taurian T Series™ VSI comes with a hydraulic lid opening system that allows fast, safe, and effortless access to the crushing chamber. This simplifies routine inspections, rotor maintenance, and wear part replacement—reducing downtime, improving safety, and making service faster and more efficient

rotor

Variable Rotor RPM for Grading Control

The Taurian T Series™ VSI allows rotor speed adjustments to fine-tune output. Higher RPMs produce more fines, while lower RPMs generate coarser material. This flexibility offers precise control over product grading, making it ideal for diverse applications and consistently high-quality end products.

replacable rotor tips1

Replaceable Rotor Tips for Reduced Wear Costs

The Taurian T Series™ VSI features easily replaceable rotor tips made from wear-resistant materials. Designed for fast replacement without dismantling the rotor, they extend service life, lower operating costs, and ensure consistent crushing efficiency—even in abrasive applications like manufactured sand and industrial minerals.

Adjustable Cascade Port
Hydraulic Lid
Rotor RPM
Replaceable Rotor Tips

Product Gallery

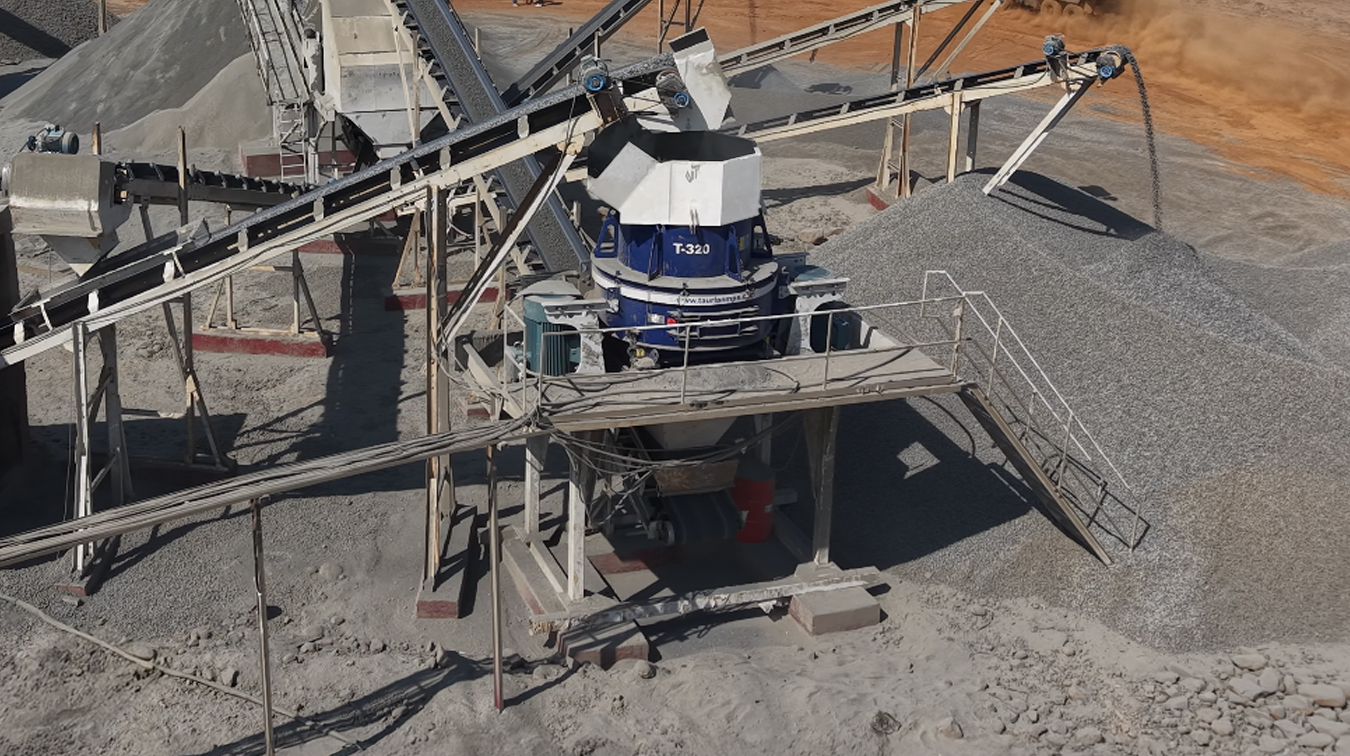

VSI 02

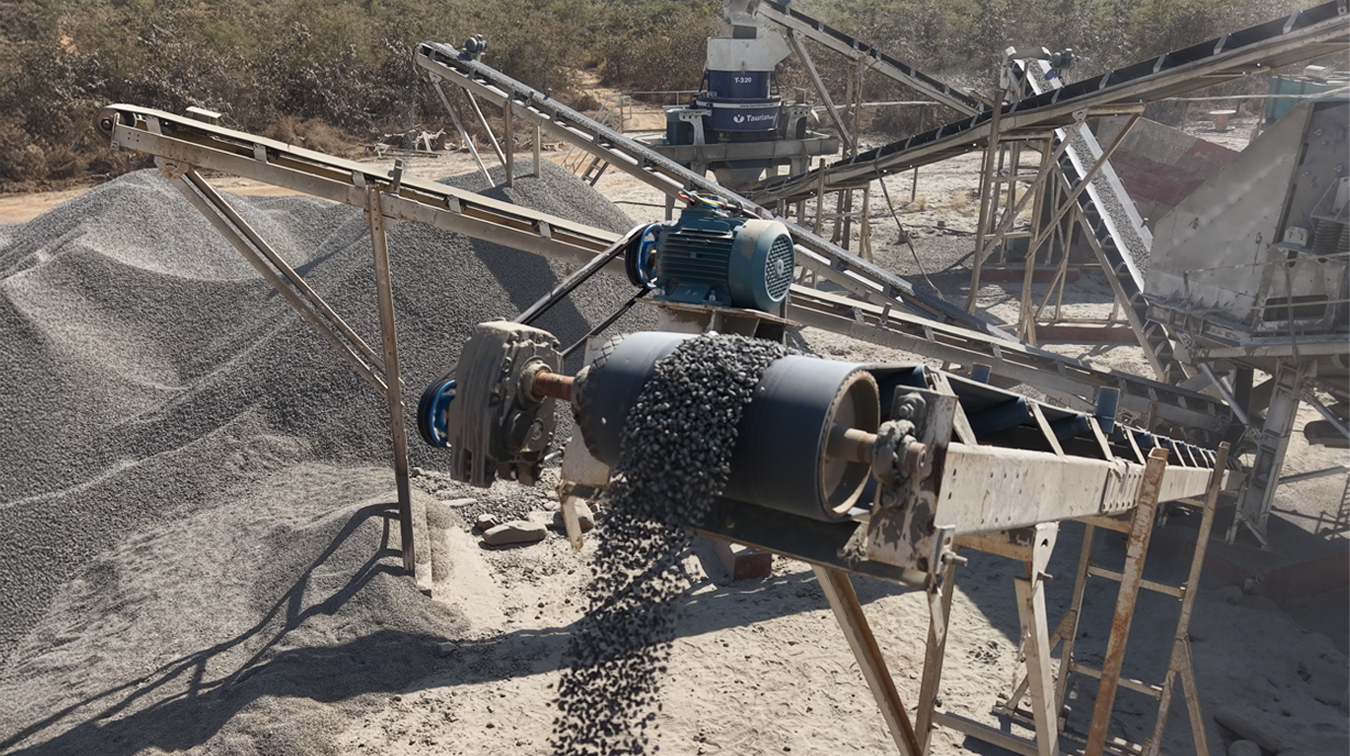

VSI 01
VSI 6
VSI 5

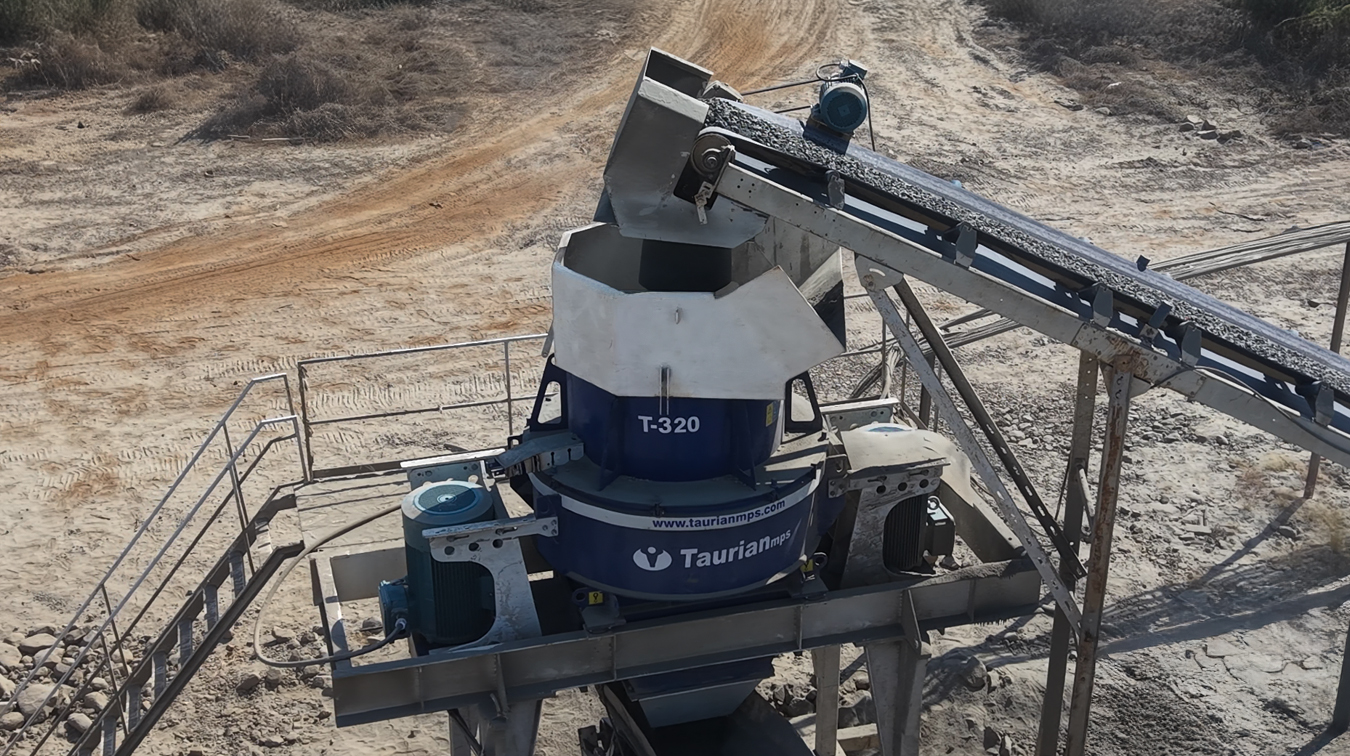

VSI 03
VSI 6
img 5 TT web
VSI 4
VSI
img 1 crusher web
VSI Bauma
VSI (8)
VSI (7)
VSI (6)
VSI (5)
VSI (4)
VSI (3)
VSI (2)
VSI (1)
VSI 02
Sequence 010
VSI 01
VSI 6
VSI 5
VSI 03
Sequence 025
VSI 6
img 5 TT web
VSI 4
VSI
img 1 crusher web
VSI Bauma
Sequence 023
VSI (8)
VSI (7)
VSI (6)
VSI (5)
VSI (4)
VSI (3)
Screenshot 2025 05 28 180657
VSI (2)
VSI (1)

Technical Specifications

Dimensions & Capacities
ModelLight T-Series VSIHeavy T-Series VSIMega T-Series VSI
T 75T 110T 150T-185T-220T-320T-370T-440T-600
Max feed size25–27 mm25–27 mm25–27 mm37–40 mm37–40 mm37–40 mm45–55 mm45–55 mm45–55 mm
Rotor diameter690 mm690 mm690 mm880 mm880 mm880 mm990 mm990 mm990 mm
Rotor speed1500–2500 rpm1500–2500 rpm1500–2500 rpm1100–2100 rpm1100–2100 rpm1100–2100 rpm1000–1800 rpm1000–1800 rpm1000–1800 rpm
Motor1 × 75 kW1 × 110 kW1 × 150 kW1 × 185 kW1 × 220 kW2 × 160 kW2 × 185 kW2 × 220 kW2 × 300 kW
Weight6371 kg6371 kg6371 kg12395 kg12395 kg12395 kg14357 kg14357 kg14357 kg
Capacity (TPH)Capacity (TPH)Capacity (TPH)
General crushing60–10366–168100–217125–298150–378200–545263–629315–725420–775
Shaping60–10366–168100–217125–298150–378200–545263–629315–725420–775
Fines60–9266–151100–193125–265150–332200–465263–554315–725420–775

Downloads for VSI Crusher

T Series™ VSI
