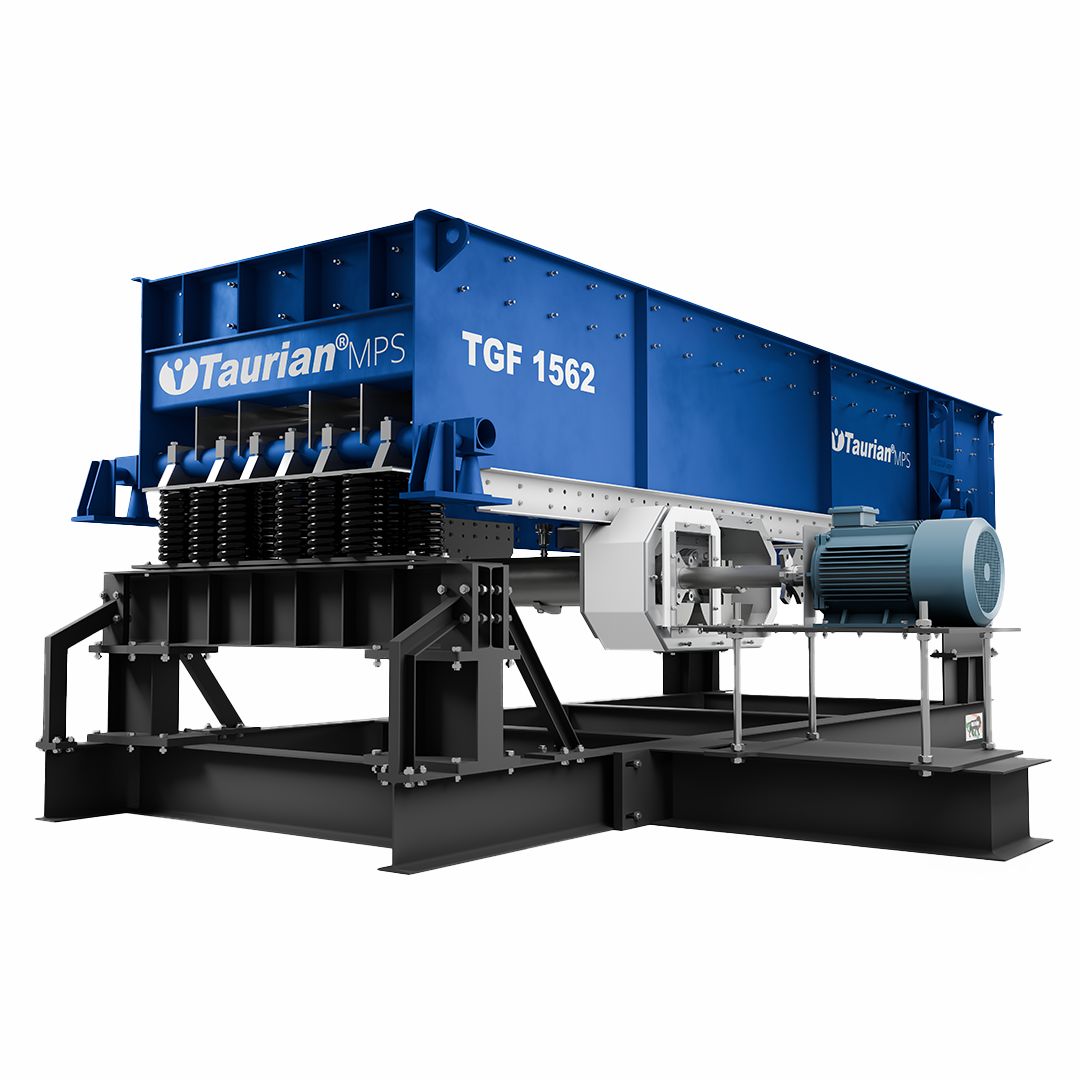

Electric grizzly feeder 1080×1080

The First Step to Handling Difficult Material

Taurian Electric Grizzly Feeders deliver a controlled, continuous flow of material to the primary crusher while efficiently scalping out fines. Powered by robust electric motors, they combine low operating costs with reliable performance. This dual-action design reduces crusher load, minimizes liner wear, and optimizes energy efficiency. Ideal for heavy-duty applications, the electric grizzly ensures smoother operation, higher throughput, and long-term reliability — setting the foundation for efficient primary crushing.

  1. Home
  2. Products
  3. Feeders
  4. Grizzly Feeder (Electric)
Electric grizzly feeder 1080×1080
Key Benefits

Efficient and Versatile Crushing for Demanding Applications

High-Efficiency Crushing Powered by Roller Bearing Technology

Electric grizzly feeder 1080×1080
Handles Large Feed Sizes
Handles Large Feed Sizes

Models designed to process feed up to 1500 mm in size, ensuring compatibility with boulder-sized material.

Efficient Fines Removal
Efficient Fines Removal

Grizzly bars with 2–6 inch spacing allow fines to bypass the crusher, increasing overall plant efficiency.

Durable Under Heavy Load
Durable Under Heavy Load

Reinforced feed pans and high-strength steel components withstand heavy shock and abrasion.

Reliable Operation
Reliable Operation

Vibration drives offer consistent amplitude and frequency for smooth material handling.

Lower Maintenance
Lower Maintenance

Wear-resistant liners, protected bearings, and simple structure reduce servicing downtime and costs.

Customizable Configurations
Customizable Configurations

Multiple size options and control settings adapt easily to site requirements and plant flow rates.

Electric grizzly feeder 1080×1080
What We Offer

Start Smart. Protect What’s Next.

Taurian Electric Grizzly Feeders offer reliable feeding, efficient fines separation, reduced crusher load, energy savings, and durable performance — ensuring smoother, cost-effective primary crushing operations.

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

It features cast or fabricated grizzly bars that scalps fines and bypass material before it reaches the crusher. This reduces wear, improves crusher efficiency, and ensures smoother downstream operation in high-impact environments.

Icon & Text Needed
Icon & Text Needed
Icon & Text Needed
Icon & Text Needed

Product Gallery

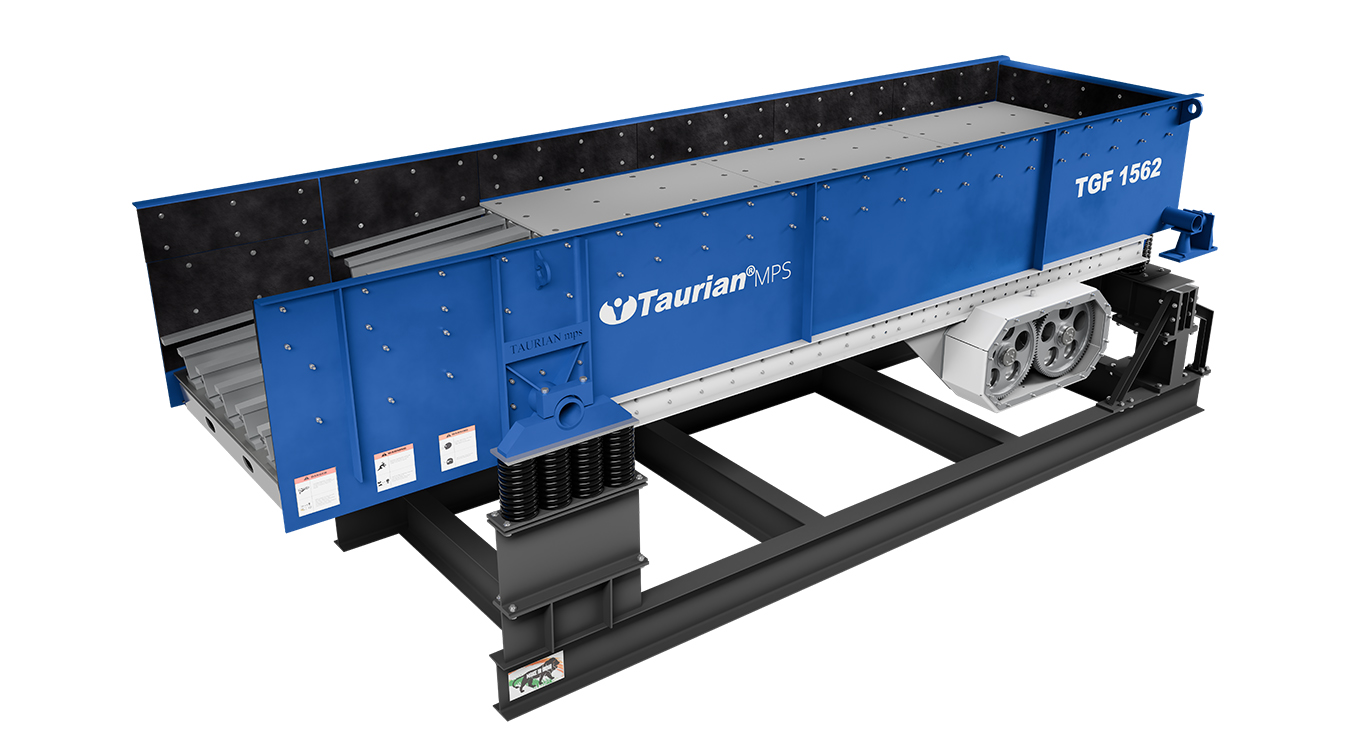

Electric grizzly feeder web img 2
Electric grizzly feeder feature shot
Electric grizzly feeder web img 2
Electric grizzly feeder feature shot

Technical Specifications

Heavy Duty - Grizzly Feeders
ModelTGF 1062STGF 1262STGF 1562STGF 1862STGF 2162STGF 2462S
Max feed capacity1560 TPH720 TPH880 TPH1040 TPH1200 TPH1360 TPH
Feeder (L × W)6000 × 1020 mm6000 × 1220 mm6000 × 1520 mm6000 × 1820 mm6000 × 2120 mm6000 × 2420 mm
Grizzly length2 × 900 mm2 × 900 mm2 × 900 mm2 × 900 mm2 × 900 mm2 × 900 mm
Grizzly area1.8 m²2.2 m²2.7 m²3.3 m²3.8 m²4.3 m²
Motor2 × 15 kW22 kW30 kW37 kW37 kW2 × 30 kW
Weight6450 kg7250 kg8150 kg8800 kg9700 kg17700 kg
