Terratrak™ Series

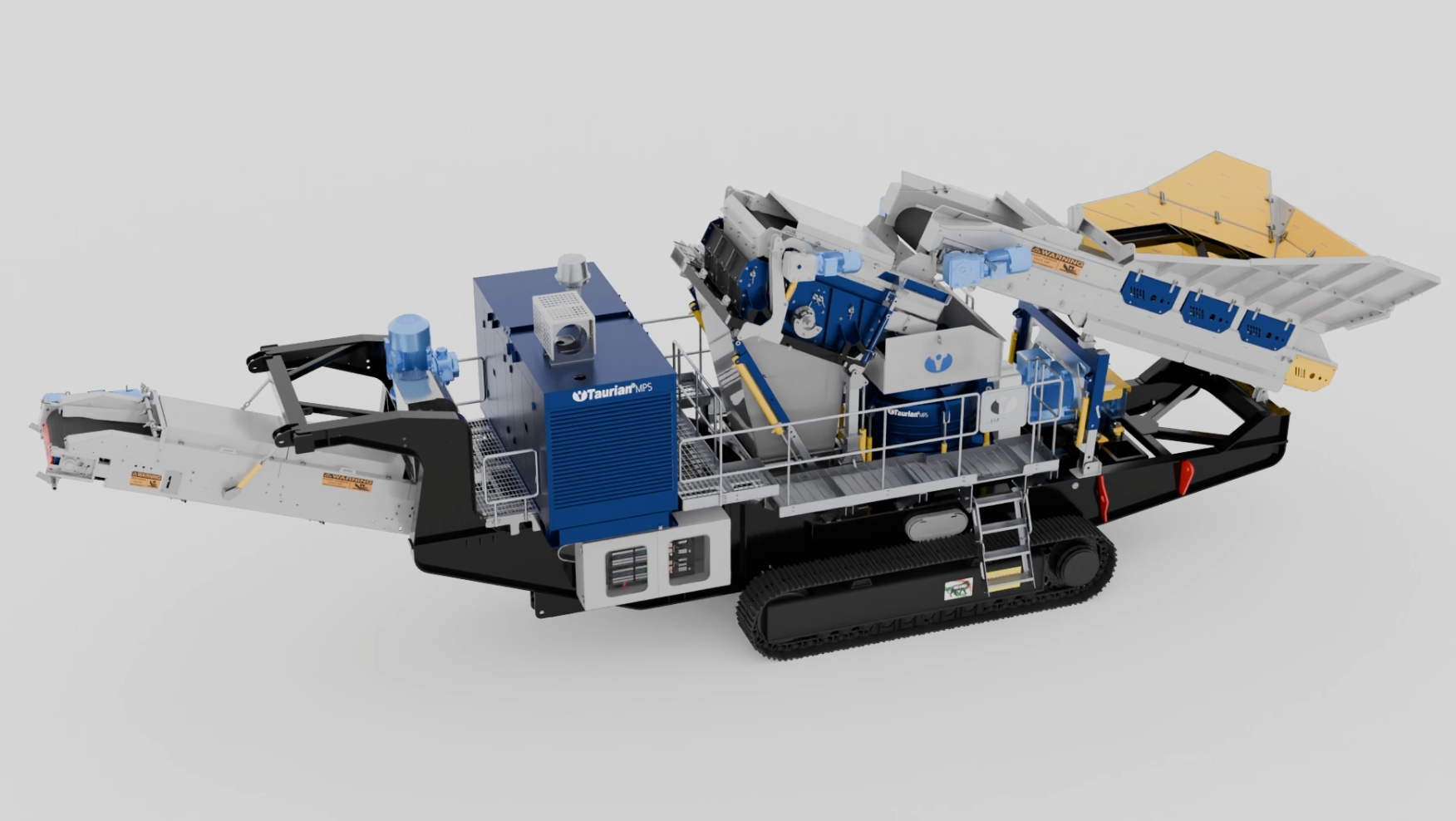

Track Mounted Cone - Prescreen

Secondary prescreen

Integrated Pre-Screen – Smarter Feed. Cleaner Output.

The integrated pre-screen removes fines before they reach the cone chamber, reducing wear, improving product quality, and increasing overall efficiency. By optimizing feed size and minimizing recirculation, it ensures stable cone loading, better liner life, and consistent throughput—ideal for mobile crushing in variable feed conditions.

  1. Home
  2. Products
  3. Terratrak
  4. Track Cone – Prescreen
Secondary prescreen
Key Benefits

Moves with Your Workflow

On-Site. On-Time. On-Track

TTCBPS=1536 X 960
Pre-Screening
Pre-Screening

- Integrated pre-screen function removes fines before material enters the cone, improving crushing efficiency and reducing wear on liners
- Reduces recirculation load and improves overall plant performance

CFS (Continuous Feed System)
CFS (Continuous Feed System)

- Self-regulating feed rate matches crusher capacity in real-time
- Integrated pre-screen boosts efficiency by 15-20%

Crusher Unit - CB Cone
Crusher Unit - CB Cone

- Designed to accept coarse feed for high-volume crushing
- Fixed shaft design
- Hydraulic tramp relief for instant overload protection
- High throw and large eccentric – Maximizes throughput and improves reduction ratios
- Multiple liner options – Adaptable to a wide range of feed materials

Transport
Transport

- Track mounted for fast mobility
- Folding conveyor reduces transport width by 40%
- Auto-leveling system enables 15-minute setup

Diesel-Electric Drive
Diesel-Electric Drive

- 25% fuel savings with smart ECO mode
- Automatic power boost for peak demand periods

Discharge Conveyor
Discharge Conveyor

- 3-stage discharge system prevents material pile-up
- Optional over band magnet removes tramp metal automatically

Feeding Unit
Feeding Unit

- 45° steep feed hopper prevents bridging.
- Heavy-duty grizzly feeder handles sticky materials and pre-screens efficiently.

TTCMPS
Crusher Unit - CM Cone
Crusher Unit - CM Cone

- Multi-Actuator Technology delivers superior crushing force and dynamic load distribution.
- Wide CSS range offers greater flexibility
- High pivot point and steep chamber
- High-speed operation boosts productivity

CFS (Continuous Feed System)
CFS (Continuous Feed System)

- Self-regulating feed rate matches crusher capacity in real-time
- Integrated pre-screen boosts efficiency by 15-20%

Diesel-Electric Drive
Diesel-Electric Drive

- 25% fuel savings with smart ECO mode
- Automatic power boost for peak demand periods

Pre-Screening
Pre-Screening

- Integrated pre-screen function removes fines before material enters the cone, improving crushing efficiency and reducing wear on liners
- Reduces recirculation load and improves overall plant performance

Transport
Transport

- Track mounted for fast mobility
- Folding conveyor reduces transport width by 40%
- Auto-leveling system enables 15-minute setup

Discharge Conveyor
Discharge Conveyor

- 3-stage discharge system prevents material pile-up
- Optional over band magnet removes tramp metal automatically

Feeding Unit
Feeding Unit

- 45° steep feed hopper prevents bridging.
- Heavy-duty grizzly feeder handles sticky materials and pre-screens efficiently.

Secondary prescreen
Feeding Unit
Feeding Unit

- 45° steep feed hopper prevents bridging.
- Heavy-duty grizzly feeder handles sticky materials and pre-screens efficiently.

Crusher Unit - CG Cone
Crusher Unit - CG Cone

- Accommodates large feed sizes for secondary and tertiary crushing
- Floating shaft benefits
- Hydraulic setting adjustment for closed-side setting (CSS)
- Steep crushing chamber
- Replaceable wear liners

CFS (Continuous Feed System)
CFS (Continuous Feed System)

- Self-regulating feed rate matches crusher capacity in real-time
- Integrated pre-screen boosts efficiency by 15-20%

Discharge Conveyor
Discharge Conveyor

- 3-stage discharge system prevents material pile-up
- Optional over band magnet removes tramp metal automatically

Diesel-Electric Drive
Diesel-Electric Drive

- 25% fuel savings with smart ECO mode
- Automatic power boost for peak demand periods

Transport
Transport

- Folding conveyor reduces transport width by 40%
- Auto-leveling system enables 15-minute setup

Pre-Screening
Pre-Screening

- Integrated pre-screen function removes fines before material enters the cone, improving crushing efficiency and reducing wear on liners
- Reduces recirculation load and improves overall plant performance

TTCBPS=1536 X 960
TTCMPS
Secondary prescreen
What We Offer

Take the Pressure Off Your Cone

This early-stage separation not only lightens the load on downstream equipment but also enhances fuel efficiency and reduces unnecessary energy consumption. The pre-screen is hydraulically adjustable, allowing operators to fine-tune material flow and screening performance—making it a critical component for high-performance, cost-effective operation in fast-moving, track-mounted crushing circuits.

Bauma cb

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

Prescreen Feature 1

Precision Begins Before the Chamber

The integrated pre-screen removes fines before material enters the cone chamber, reducing wear on the liners, improving final product quality, and enhancing overall crushing efficiency—especially valuable in high-volume or abrasive applications.

Prescreen Feature 2

Conveyor for increased productivity

The track cone with pre-screen offers an optional oversize conveyor to divert or stockpile out-of-spec material. This adds flexibility to the circuit, improves product control, and supports closed-loop or multi-product crushing setups.

Choose your cone

Configurable Crushing Chamber

offers flexibility to select from a range of Taurian cone crusher models and chamber configurations, enabling you to match crushing performance, capacity, and product shape to your specific application and output requirements.

Prescreen Feature 3

Diesel - Electric Drive

It features a fuel-efficient diesel-electric drive that reduces fuel consumption and lowers operating costs. Electric components enhance power transmission efficiency, enable smoother starts, and support grid or generator integration—offering flexibility, sustainability, and superior performance in both remote and urban crushing environments.

Integrated Pre-Screen Unit
Optional Conveyor
Your Application. Your Cone.
Diesel - Electric Drive

Product Gallery

img prescreen web

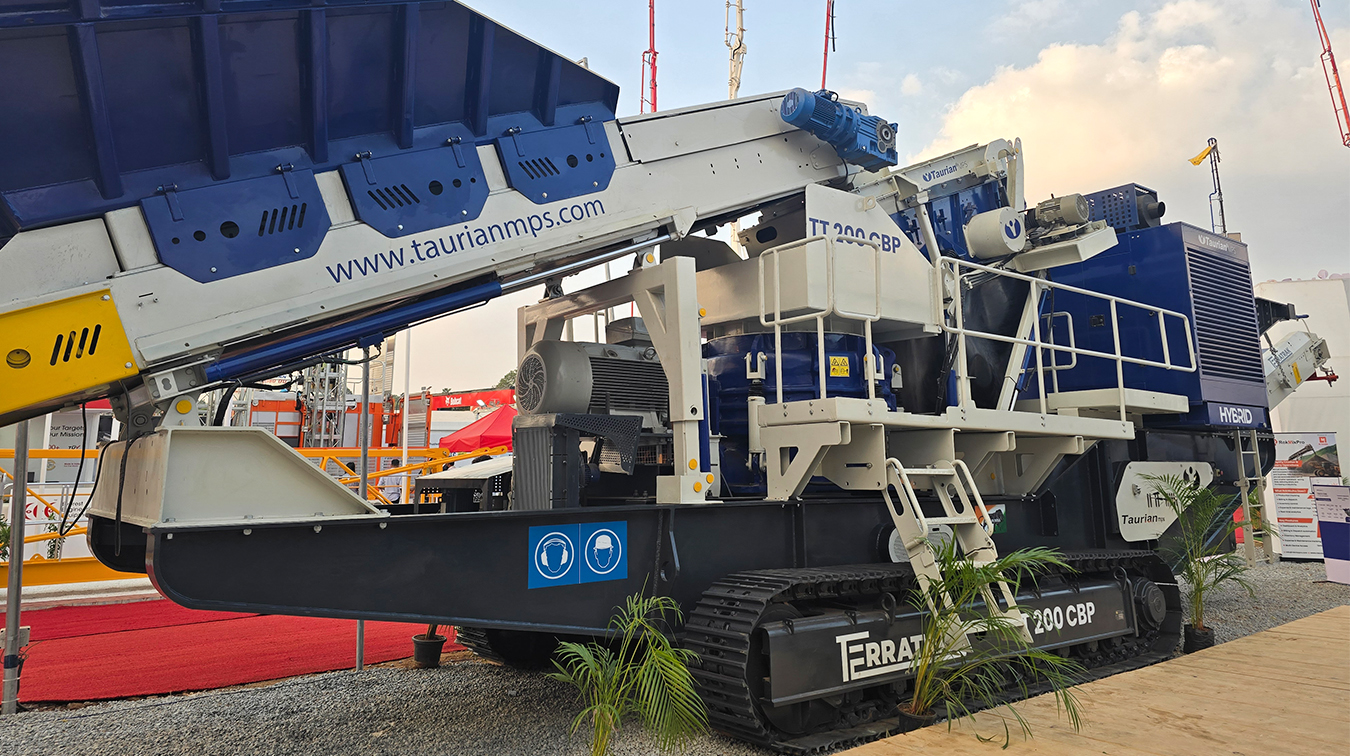

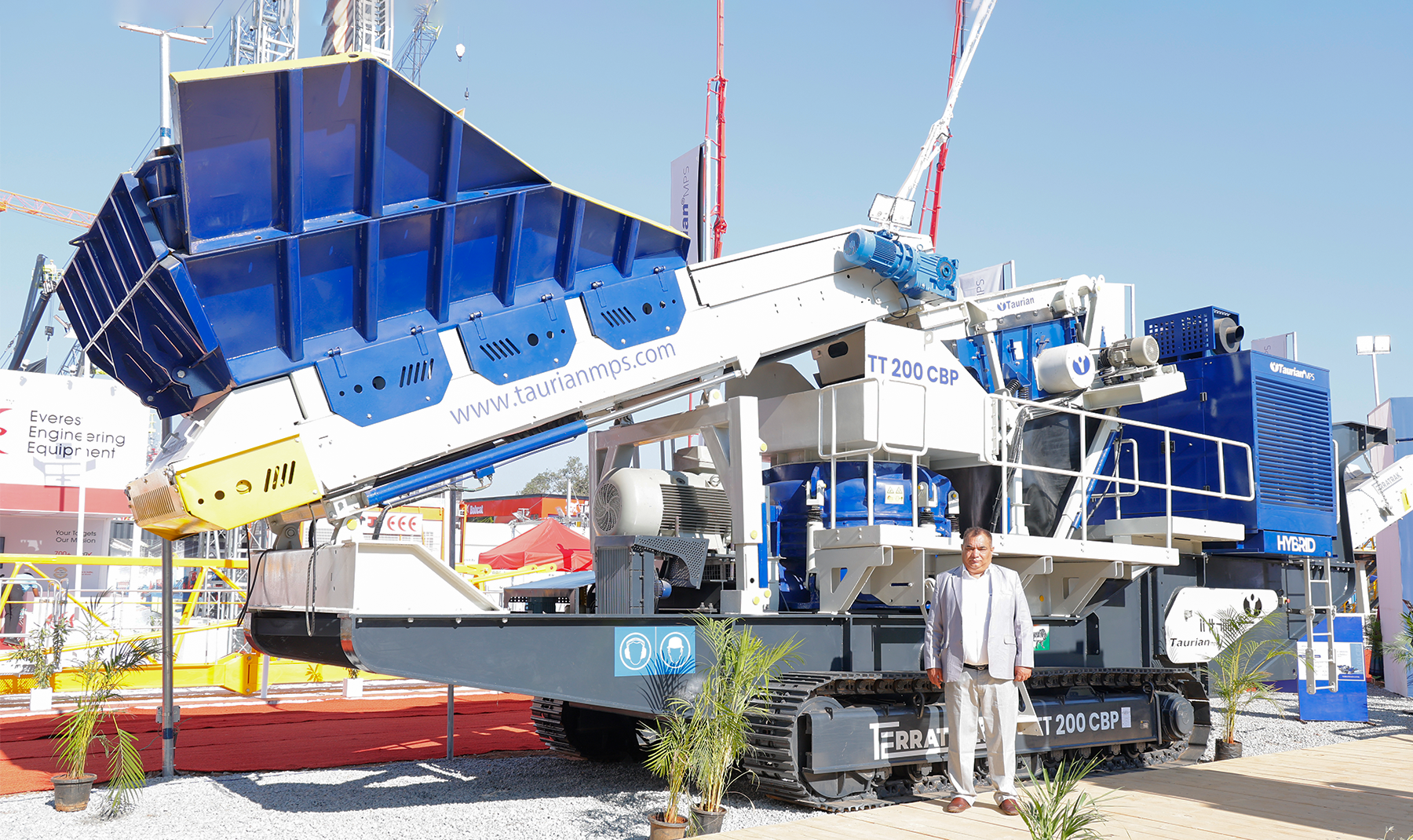

TRACK CONE PRESCREEN
Bauma cb
track cone prescreen 02
track cone prescreen 03
img 1 TT reverse screen web
Sequence 01_401
img prescreen web
Sequence 01_400
TRACK CONE PRESCREEN
Bauma cb
track cone prescreen 02
track cone prescreen 03
img 1 TT reverse screen web

Technical Specifications

Track Mounted Cone - Prescreen
Track Cone - Prescreen
Dimensions
ModelTT 200 CB-PSTT 300 CB-PS
Working L x W x H15800 X 3350 X 485016200X 3450 X 4190
Transport L x W x H16900 X 3200 X 390016900 X 3200 X 4000
weight44,20052,000
Feeding Unit
ModelTT 200 CB-PSTT 300 CB-PS
Max. feed size200 mm225 mm
Feeding height3350 mm3620 mm
Feed capacity up to approx.225 t/h325 t/h
Feed Conveyor1050 mm1050 mm
Hopper width2450 mm2450 mm
Hopper Width With Extenstion 3290 mm3290 mm
Hopper length3200 mm3200 mm
Hopper volume 5.0 m³5.0 m³
Hopper volume with Extenstion9. m³9.2 m³
Crusher
ModelTT 200 CB-PSTT 300 CB-PS
Crusher drive typeElectricElectric
crusher modelCone Head Size 1000 mmCone Head Size 1300 mm
Crusher weight (approx.)11,000 kg22,000 kg
Crushing power160 kw225 kw
CSS range19-3219-32
Crushing capacity CSS= 0-45mm225 t/h325 t/h
Crushing capacity CSS = 0-56mmNilNil
Main Conveyor (Discharge Conveyor)
ModelTT 200 CB-PSTT 300 CB-P
Discharge height3,200 mm3,400 mm
Width1050 mm1300 mm
Length10,400 mm10,400 mm
angle2222
Engine
ModelTT 200 CB-PSTT 300 CB-P
Drive conceptElectricElectric
Generator380 kva400 kva
fuel/hydraulic oil tank vol800 L*1000 L*
Tracks
ModelTT 200 CB-PSTT 300 CB-P
tracks width500 mm500 mm
sprocket centres3780 mm3780 mm
Pre Screening Unit - Single
ModelTT 200 CB-PSTT 300 CB-P
Screen Size1830 mm X 1220 mm1830 mm X 1220 mm
Motor size7.5kw7.5kw
Discharge Conveyor
ModelTT 200 CB-PSTT 300 CB-PS
Discharge height3200 mm3200 mm
Width1000 mm1200 mm
Length10,500 mm10,500 mm
stockpile capacity48.7m3 @40*48.7m3 @40*
