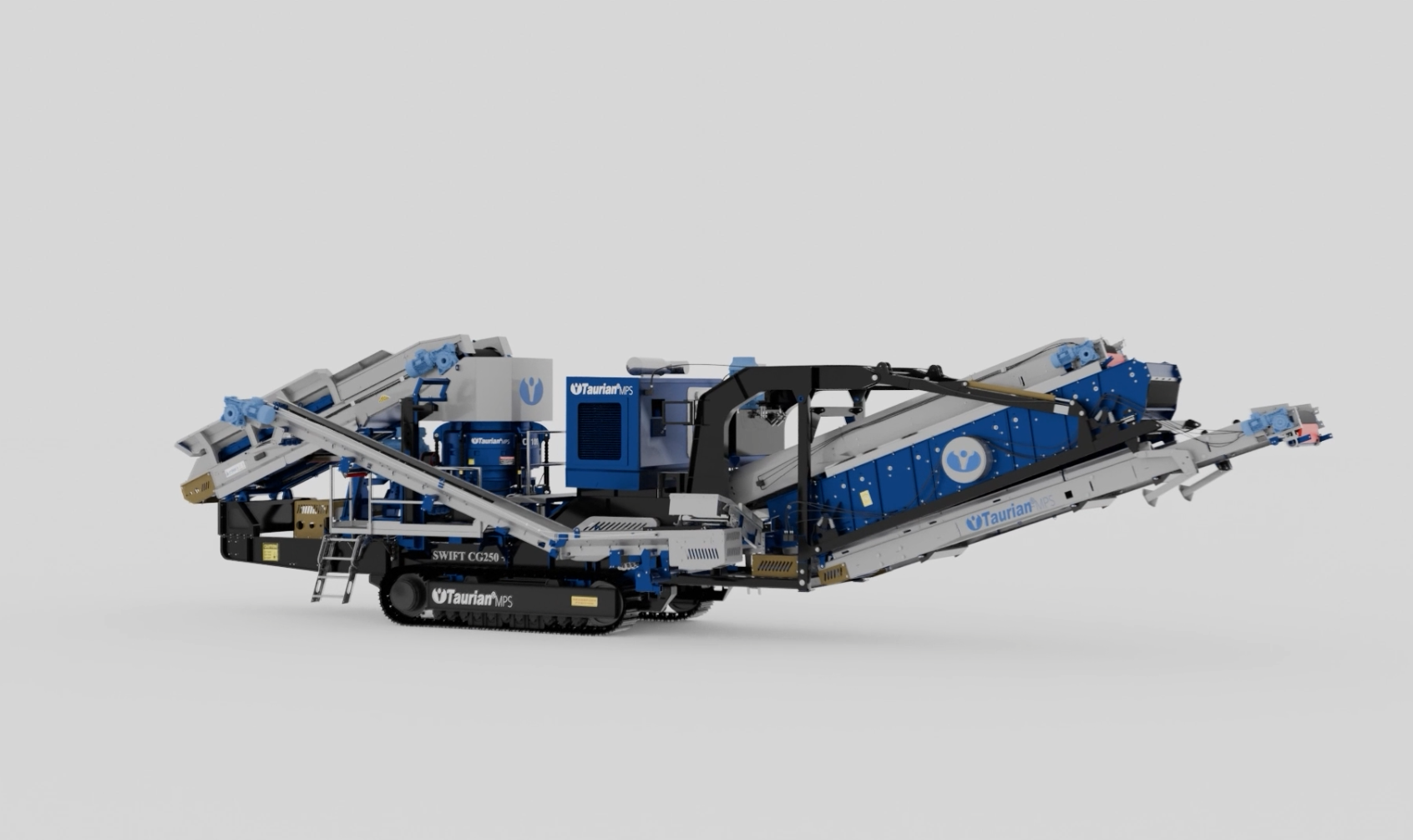

Terratrak™ Series

Track Mounted Cone - Reverse Conveyor

Secondary Reverse

Always keeps you moving.

This track mounted cone features a reverse conveyor system that enables the main discharge belt to run backward at the press of a button, effectively dislodging blockages or ejected overload material. This automated clearing process eliminates the need for manual intervention, enhancing operator safety, reducing downtime, and protecting downstream components.

  1. Home
  2. Products
  3. Terratrak
  4. Track Cone – Reverse Conveyor
Secondary Reverse
Key Benefits

Track-Mounted Power. Wherever You Need It

Range of Terratrak™ Series Secondary and Tertiary Solutions

TTCMRS
Feeding Unit
Feeding Unit

- 45° steep feed hopper prevents bridging.
- Heavy-duty grizzly feeder handles sticky materials and pre-screens efficiently.

Crusher Unit - CM Cone
Crusher Unit - CM Cone

- Multi-Actuator Technology delivers superior crushing force and dynamic load distribution.
- Wide CSS range offers greater flexibility
- High pivot point and steep chamber
- High-speed operation boosts productivity

CFS (Continuous Feed System)
CFS (Continuous Feed System)

- Self-regulating feed rate matches crusher capacity in real-time
- Integrated pre-screen boosts efficiency by 15-20%

Transport
Transport

- Track mounted for fast mobility
- Folding conveyor reduces transport width by 40%
- Auto-leveling system enables 15-minute setup

Recirculation Conveyor
Recirculation Conveyor

- Enables closed-circuit operation by feeding oversize material back to the cone, improving product consistency.
- Foldable and detachable design allows quick setup or bypass mode, enhancing mobility and transport efficiency.

Diesel-Electric Drive
Diesel-Electric Drive

- 25% fuel savings with smart ECO mode
- Automatic power boost for peak demand periods

Discharge Conveyor
Discharge Conveyor

- 3-stage discharge system prevents material pile-up
- Optional over band magnet removes tramp metal automatically

TTCGRS
Feeding Unit
Feeding Unit

- 45° steep feed hopper prevents bridging.
- Heavy-duty grizzly feeder handles sticky materials and pre-screens efficiently.

Crusher Unit - CG Cone
Crusher Unit - CG Cone

- Accommodates large feed sizes for secondary and tertiary crushing
- Floating shaft benefits
- Hydraulic setting adjustment for closed-side setting (CSS)
- Steep crushing chamber
- Replaceable wear liners

CFS (Continuous Feed System)
CFS (Continuous Feed System)

- Self-regulating feed rate matches crusher capacity in real-time
- Integrated pre-screen boosts efficiency by 15-20%

Transport
Transport

- Folding conveyor reduces transport width by 40%
- Auto-leveling system enables 15-minute setup

Recirculation Conveyor
Recirculation Conveyor

- Enables closed-circuit operation by feeding oversize material back to the cone, improving product consistency.
- Foldable and detachable design allows quick setup or bypass mode, enhancing mobility and transport efficiency.

Discharge Conveyor
Discharge Conveyor

- 3-stage discharge system prevents material pile-up
- Optional over band magnet removes tramp metal automatically

Diesel-Electric Drive
Diesel-Electric Drive

- 25% fuel savings with smart ECO mode
- Automatic power boost for peak demand periods

TTCGRS
Recirculation Conveyor
Recirculation Conveyor

- Enables closed-circuit operation by feeding oversize material back to the cone, improving product consistency.
- Foldable and detachable design allows quick setup or bypass mode, enhancing mobility and transport efficiency.

CFS (Continuous Feed System)
CFS (Continuous Feed System)

- Self-regulating feed rate matches crusher capacity in real-time
- Integrated pre-screen boosts efficiency by 15-20%

Diesel-Electric Drive
Diesel-Electric Drive

- 25% fuel savings with smart ECO mode
- Automatic power boost for peak demand periods

Crusher Unit - CB Cone
Crusher Unit - CB Cone

- Designed to accept coarse feed for high-volume crushing
- Fixed shaft design
- Hydraulic tramp relief for instant overload protection
- High throw and large eccentric – Maximizes throughput and improves reduction ratios
- Multiple liner options – Adaptable to a wide range of feed materials

Transport
Transport

- Folding conveyor reduces transport width by 40%
- Auto-leveling system enables 15-minute setup

Discharge Conveyor
Discharge Conveyor

- 3-stage discharge system prevents material pile-up
- Optional over band magnet removes tramp metal automatically

Feeding Unit
Feeding Unit

- 45° steep feed hopper prevents bridging.
- Heavy-duty grizzly feeder handles sticky materials and pre-screens efficiently.

TTCMRS
TTCGRS
TTCGRS
What We Offer

Jammed? Hit Reverse.

Particularly useful in mobile and high-volume operations where feed conditions can vary, the reverse conveyor improves plant safety, operational continuity, and system responsiveness. Whether it’s an unexpected oversized rock or an uneven surge of feed, the reverse conveyor enables real-time control, reducing cleanout cycles and safeguarding the crusher’s productivity.

cone reverse conveyor for other sec

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

reverse conveyer

Reverse Conveyor

This mobile Cone includes a reverse conveyor feature that allows the discharge belt to run backward during blockages or material overloads. This quick-response mechanism clears the chute without manual intervention, minimizes downtime, and protects critical components

Choose your cone

Your Application. Your Cone.

This Terratrak™ cone crusher offers flexibility to select from a range of Taurian cone crusher models and chamber configurations—enabling you to match crushing performance, capacity, and product shape to your specific application and output requirements

CFS Edited

Continuous Feed System (CFS)

This mobile Cone includes a reverse conveyor feature that allows the discharge belt to run backward during blockages or material overloads. This quick-response mechanism clears the chute without manual intervention, minimizes downtime, and protects critical components The Terratrak™ Cone RS features a Continuous Feed System (CFS) that monitors crusher load and regulates the feed accordingly. This prevents overloading, maintains consistent crushing pressure, and optimizes throughput—resulting in better liner wear, higher productivity, and smooth operation across fluctuating feed conditions.

2 decks Feature B

Integrated Double Deck Screen

It comes equipped with an integrated double deck screen that classifies material into desired sizes on-site. This eliminates the need for additional screening equipment, enhances product quality control, and improves overall efficiency—ideal for producing spec-grade material in compact, mobile setups.

Reverse Conveyor
Your Application. Your Cone.
Continuous Feed System (CFS)
2-Deck Screening

Product Gallery

con reverse conveyor
terratrak TBA 2
chindarwara 2
track cone reverse 01
1800 x 1070 Web gallery
img 1 TT reverse screen web
tba 2
Terratrak Secondary Excon (3)
chindarwara
TT cone regular 0
con reverse conveyor
terratrak TBA 2
chindarwara 2
Untitled 1
track cone reverse 01
1800 x 1070 Web gallery
img 1 TT reverse screen web
tba 2
Terratrak Secondary Excon (3)
chindarwara

Technical Specifications

Track Cone - Reverse Conveyor
Track Cone - Reverse Screen
Dimensions
ModelTT 200 CB-RSTT 300 CB-RS
Working L x W x H19200 X 4850 X 475015800 X 4750 X 4090
Transport L x W x H18950 X 3200 X 350018950 X 3100 X 3500
weight5410058800
Feeding Unit
ModelTT 200 CB-RSTT 300 CB-RS
Max. feed size200 mm225 mm
Feeding height3250 mm3720 mm
Feed capacity up to approx.225 t/h325 t/h
Feed Conveyor1050 mm1050 mm
Hopper width2450 mm2450 mm
Hopper Width With Extenstion 3290 mm3290 mm
Hopper length3200 mm3200 mm
Hopper volume 5.0 m³5.0 m³
Hopper volume with Extenstion9 m³9.2 m³
Crusher
ModelTT 200 CB-RSTT 300 CB-RS
Crusher drive typeElectricElectric
crusher modelCone Head Size 1000 mmCone Head Size 1300 mm
Crusher weight (approx.)11,000 kg22,000 kg
Crushing power160 kw225 kw
CSS range19-3219-32
Crushing capacity CSS= 0-45mm225 t/h325 t/h
Crushing capacity CSS = 0-56mmNilNil
Main Conveyor (Discharge Conveyor)
ModelTT 200 CB-RSTT 300 CB-RS
Discharge height3,200 mm3,400 mm
Width1050 mm1300 mm
Length10,400 mm10,400 mm
angle2222
Engine
ModelTT 200 CB-RSTT 300 CB-RS
Drive conceptElectricElectric
Generator380 kva400 kva
fuel/hydraulic oil tank vol800 L*1000 L*
Tracks
ModelTT 200 CB-RSTT 300 CB-RS
tracks width500 mm500 mm
sprocket centres3780 mm3780 mm
Pre Screening Unit - Single
ModelTT 200 CB-RSTT 300 CB-RS
Screen SizeNilNil
Post Screening Unit - Double deck
ModelTT 200 CB-RSTT 300 CB-RS
Model6000 mm X 1650 mm6000 mm X 1650 mm
Number of Decks2 Deck2 Deck
Screen Size6000 mm X 1650 mm6000 mm X 1650 mm
Motor size22 Kw22 Kw
Return Conveyor
ModelTT 200 CB-RSTT 300 CB-RS
Oversize return conveyor width500 BW500 BW
Oversize return conveyor length8500 mm8500 mm
Discharge Conveyor
ModelTT 200 CB-RSTT 300 CB-RS
Discharge height2985 mm2985 mm
Width1000 mm1200 mm
Length6,750 mm6,750 mm
stockpile capacity39.5m3 @40*39.5m3 @40*
