Terratrak™

Track Mounted Horizontal Screen

TT Horizontal

Track-mounted. Field-ready. Always in motion

Terratrak™ horizontal screen features a triple-shaft mechanism and elliptical motion, they deliver consistent material stratification and high screening efficiency, even with wet or sticky materials. Ideal for mining, aggregates, and industrial minerals, these screens ensure low operational stress and extended equipment life.

  1. Home
  2. Products
  3. Terratrak
  4. Track Horizontal Screen

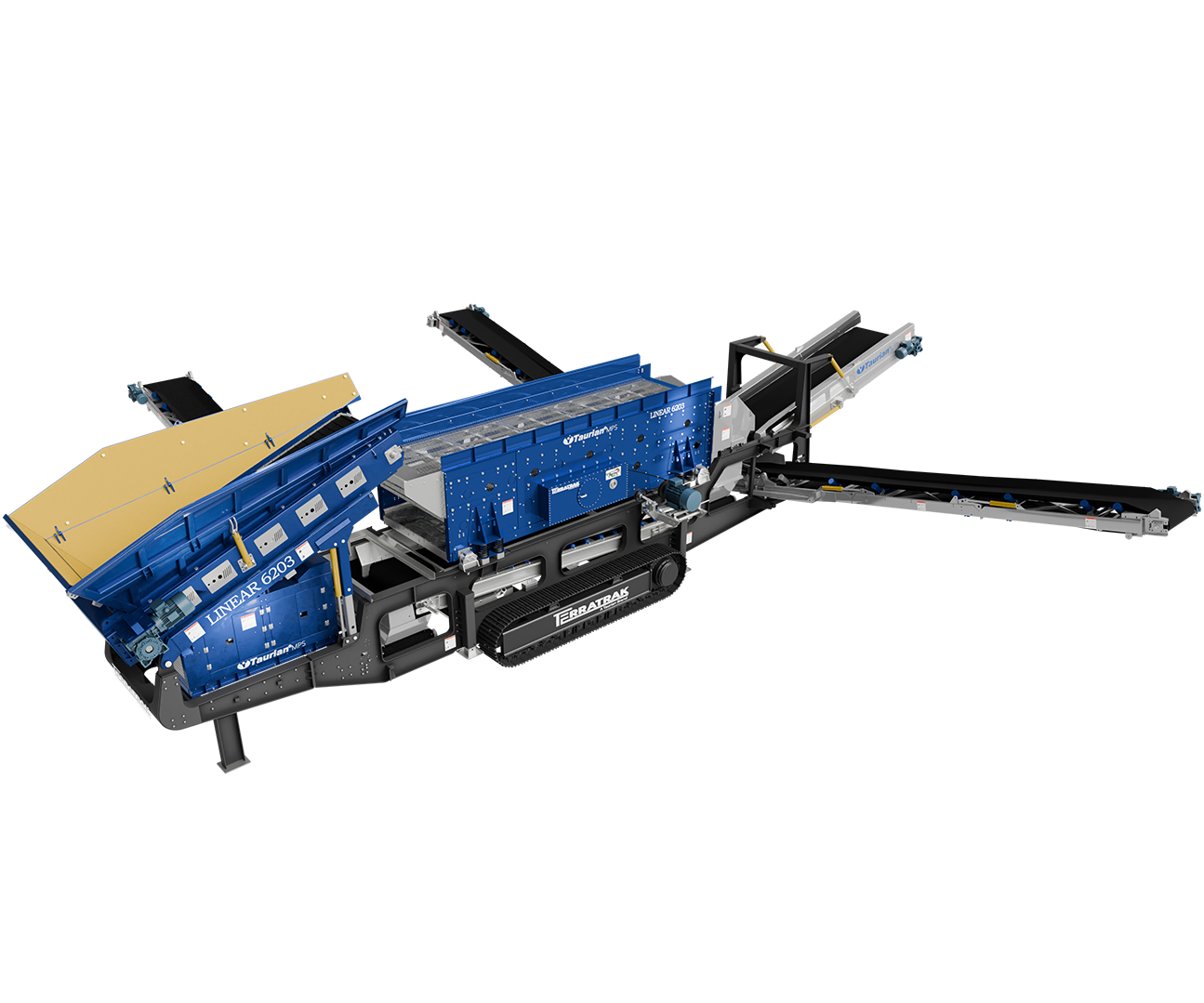

TT Horizontal
Key Benefits

Scalper Screen – Heavy-Duty Screening, Anywhere

Aggressive material separation with exceptional reliability.

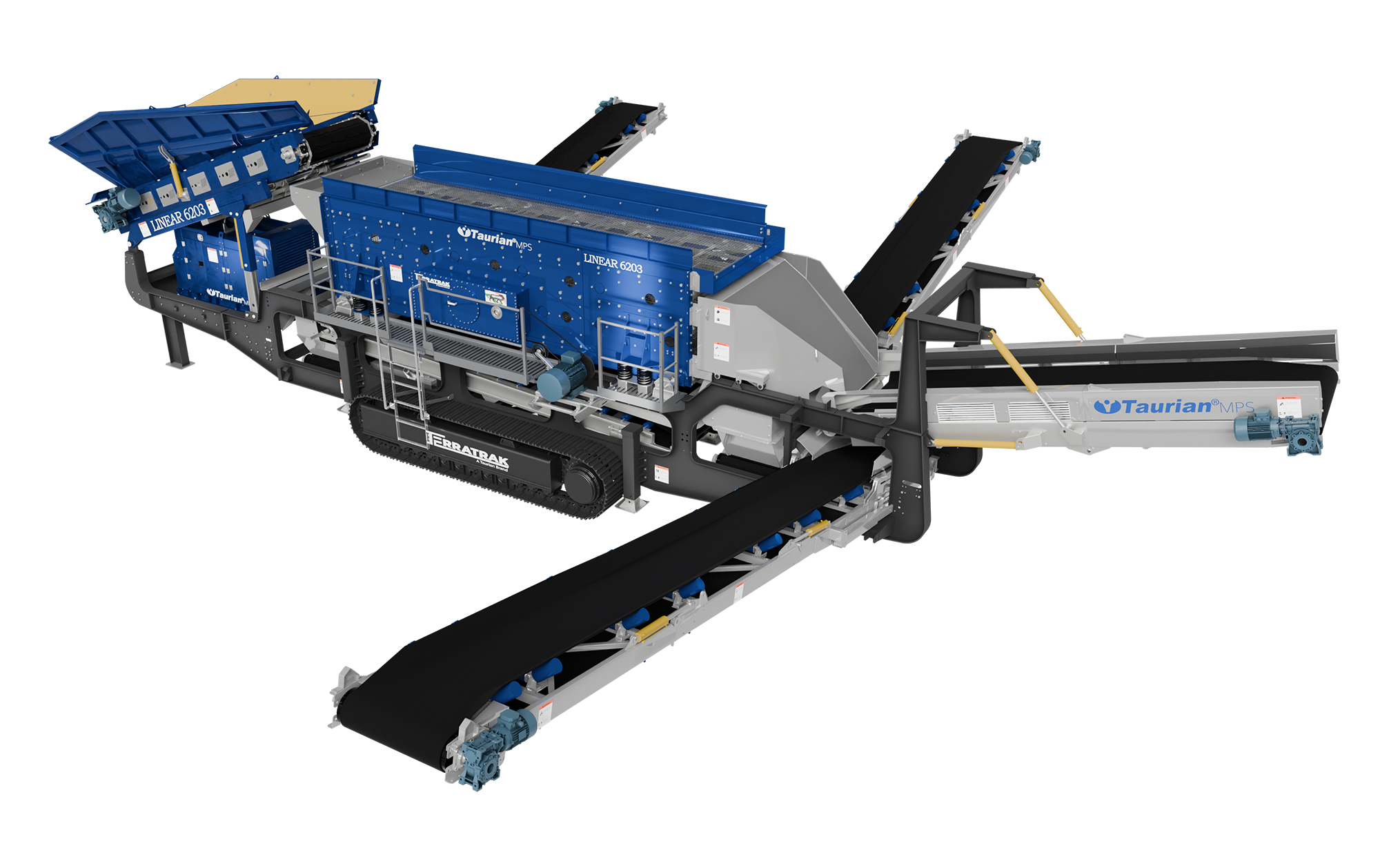

TT Horizontal 2
High-energy two-deck screen box
High-energy two-deck screen box

Equipped with a heavy-duty double-deck setup for aggressive screening and superior separation of fines and oversize materials

Adjustable screen angle and amplitude
Adjustable screen angle and amplitude

Fine-tunes material separation for different feed types and operating conditions, improving efficiency and throughput.

Track-mounted mobility
Track-mounted mobility

Easily relocates across site with fast setup time—ideal for contractors and quarries with shifting production zones.

Hydraulic folding conveyors
Hydraulic folding conveyors

Simplifies transport and setup with folding side and fines conveyors, reducing time between job sites.

Compatible with recirculation systems
Compatible with recirculation systems

Can be integrated into closed-loop setups for complete mobile crushing and screening solutions.

Wide feed hopper with hydraulic tipping grid
Wide feed hopper with hydraulic tipping grid

Allows direct loading from excavators or loaders, with the tipping grid preventing oversized material from entering the screen box.

TT Horizontal 2
What We Offer

Smart screening on the move

Engineered for the toughest conditions, the Terratrak Horizontal Screen can be deployed as a standalone screening unit or as part of a complete crushing and screening setup. Its rugged structure absorbs the rigors of operation, while hydraulic controls and quick setup features enable rapid transitions between projects.
From tight urban projects to remote quarries, this Screen moves with your operation—bringing precision screening wherever you need it.

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

TT Horizontal Screen Feeder Feature

Feed Hopper with Low-Height Access

This Scalper features a reinforced feed hopper with a foldable rear wall for efficient loading, even at low feed heights. Hydraulic control enables safe ground-level folding and locking of side walls, while KRS-lined wear plates protect against highly abrasive materials.

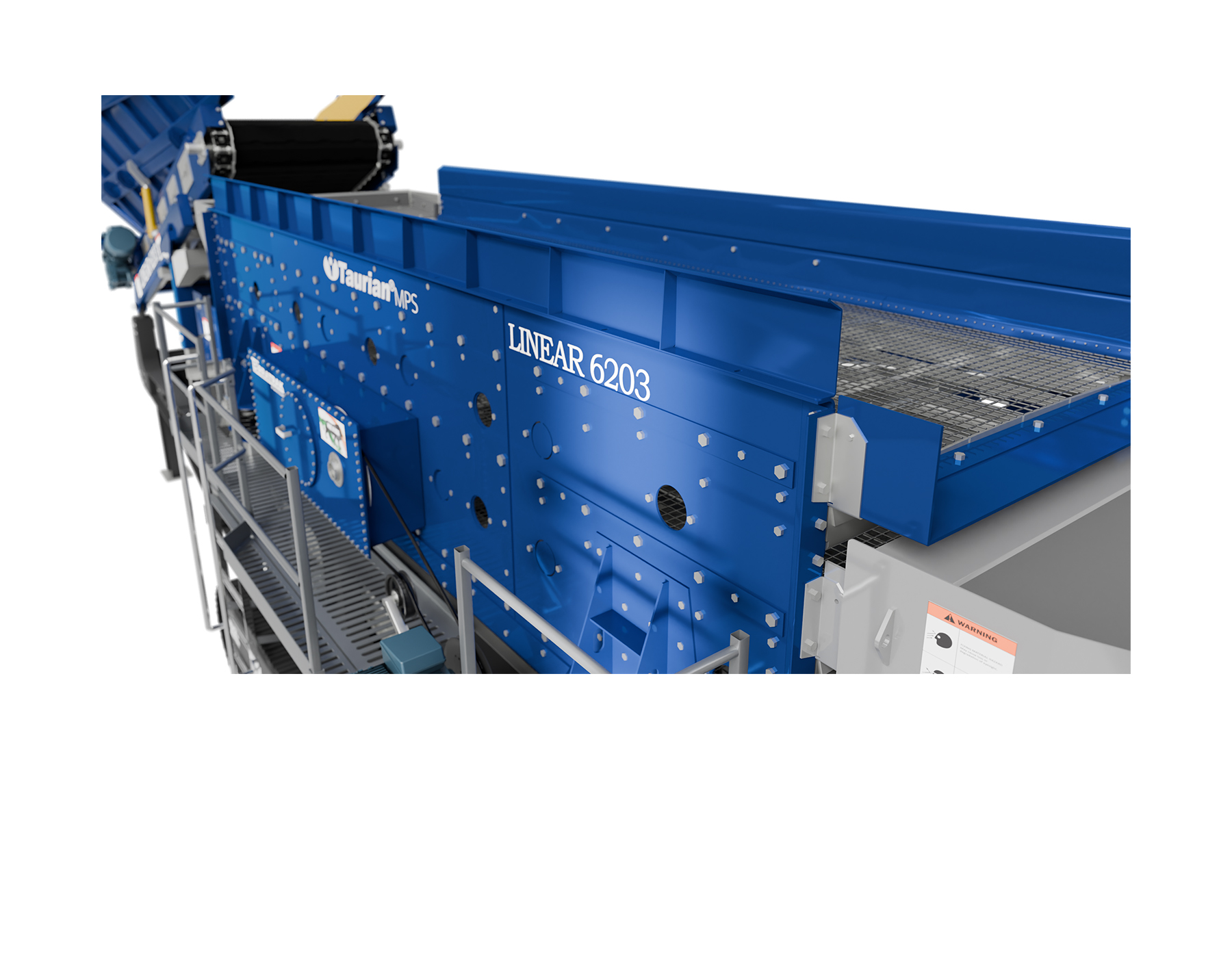

TT Horizontal Screen Feature

Modular Screen Options with Adjustable Angles

The Terratrak™ Scalper offers a wide selection of screen media and modular deck configurations. With an adjustable screen angle (12.5°–17°) and optional banana profile lower deck, it ensures optimal material flow, screening efficiency, and finished product quality—even with challenging feed conditions.

TT Horizontal Screen DiGi box Feature

Smart Material Flow & Connectivity

With a 1600 mm wide main discharge conveyor, stepless belt speed control, and generous screen deck transfer zones, the Terratrak™ Scalper maximizes throughput. It offers easy conversion from 3 to 2 final sizes, stockpile sensor integration, inter-unit process coupling, and hydraulic ports for auxiliary conveyors.

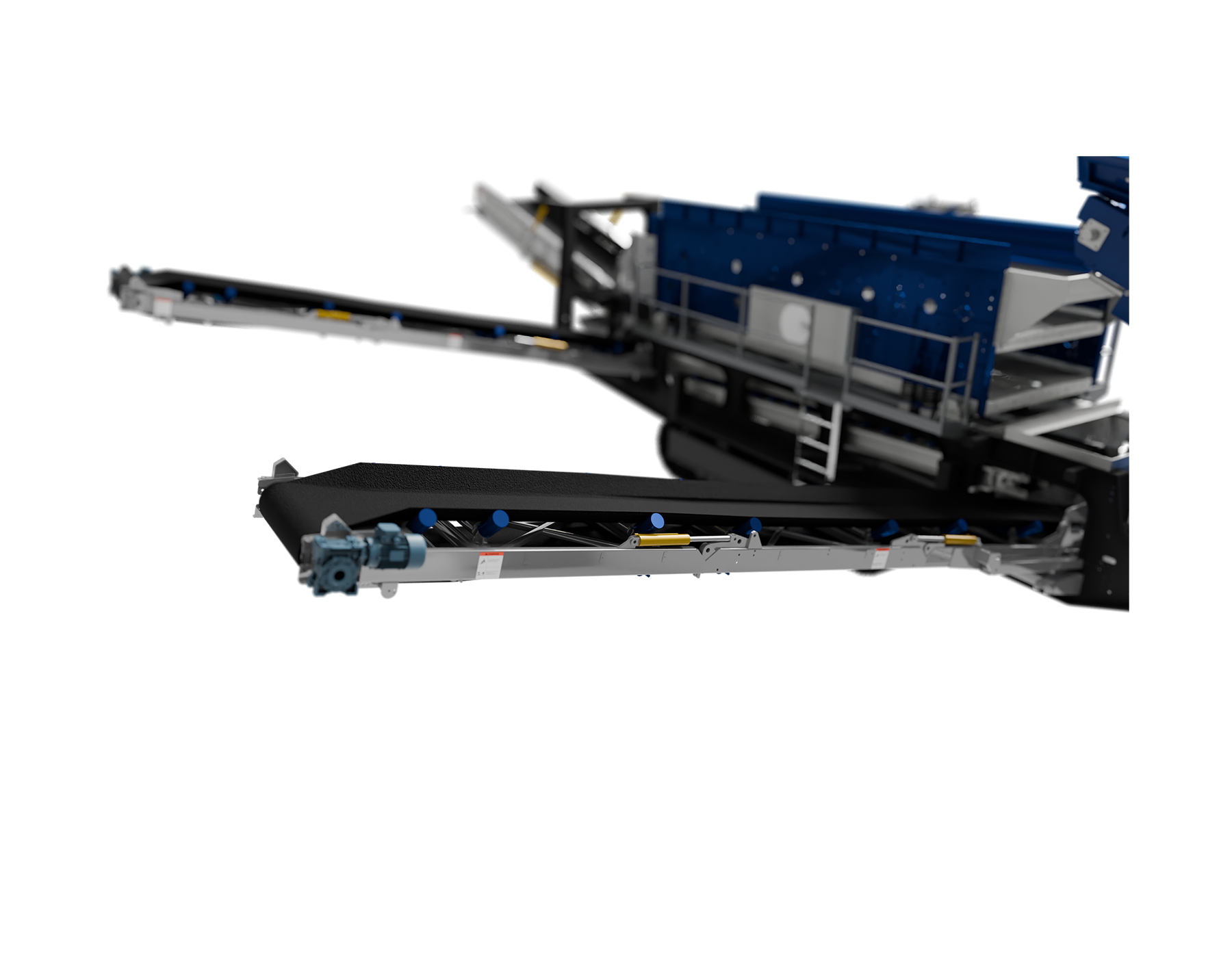

TT Horizontal Side conveyer Feature 1

Hydraulic Folding for Rapid Setup

The Scalper Screen features hydraulic folding of conveyors, hopper walls, and support structures—enabling quick setup, compact transport dimensions, and fast relocation. Designed for dynamic operations, it minimizes downtime between sites while ensuring safety and ease of deployment, even in constrained or rugged environments.

Feed Hopper
Modular Screen Options with Adjustable Angles
Smart Material Flow & Connectivity
Hydraulic Folding

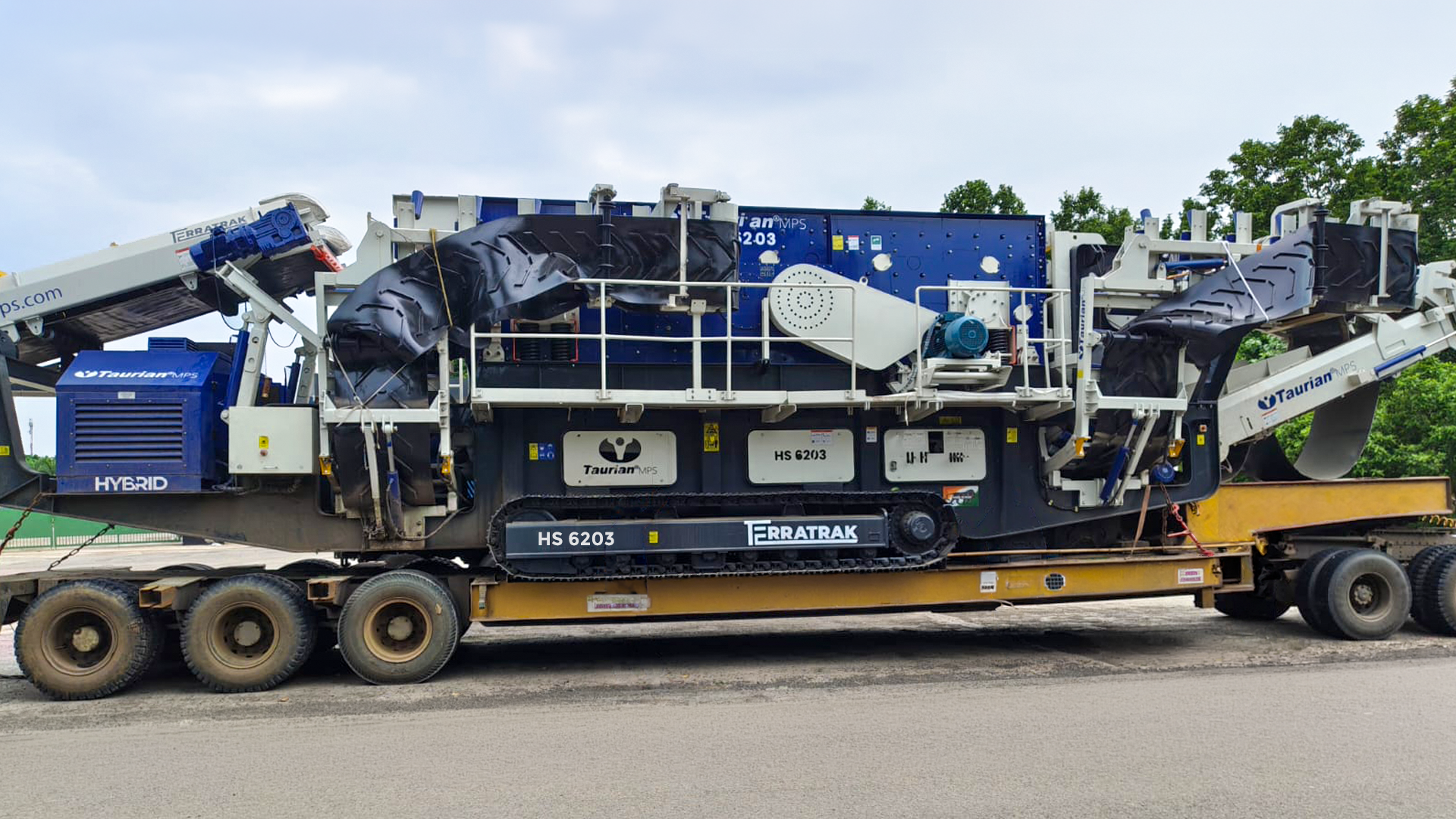

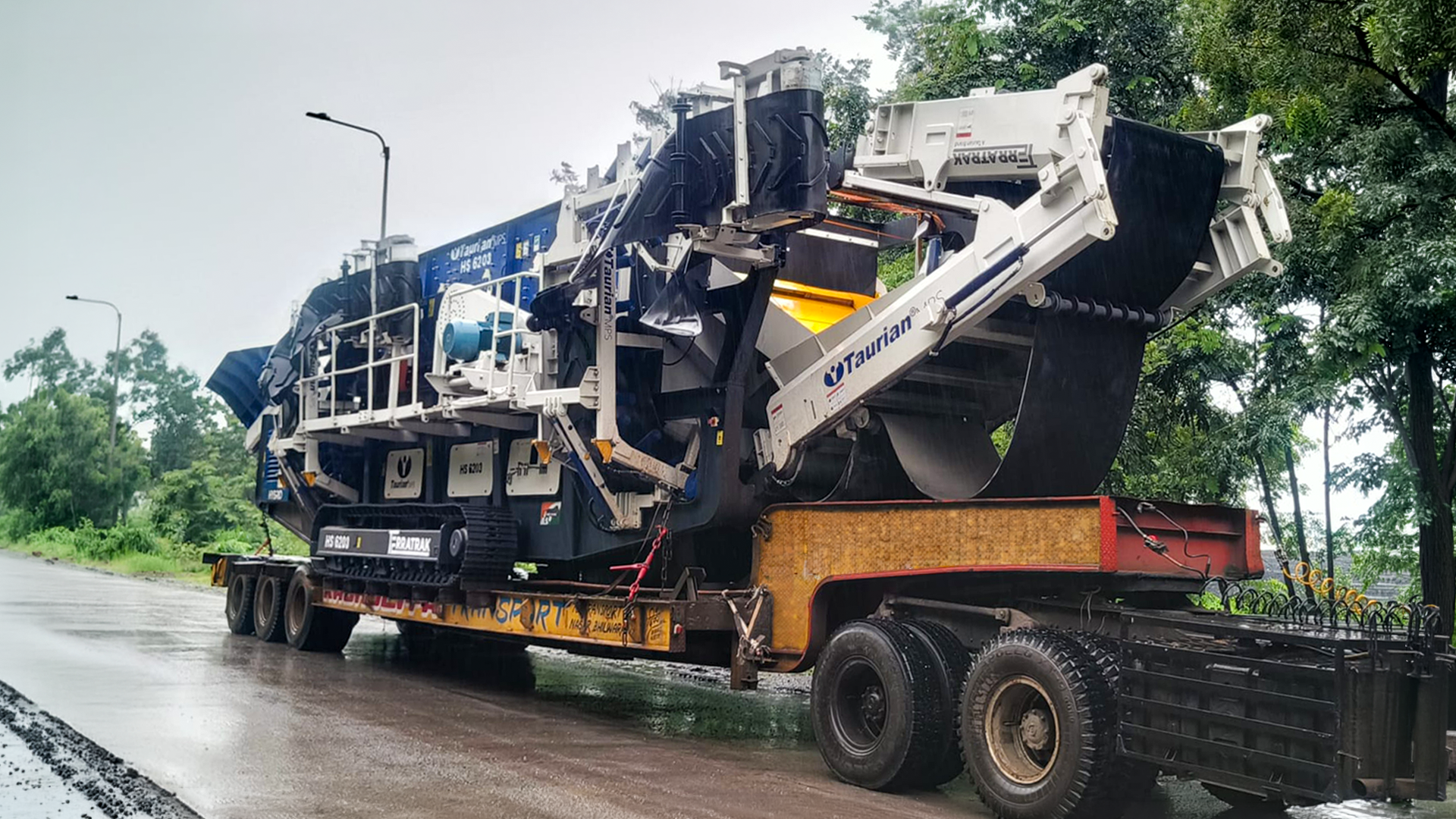

Product Gallery

TT Horizontal 2
TT Horizontal 2

Technical Specifications
