Terratrak™ Series

Track Mounted Jaw Crusher

Terratrak Primary 2013X1258 updated (1)

The Mobile Backbone of Your Operation

The Terratrak™ Primary is a rugged, track-mounted jaw crusher designed for high-output primary crushing right at the source. With unmatched mobility, fast setup, and heavy-duty performance, it’s built to tackle tough rock and hard terrain—ideal for remote mining, quarrying, and rapid infrastructure deployment.

  1. Home
  2. Products
  3. Terratrak
  4. Track Jaw
Terratrak Primary 2013X1258 updated (1)
Key Benefits

Moves with Your Workflow

On-Site. On-Time. On-Track

Terratrak Primary 2013X1258 updated (1)
Advanced Prescreening
Advanced Prescreening

- Independent vibrating prescreen removes fines before crushing to reduce wear.
- Enhances final product quality and improves fuel efficiency.

Heavy-Duty Jaw
Heavy-Duty Jaw

– High-capacity jaw handles large feed sizes with ease.
– Optimized geometry delivers superior reduction ratios and throughput.

User-Centric Control System
User-Centric Control System

Intuitive TAURIAN NEXUS interface with radio remote and live telematics lets operators configure and monitor feeds from a safe distance .

Diesel-Electric Drive
Diesel-Electric Drive

Offers fuel efficiency and operational flexibility with lower emissions. The electric motor can be powered by onboard diesel or external power supply for reduced running costs.

Fast CSS Adjustment
Fast CSS Adjustment

– Hydraulic CSS adjustment on the go without stopping the plant.
– Simplifies operation and reduces downtime.

Scalable Integration
Scalable Integration

– Can be paired with Terratrak™ screens or wheeled units for multi-stage setups.
– Flexible for aggregates, mining, and recycling applications

Track Mobility
Track Mobility

– Fully mobile on rugged crawler tracks for quick relocation.
– No civil work required — ready to run on delivery.

Terratrak Primary 2013X1258 updated (1)
Terratrak™ Series Jaw Crusher

Mobile Powerhouse for Primary Crushing

Engineered around a rugged primary crusher, it delivers aggressive feed handling, deep crushing action, and dependable reduction across hard rock, overburden, and demolition material. Its mobile design allows rapid setup, easy relocation, and reliable performance in construction, quarrying, and mining environments.

terratrakprimaryh

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

Primary Feature 1 (grizzly)

Integrated Heavy-Duty Grizzly Feeder

The Terratrak™ Jaw comes equipped with a heavy-duty grizzly feeder that pre-screens fines and ensures a regulated, continuous feed to the crusher. This reduces wear on the jaw chamber, improves throughput, and increases efficiency—especially critical in mobile applications with variable or sticky material.

Primary feature 2 (side conveyer)

Foldable Side Conveyor for Pre-screened Material

This beast features a foldable side conveyor to discharge fines separated by the grizzly feeder. This improves final product quality, reduces load on the main conveyor, and increases overall plant efficiency—especially useful when handling mixed feed or operating in high-volume conditions.

Primary feature 3 (rock chisel)

Optional Hydraulic Rock Chisel

The Terratrak™ Jaw can be equipped with an optional hydraulic rock chisel to manage oversized boulders at the feed point. This ensures continuous operation, prevents crusher blockages, and enhances safety—ideal for tough excavation sites where uncontrolled rock sizes are frequently encountered.

Primary feature 4 (Hydraulically opening hopper)

Hydraulically Foldable Hopper

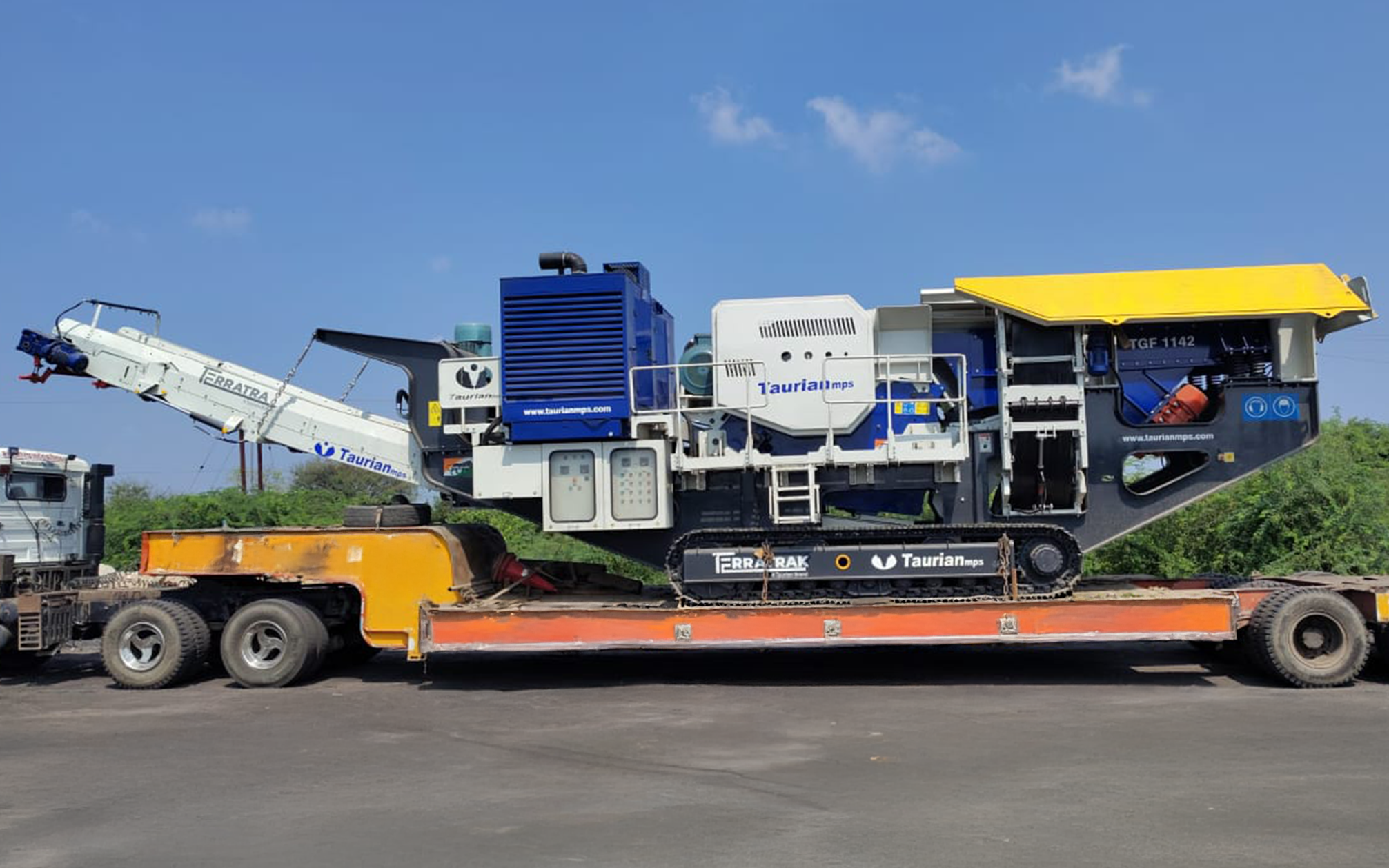

This includes a hydraulically foldable hopper for rapid deployment and easy transport. This feature minimizes setup time on site, reduces transport dimensions, and enhances operational flexibility—making it ideal for contractors working across multiple sites with tight timelines and logistical constraints.

Grizzly Feeder
Side Conveyor
Optional Rock Chisel
Hydraulically Foldable Hopper

Product Gallery

Terratrak excon
img 1 TT web
terratrak primary factory
terratrak TBA
terratrak primary
terratrakprimaryh
Terratrak 3
terratrak jaw
shahapur
Screenshot 2025 06 11 133830
tj primary thumbnail 010
Screenshot 2025 06 11 131258
Terratrak excon
img 1 TT web
terratrak primary factory
terratrak TBA
terratrak primary
tj primary 50
terratrakprimaryh
Terratrak 3
Sequence 013
terratrak jaw
shahapur

Technical Specifications

Track Mounted Jaw
DimensionsTT 150 JTT 200 JTT 300 J
Main ComponentJaw Crusher TJ150 (23 x 37 in)Jaw Crusher TJ200 (28 x 42 in)Jaw Crusher TJ300 (32 x 45 in)
Grizzly FeederGrizzly Feeder 1035-2SGrizzly Feeder 1142-2SGrizzly Feeder 1148-2S
Jaw CSS (Min / Max)60mm / 175mm70mm / 200mm70mm / 200mm
Plant CapacityUp to 200 TPHUp to 280 TPHUp to 350 TPH
Transport Weight45,500 Kgs50,500 Kgs54,300 Kgs
Electric Jaw Motor90 kW110 kW132 kW
Engine PowerCummins/Scania 250 KWA engine for tracking and movement.
