Mobile Crushing. Primary Power.

A wheeled primary crushing solution built around a high-performance jaw crusher mounted on a robust, towable chassis. Designed for quick deployment and site-to-site mobility, it delivers aggressive feed intake and high crushing capacity—ideal for quarrying, roadworks, and remote crushing operations.

  1. Home
  2. Products
  3. Wheeler
  4. Wheeler Jaw
2013 x1258 wheel jaw
Key Benefits

The Wheel Mounted Primary Crusher

High-capacity primary crushing on wheels—engineered for mobility, built for performance.

wheeler jaw
Mobile Primary Crushing
Mobile Primary Crushing

Mounted on a wheeled chassis for rapid site deployment and easy relocation—ideal for projects requiring short setup times and flexibility.

High-Capacity Feed Intake
High-Capacity Feed Intake

Equipped with a wide hopper and integrated grizzly feeder to handle coarse material efficiently and ensure smooth, regulated flow to the jaw chamber.

Standalone or Circuit-Ready
Standalone or Circuit-Ready

Operates independently or as part of a multi-stage setup—perfect for infrastructure, mining, or contractor-driven crushing projects.

Quick Setup and Low Downtime
Quick Setup and Low Downtime

Hydraulic jacks, centralized controls, and simplified design allow for fast commissioning and minimal maintenance across sites.

wheeler jaw
What We Offer

Crushing Power. Mobilized.

Its wide feed opening, efficient grizzly feeder, and aggressive nip angle ensure smooth material flow and excellent reduction ratios across a variety of rock types. With easy transportability and consistent crushing capacity, the Wheeler Jaw empowers contractors to take control of production timelines without sacrificing throughput, reliability, or final product quality.

IMAG0535

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

WJ 1175 feature 7

Set Up Fast. Stay Stable.

Wheeler Jaw is equipped with hydraulic support legs for rapid setup and leveling. These legs provide excellent stability on uneven terrain, reduce setup time, and eliminate the need for external supports.

Set up Edited

Ready in 10 Minutes

Designed for speed and convenience, the Taurian Wheeler Jaw can be operational within 10 minutes of reaching the site. No complex civil work or assembly required—just park, power, and produce.

WJ 1175 feature 1

Screen Early. Crush Efficiently.

It features a heavy-duty grizzly feeder that scalps fines before material enters the jaw chamber. This reduces wear, improves crusher efficiency, and ensures smoother, more consistent crushing performance under variable feed conditions.

Transport feature 1

Easy Transport Configuration

Its compact footprint, foldable discharge conveyors, and axle-mounted frame make it road-legal and easy to tow across jobsites without dismantling major components.

electric Drive

Electric Driven

Available in a fully electric version for zero local emissions and lower operating costs. Ideal for quarries with grid power access or those prioritizing sustainability and compliance with environmental norms.

Hydraulic Support Legs
10 min setup
Integrated Grizzly Feeder
Easy Transport Configuration
Electric Driven

Product Gallery

IMAG0535
img 1 Wheeler web
img 2 Wheeler web
Wheeler web 2
wheeler jaw
prabhani 2
kohlapur web 3
Screenshot 2025 06 09 104908
Screenshot 2026 01 19 113036
IMAG0535

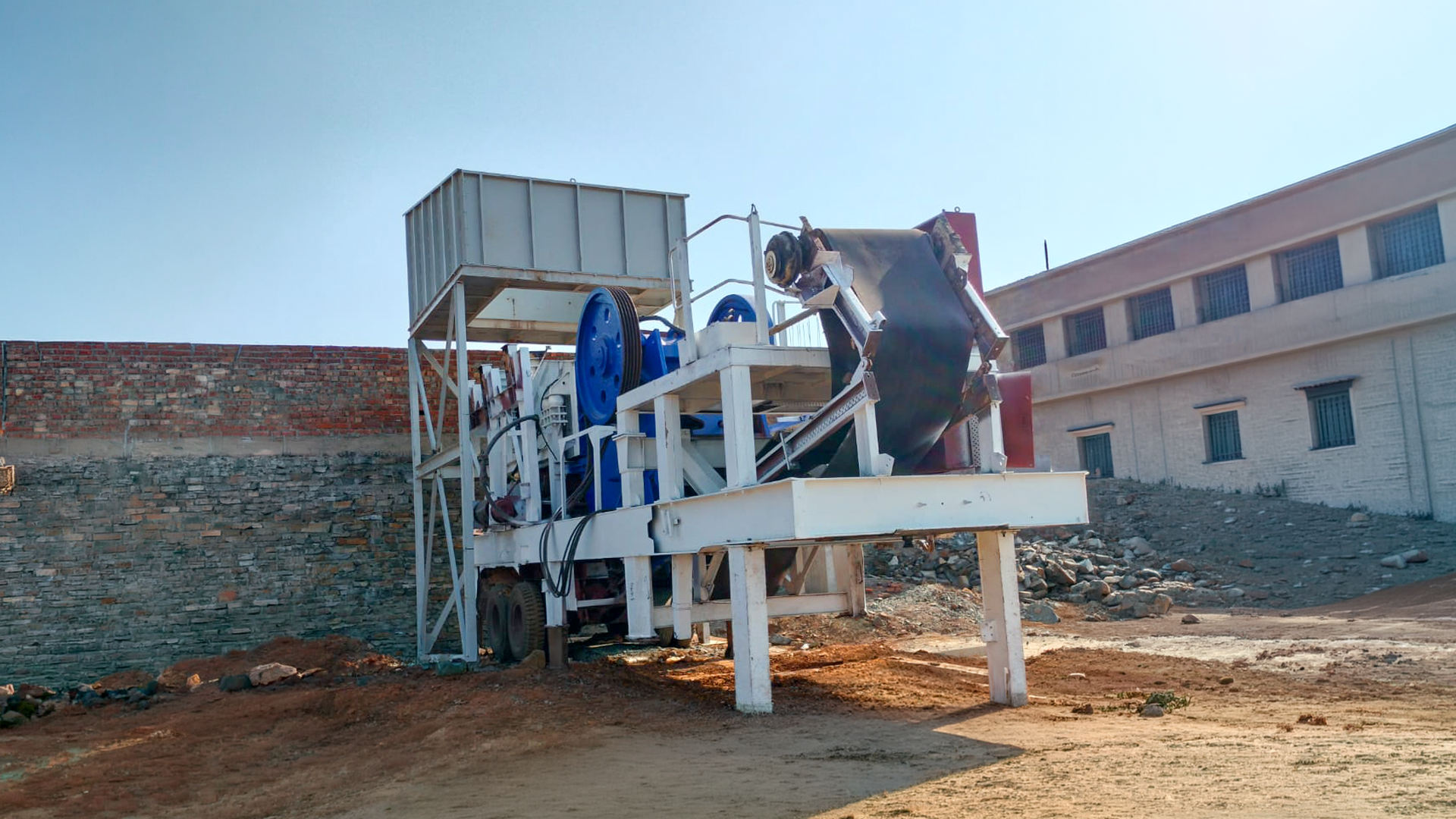

Wheeler jaw 01
img 1 Wheeler web
Sequence 01_2000
img 2 Wheeler web
Wheeler web 2
wheeler jaw
prabhani 2
kohlapur web 3

Technical Specifications

Wheeler Jaw
ModelTW 150 JTW 200 JTW 300 J
Working (L x W x H)13000 x 3600 x 450013500 x 3800 x 485014000 x 3800 x 4980
Transport (L x W x H)13000 x 2800 x 375013500 x 3000 x 385014000 x 3000 x 4000
Weight38500 kg45000 kg48500 kg
Feed opening930 x 580 mm1060 x 700 mm1150 x 800 mm
Feed size510 mm560 mm650 mm
CSS range60–140 mm70–140 mm70–140 mm
Capacity140–200 TPH180–280 TPH250–350 TPH
Motor90 kW110 kW132 kW
Jaw crusherTJ 150TJ 200TJ 300
Grizzly feederTGF 1035-2STGF 1142-2STGF 1148-2S

Downloads for Wheeler Series Jaw Crusher

Wheeler Series Jaw Crusher

Case Studies

You May Be Interested in These Projects

customer story img 1

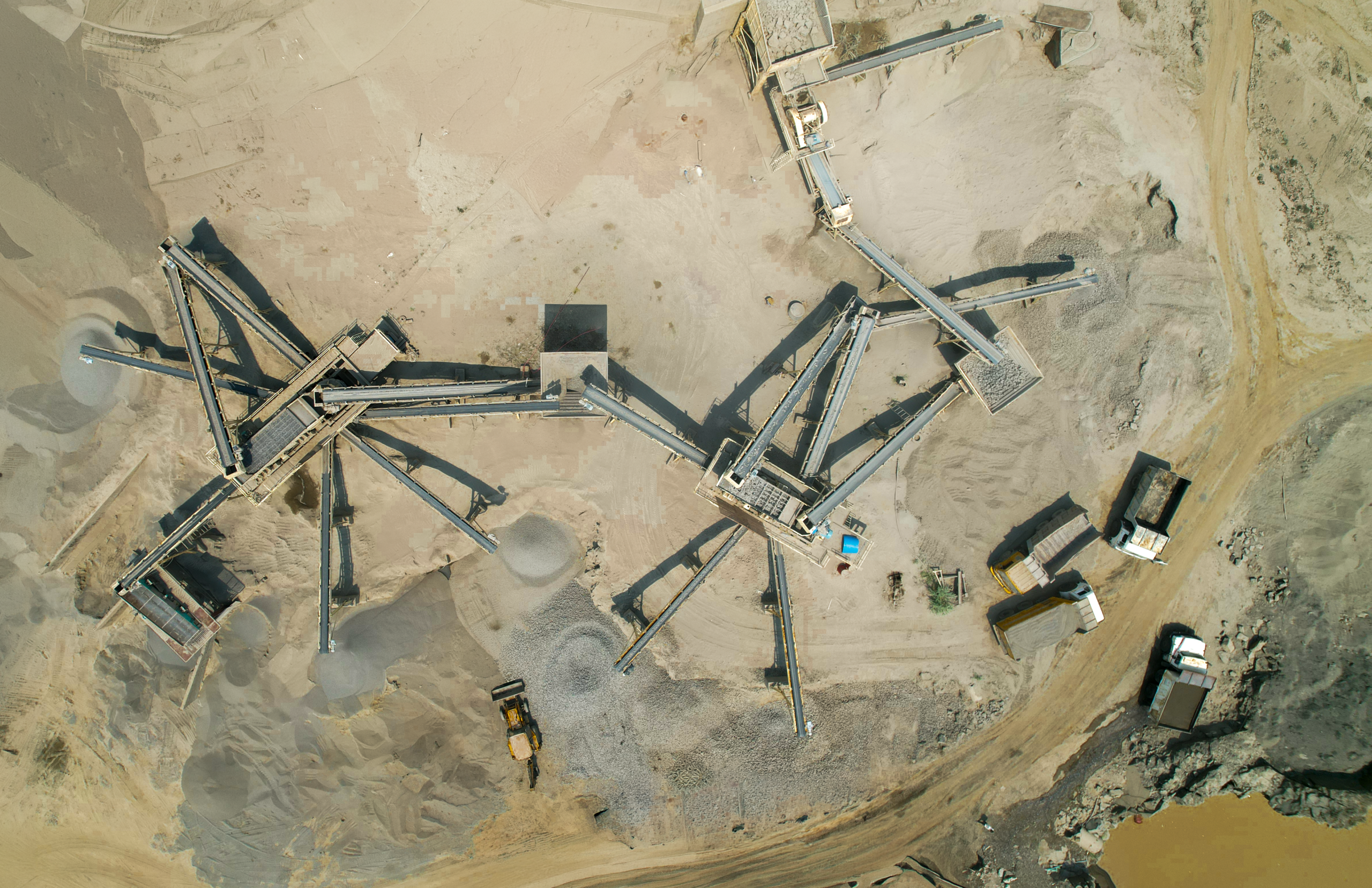

Enhancing Operational Efficiency and Mobility with Taurian's 250 TPH Wheeled 3-Stage Crusher Plant.
