Cone Crusher

CB Series™ Cone Crusher

Fixed Shaft. Steep Angle. Maximum Throughput.

The Taurian CB Series™ Cone Crusher delivers reliable secondary and tertiary crushing with high throughput and consistent gradation. Featuring a steep crushing angle, hydraulic CSS adjustment, and tramp relief, it ensures smooth operation and easy maintenance. Built for hard, abrasive materials, it offers durable, energy-efficient performance across mining and aggregates.

Key Benefits

Efficient and Versatile Crushing for Demanding Applications

High-Efficiency Crushing Powered by Roller Bearing Technology

What We Offer

Taurian CB Series™ — Built for fine crushing

It features a precision-engineered chamber for uniform particle size and excellent shape. Its advanced hydraulics enable fast CSS adjustments, tramp relief, and clearing. Built on a rugged mainframe with efficient power transfer and optional automation, it ensures high-throughput, low-cost crushing with minimal downtime—ideal for mining, aggregates, and industrial mineral applications.

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

Hydraulics That Keep You Running

The CB Series™ features robust hydraulic cylinders that enable quick CSS adjustments, tramp relief, and chamber clearing. This enhances operational control, improves safety, and minimizes downtime—allowing the crusher to adapt easily to changing feed conditions while maintaining consistent performance and protection from overloads.

Reliable Bearing Design for Smooth Operation

The CB Series™ cone crusher uses a time-tested roller bearing design that reduces friction, enhances load distribution, and improves mechanical efficiency. This results in smoother operation, lower power consumption, and longer service life—ideal for high-speed, high-throughput crushing in demanding secondary and tertiary applications.

High Bearing RPM for Finer Crushing

The CB Series™ cone crusher operates at higher bearing RPM, enabling faster mantle movement and finer crushing. This high-speed design enhances reduction ratios, improves particle shape, and increases throughput—making it ideal for precision-driven secondary and tertiary applications where product quality and consistency are critical.

Tramp Relief for Protection and Uptime

The CB Series™ cone crusher is equipped with a responsive hydraulic tramp relief system that protects the crusher from uncrushable materials. It automatically opens to release pressure, then resets—minimizing damage, reducing downtime, and ensuring continuous, safe operation even under tough and unpredictable feed conditions.

Hydraulic Cylinders

Bearing Design

High Bearing RPM

Tramp Relief System

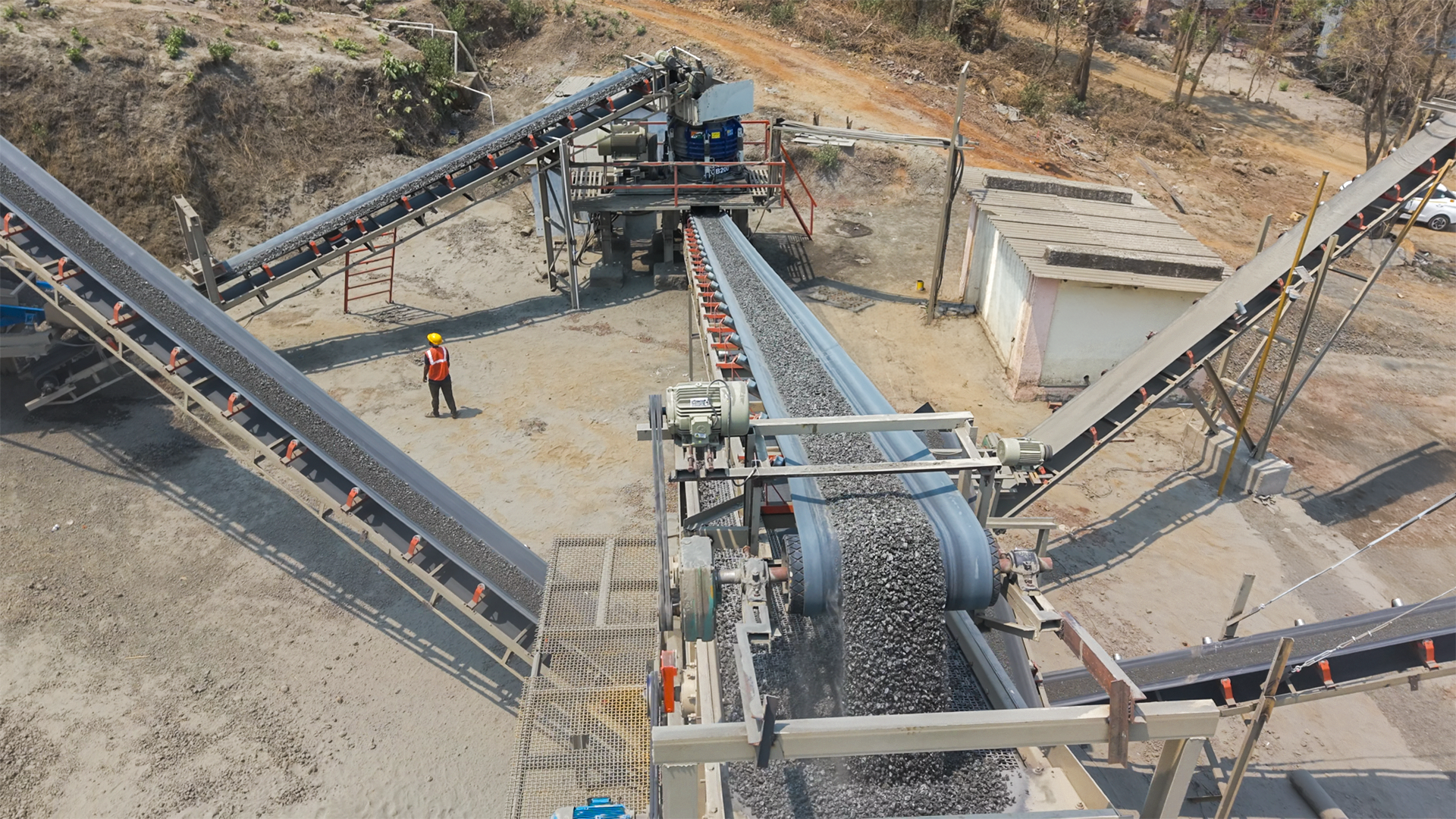

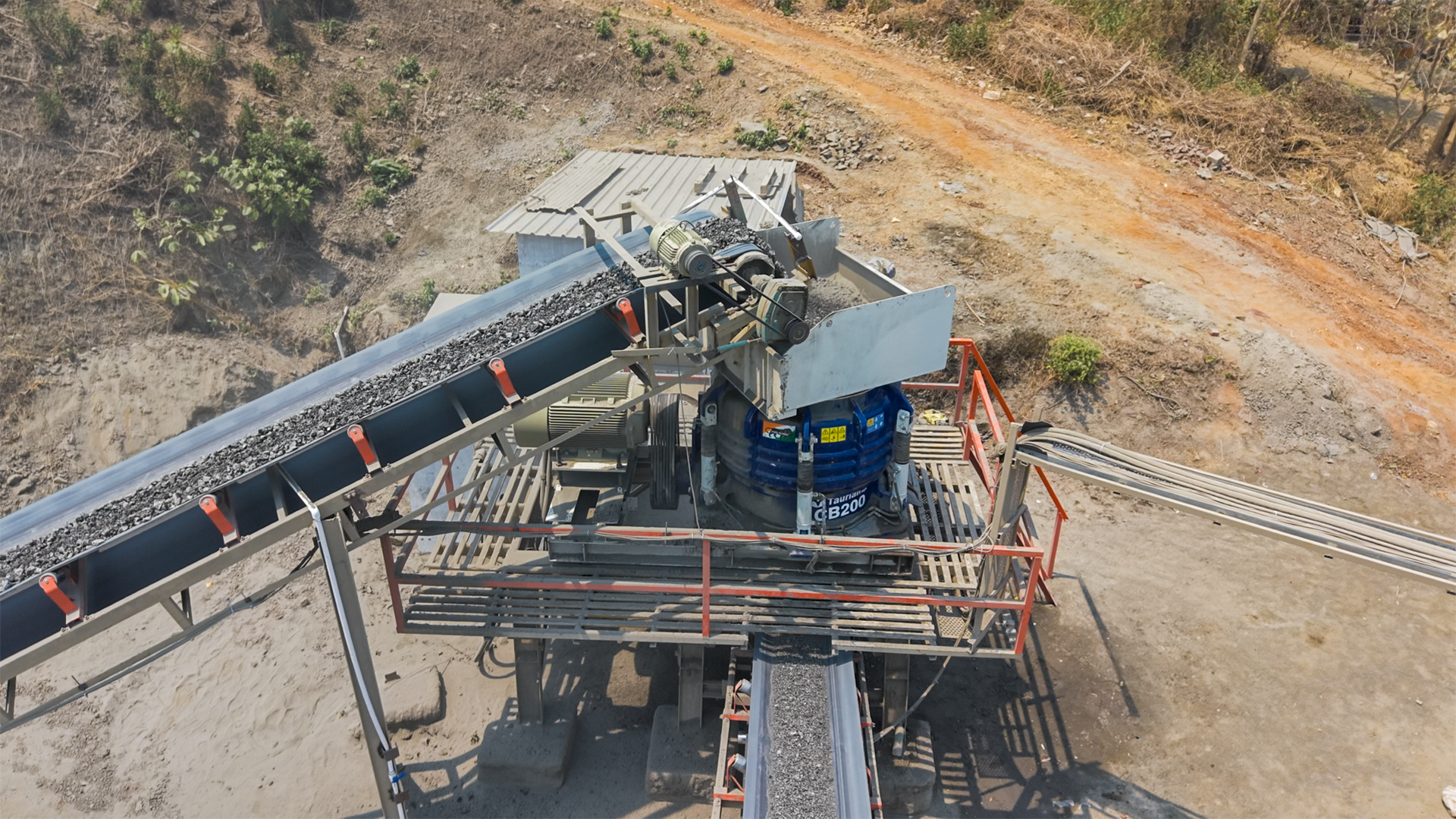

Product Gallery

Technical Specifications

Drive Details
CSS and Capacities Fine Chamber
CSS and Capacities Standard Chamber

Drive Details

Model		CB 200 Short Throw	CB 200 Long Throw	CB 300 Standard
Power Required	KW	160	170	225
Power Required	HP	215	230	300
Pulley P.C. Diameter	mm	630	630	630
Pulley P.C. Diameter	inches	24 3/4	24 3/4	24 3/4
Pulley Face Width	mm	213	213	213
Pulley Face Width	inches	8 3/8	8 3/8	8 3/8
Pulley Speed	rpm	936	936	718
V - Belts		8 - SPC	8 - SPC	8 - SPC

CSS and Capacities Fine Chamber

Fine Chamber	Approximate Capacities
Fine Chamber	Maximum Feed Size mm	Closed Side Setting	13 mm	16 mm	19 mm	22 mm
CB200 Short Throw	63	Mtph	70 - 100	80 - 110	85 - 125
CB200 Long Throw	63	Mtph	85 - 120	95 - 130	100 - 150
CB300 Standard	63	Mtph	165 - 185	180 - 200	195 - 220	210 - 240

CSS and Capacities Standard Chamber

Standard Chamber	Approximate Capacities
Standard Chamber	Max Feed Size (mm)	Closed Side Setting	16 mm	19 mm	22 mm	25 mm	28 mm	32 mm
CB200 M.C Short Throw	160	Mtph	90-110	105-120	115-140	120-150	130-160
CB200 X.C Short Throw	195	Mtph		105-120	115-150	135-160	145-170	150-180
CB200 M.C Long Throw	160	Mtph		125-145	140-170	145-180	155-190
CB200 X.C Long Throw	195	Mtph			140-180	165-195	175-205	180-220
CB300 Standard	220	Mtph			220-255	235-275	250-295	260-320
