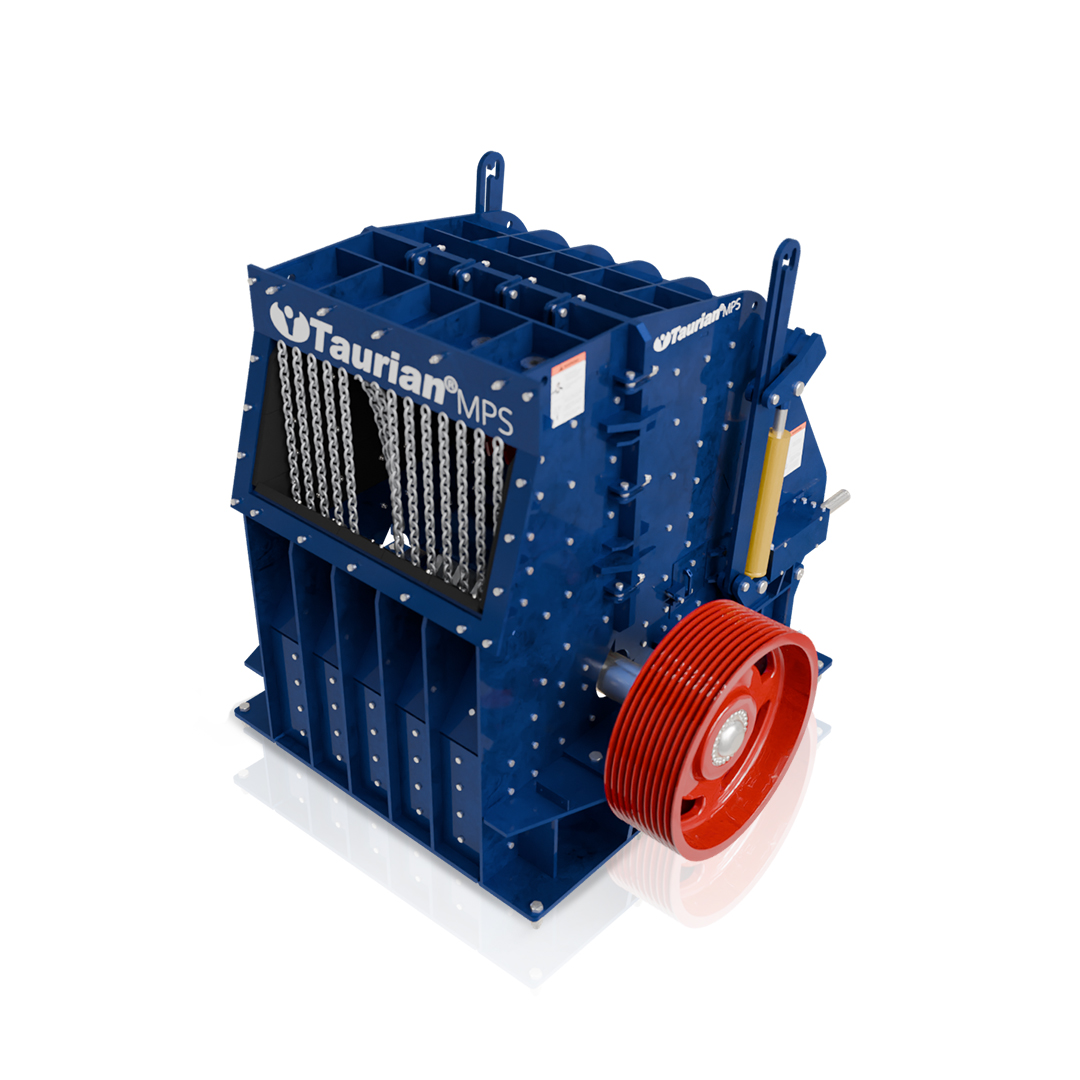

Horizontal Shaft Impactor (Primary)

High-Speed Impact. High-Quality Output.

The Primary Horizontal Shaft Impactor (HSI) is designed for efficient primary crushing of large feed material, delivering high reduction ratios in a single stage. Its robust rotor and reinforced impact aprons generate strong, consistent impact energy, ensuring uniform fragmentation and controlled output sizing.

Key Benefits

High reduction, uniform output, lower operating cost

Efficient single-stage crushing with consistent output and lower costs.

Product Features

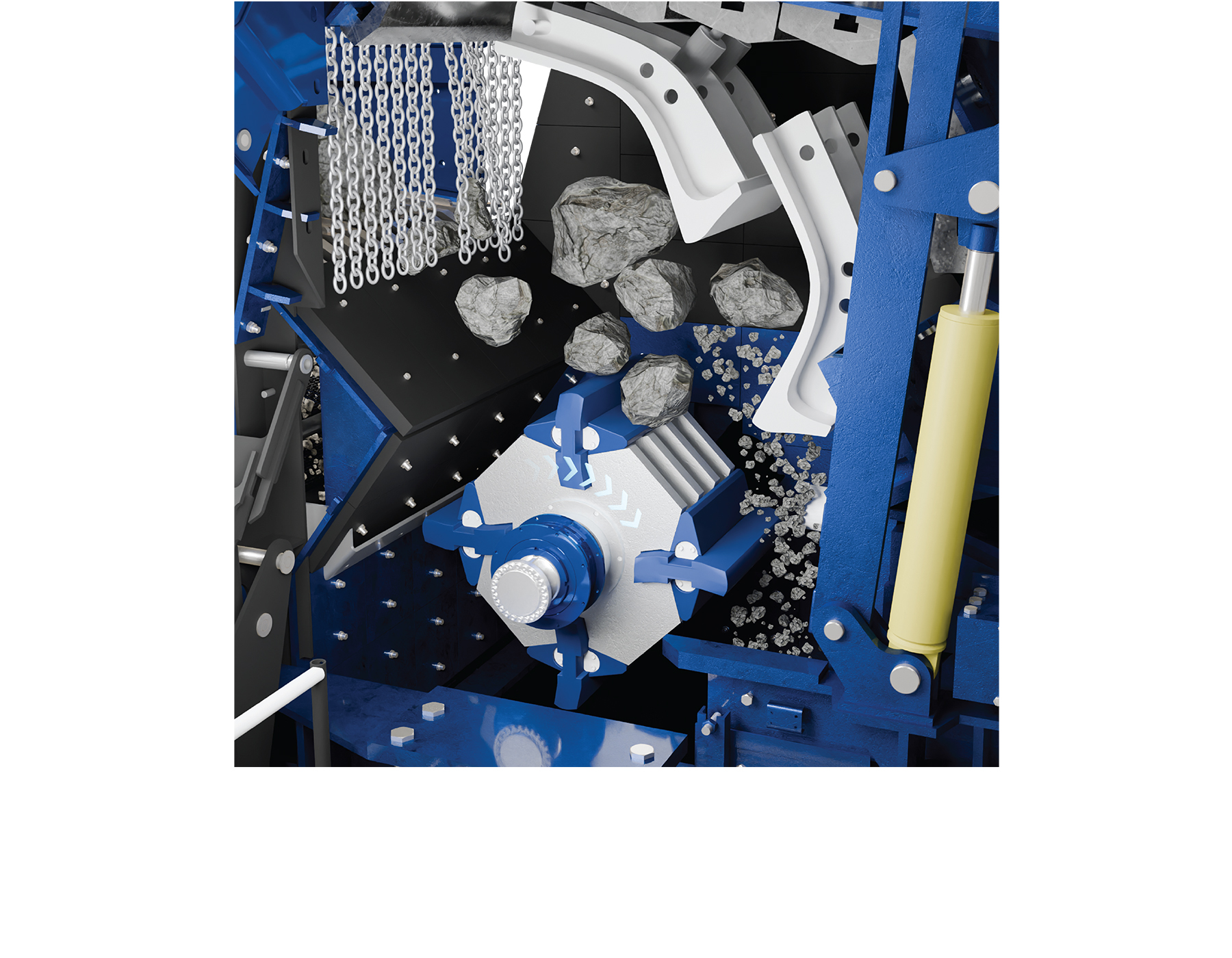

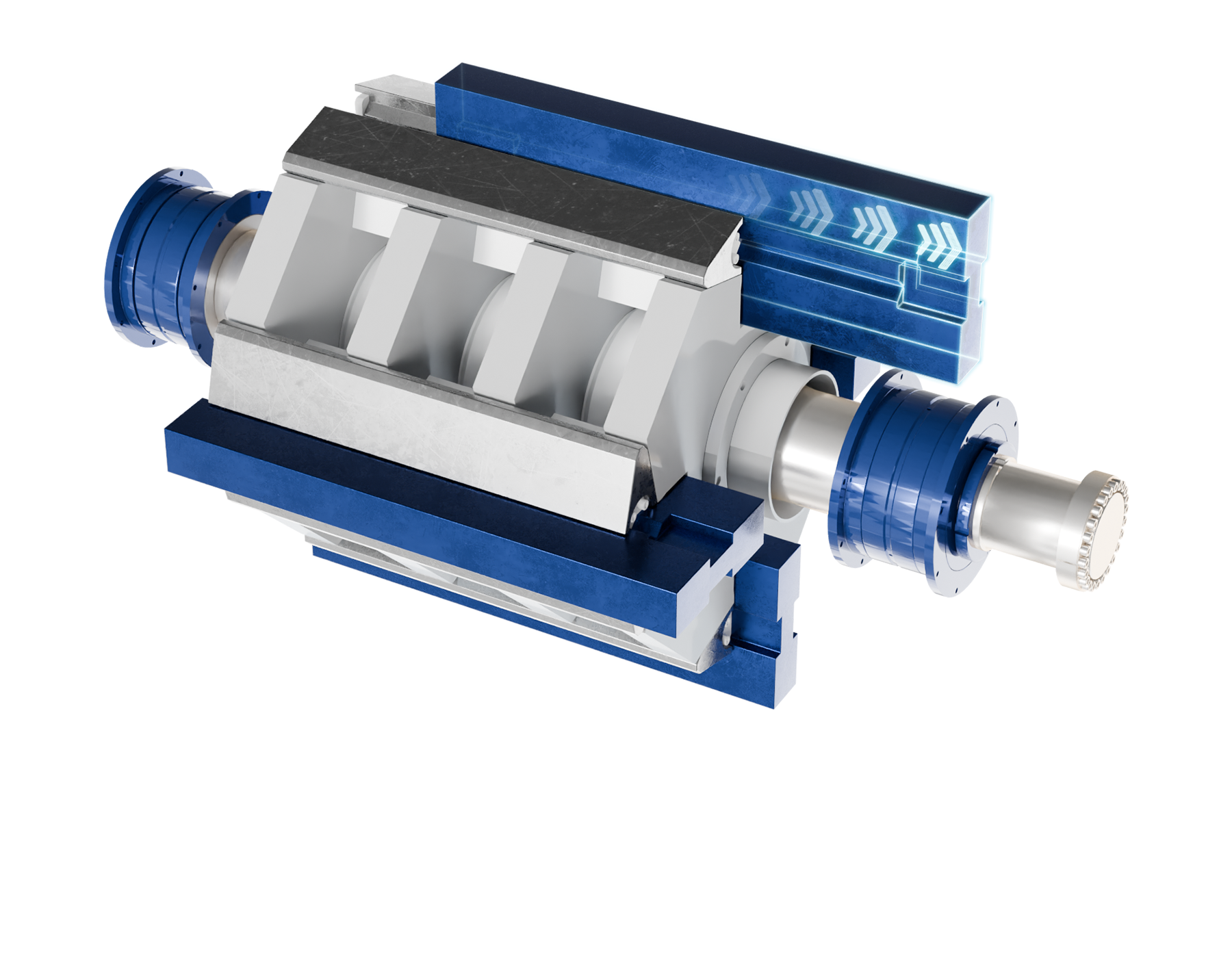

Robust rotor and adjustable aprons for consistent, controlled crushing.

Icon Text

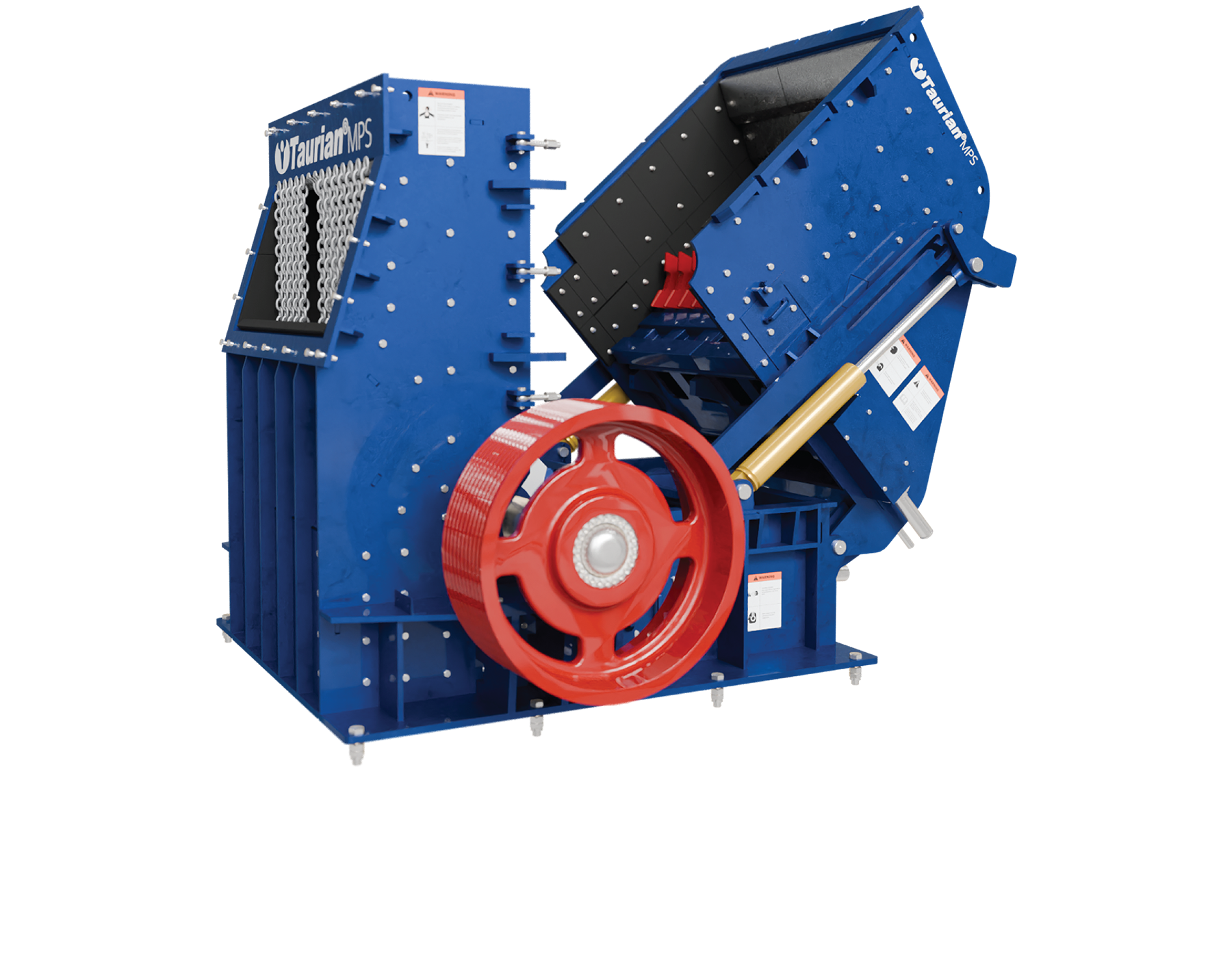

Product Gallery

Technical Specifiactions

Primary Crusher (HSI)

Primary Crusher (HSI)

Model	TI 1111P	TI 1012P	TI 1114P	TI 1313P	TI 1515P	TI 1620P
Feed opening	1140 x 950 mm	1140 x 840 mm	1410 x 950 mm	1340 x 1000 mm	1540 x 920 mm	2040 x 1400 mm
Max feed size	600 mm	600 mm	600 mm	900 mm	850 mm	1300 mm
Capacity	150-200 TPH	150-200 TPH	250-350 TPH	300-500 TPH	400-600 TPH	600-950 TPH
Rotor diameter	1100 mm	1100 mm	1100 mm	1300 mm	1500 mm	1600 mm
Rotor width	1100 mm	1100 mm	1400 mm	1300 mm	1500 mm	2000 mm
Power	160 kW	160 kW	200 kW	250 kW	315 kW	2 x 250 kW
Weight	15100 kg	13150 kg	16800 kg	22400 kg	26800 kg	40500 kg
