Terratrak™

Track Inclined Screen

Terratrak tertiary

Mobile Screening with Maximum Accuracy

Engineered for fast setup and relocation, the Terratrak™ Inclined Screen comes equipped with hydraulically folding conveyors, an integrated feed hopper, and user-friendly controls. Its versatility allows it to operate as a standalone screening plant or in tandem with crushing units for multi-stage processing.

  1. Home
  2. Products
  3. Terratrak
  4. Track Inclined Screen
Terratrak tertiary
Key Benefits

Heavy-Duty Screening, Light on Maintenance

Your On-Site Sorting Solution – Fast, Precise, Mobile

Terratrak tertiary
Unmatched Mobility
Unmatched Mobility

- Track-driven chassis moves between sites without trailers (30% faster setup)
- Compact transport dimensions fit standard low-loaders for cost-effective relocation

Intelligent Screening Tech
Intelligent Screening Tech

- Dual-slope screen box adapts to material type (steep for sticky, flat for free-flowing)
- Non-clogging mesh designs boost uptime by 40% in challenging materials

Smart Operation
Smart Operation

- Taurian Automation touchscreen with preset programs for different materials
- Remote monitoring via TAURIAN NEXUS for real-time diagnostics

Power & Efficiency
Power & Efficiency

- Diesel-electric drive cuts fuel costs by 35% vs. hydraulic systems
- Load-sensing hydraulics automatically match engine power to screening demand

Superior Output Quality
Superior Output Quality

- Flip-flow screens for precise 0-5mm fractions (ideal for asphalt/chips)
- 3-deck variants produce up to 4 calibrated fractions simultaneously

Terratrak tertiary
What We Offer

High-efficiency separation wherever your site takes you

This track-mounted screening unit designed for precise classification of aggregates, sand, and minerals across a wide range of applications. Featuring a robust triple-shaft mechanism and adjustable screen angles, it delivers high throw and excellent stratification—ensuring consistent throughput and sharp separation across all decks.

terratrak tertiary

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

Screen Edited 2

Adjustable Screen box (18°–30°)

This mega screen features hydraulically adjustable screen box angles between 18° and 30°, allowing operators to fine-tune stroke and material flow—maximizing stratification, screening efficiency, and adaptability to varied material types and moisture content.

Folding Edited

Hydraulically Rotating Conveyor

It offers a hydraulically rotating side conveyor, enabling flexible discharge positioning without repositioning the entire machine. Ideal for multi-pile setups, space-constrained sites, and reducing loader movement during operation.

Power from secondary

External Power via Secondary Track Unit

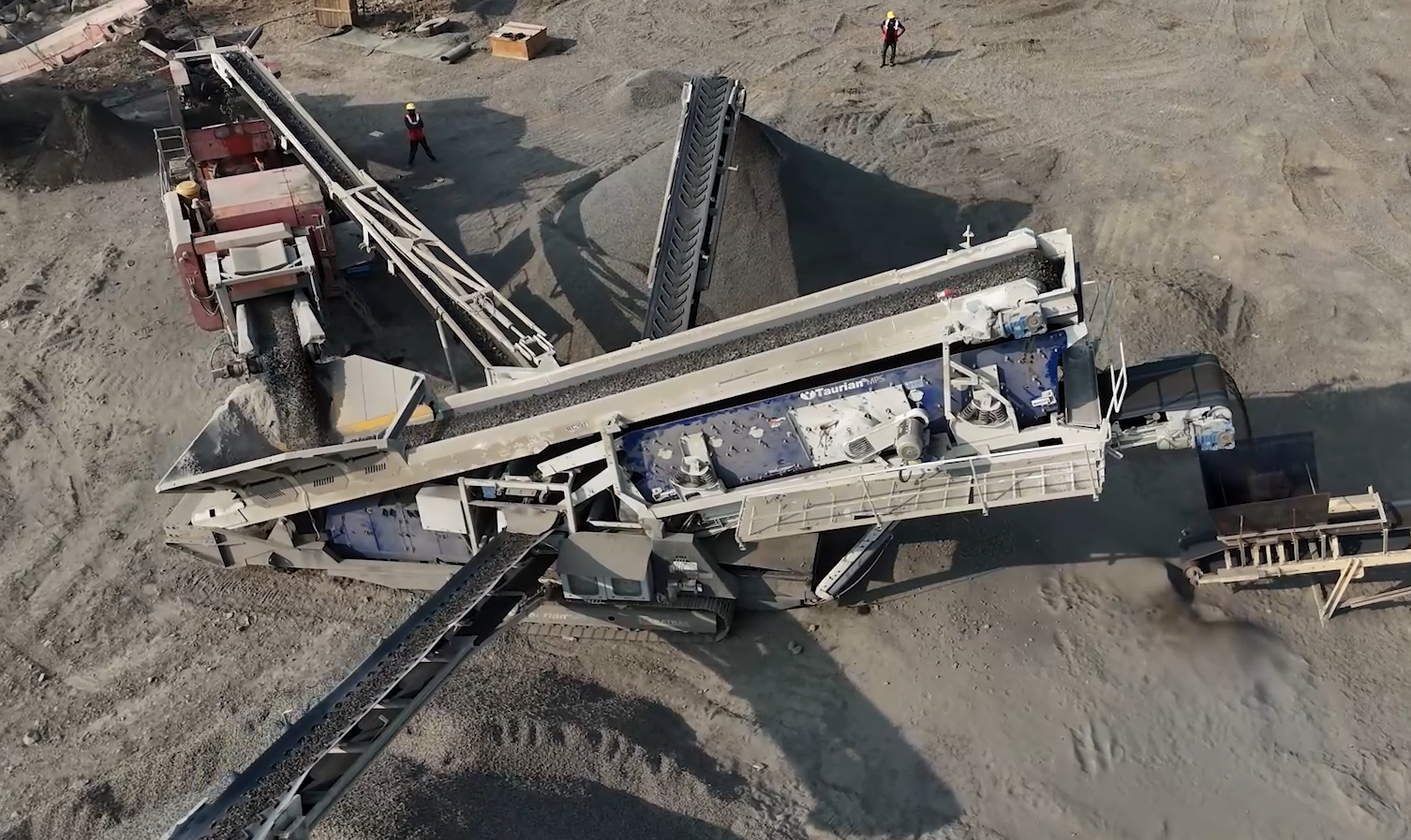

This beast can be externally powered by a secondary track-mounted crusher or cone unit, reducing fuel use, simplifying site logistics, and enabling synchronized, energy-efficient operation across the mobile crushing and screening circuit.

Rotating edited

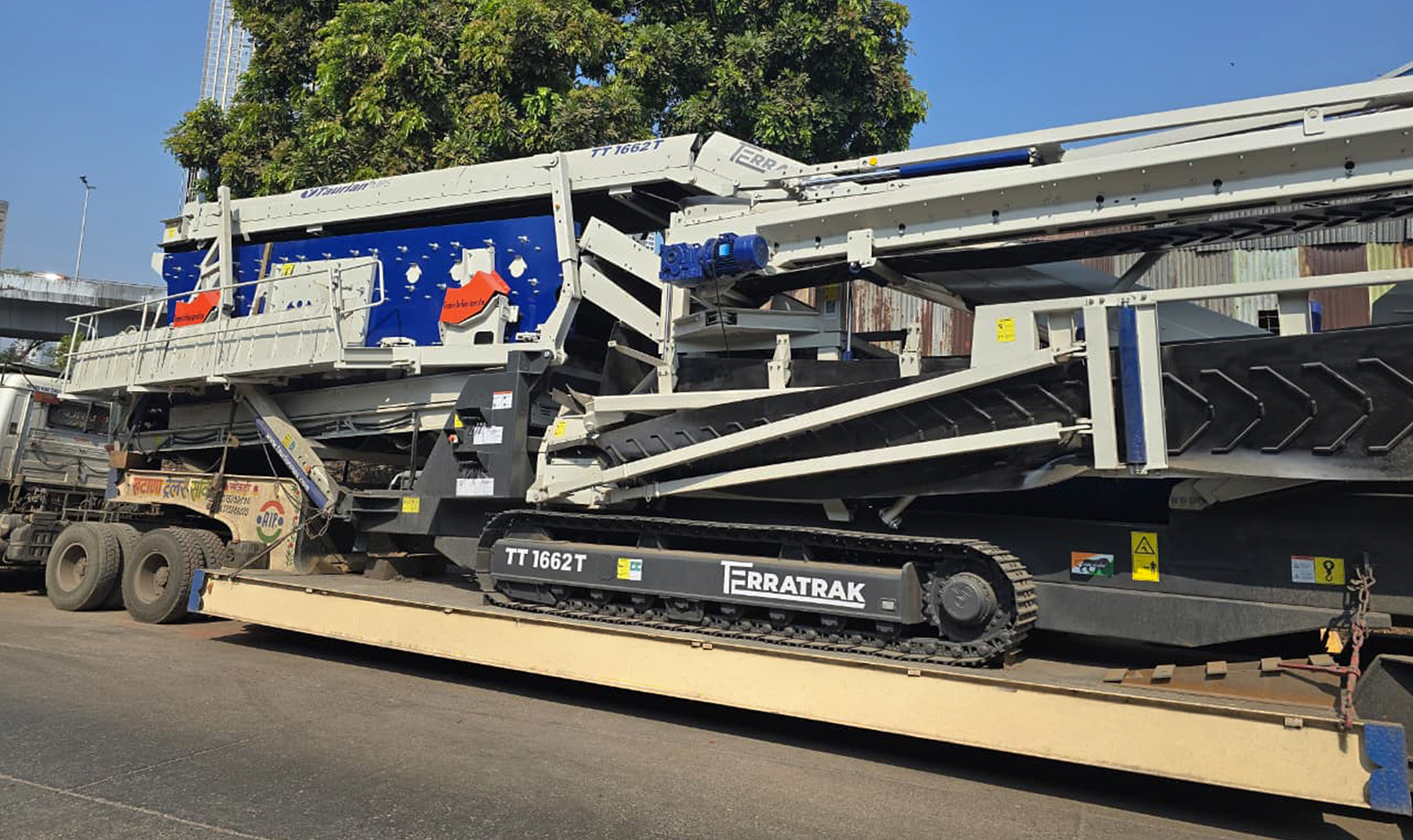

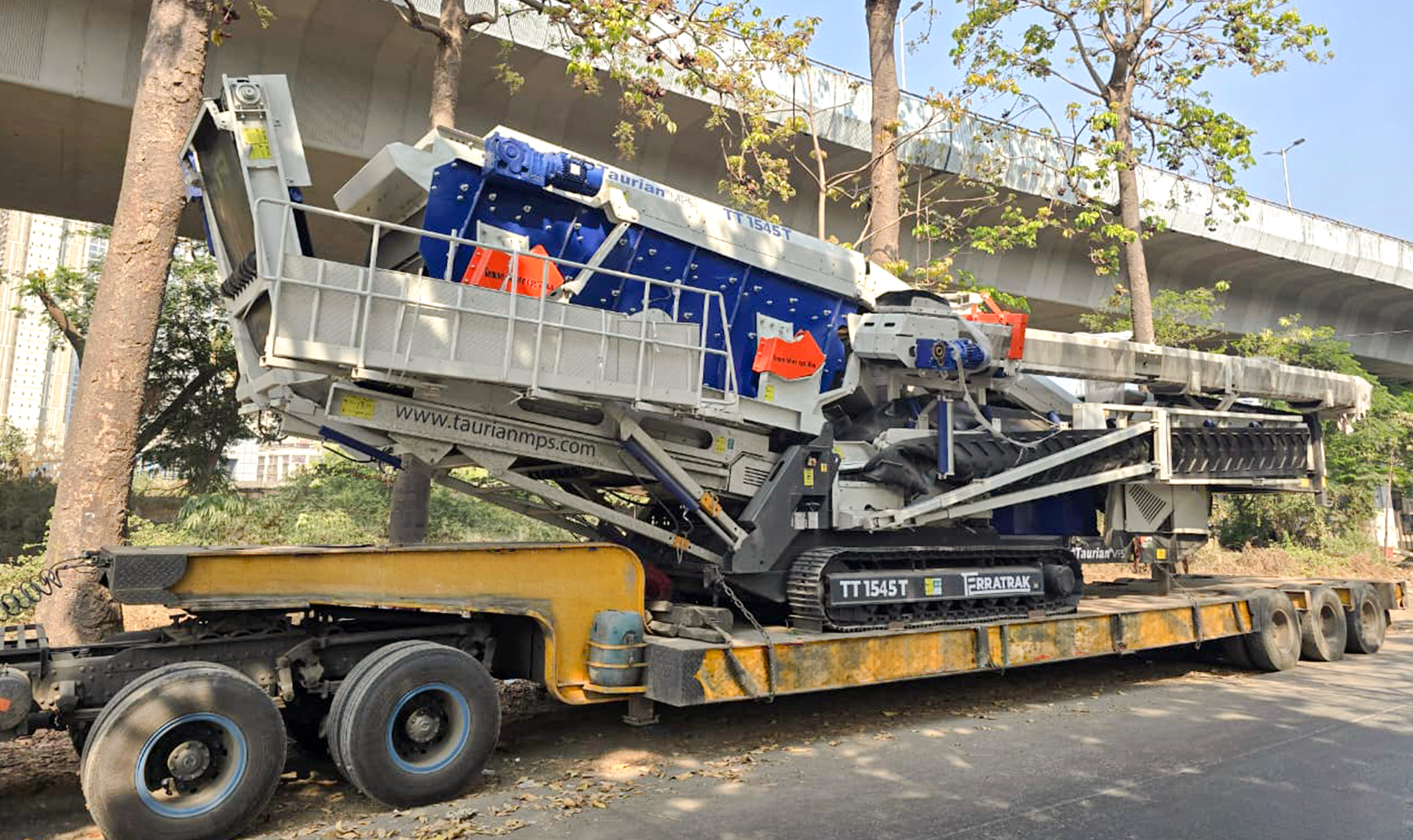

Folding Conveyors for Easy Transport

These inclined screens are equipped with hydraulically folding conveyors, allowing the entire unit to be compacted for quick setup and hassle-free transport. This feature reduces mobilization time and simplifies movement between sites, making it ideal for high-frequency relocations.

Multiple Screen Angles
Rotating Conveyor
External Power
Folding Conveyors for Easy Transport

Product Gallery

img 5 TT web
1800 x 1070 Web gallery
tt 1662 t – 02
terratrak tertiary

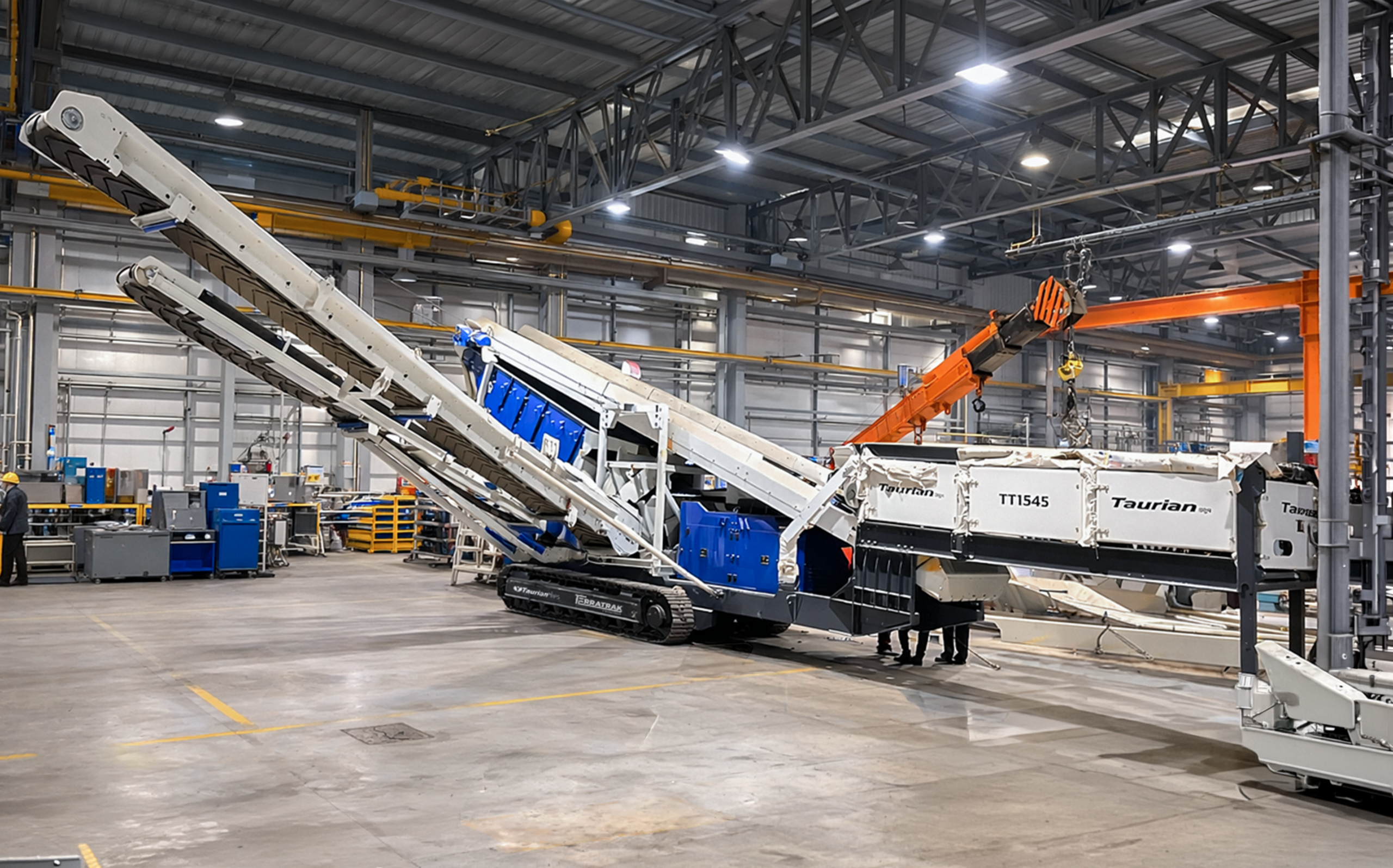

TERRATRAK FACTORY
terratrak primary
terratrak factory
tba 2

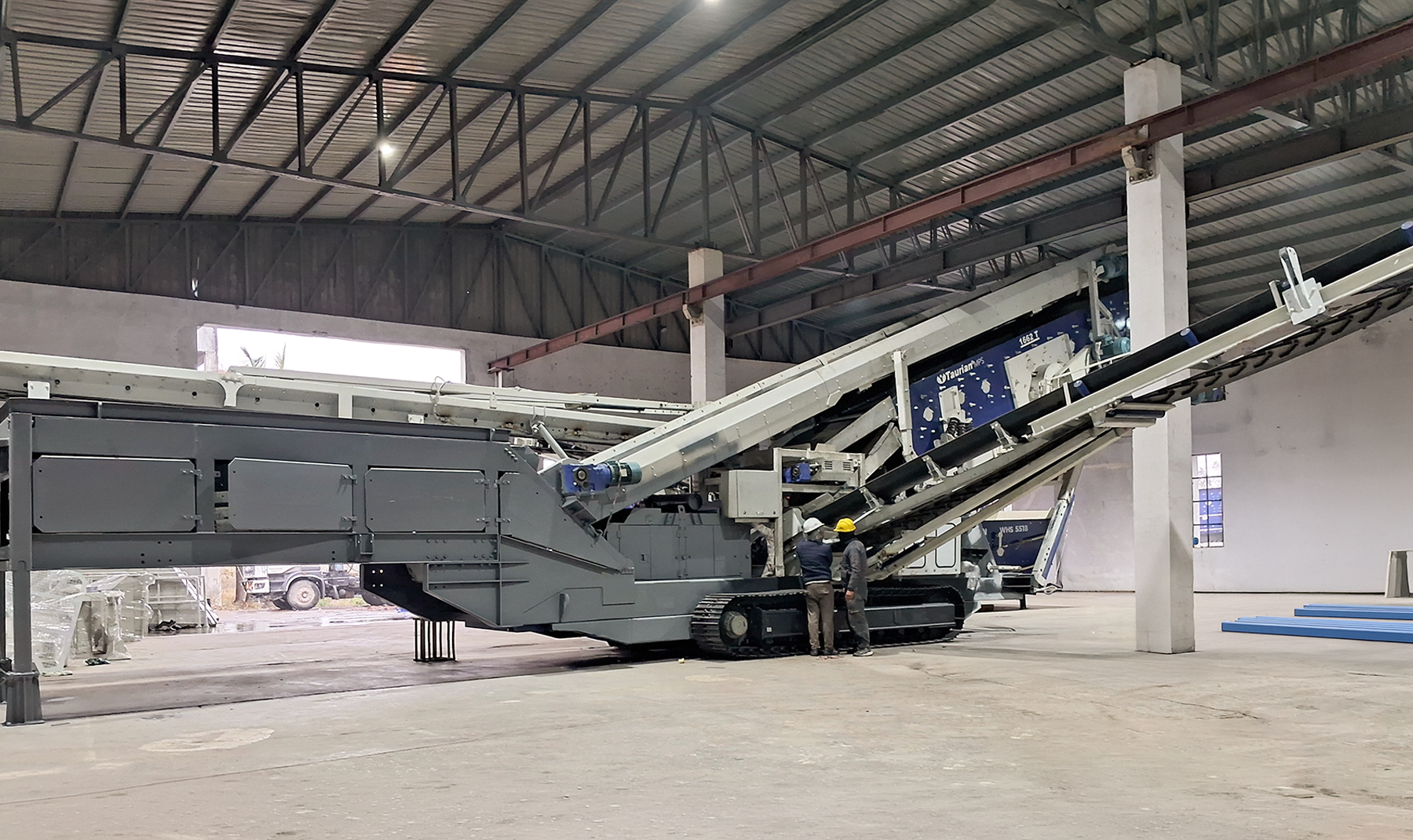

track screen factory
TBA Infra03
‌Inclined screen 0
tt screen img0
img 5 TT web
JAMMU_TBA_TRACK SCREEN3
1800 x 1070 Web gallery
Inclined thumbnail
tt 1662 t – 02
TT Tertiary image0012
terratrak tertiary
TERRATRAK FACTORY
terratrak primary
terratrak factory
tba 2
track screen factory
TBA Infra03

Technical Specifications

Track Inclined Screen
Track Inclined Screen
DimensionsTT 1545TT 1545 TTT 1662TT 1662 T
Screen Size4.5 m x 1.5 m4.5 m x 1.5 m6.2 m x 1.6 m6.2 m x 1.6 m
Decks2323
Screen Motor Size11 kW15 kW15 kW22 kW
Capacity (TPH)200-300 TPH200-300 TPH250-350 TPH250-350 TPH
Transport Weight40000 kg42000 kg43000 kg45000 kg
Engine PowerCummins/Scania 125 kWA engine for tracking and movement.
