Mobile Sand Power. Maximum Output.

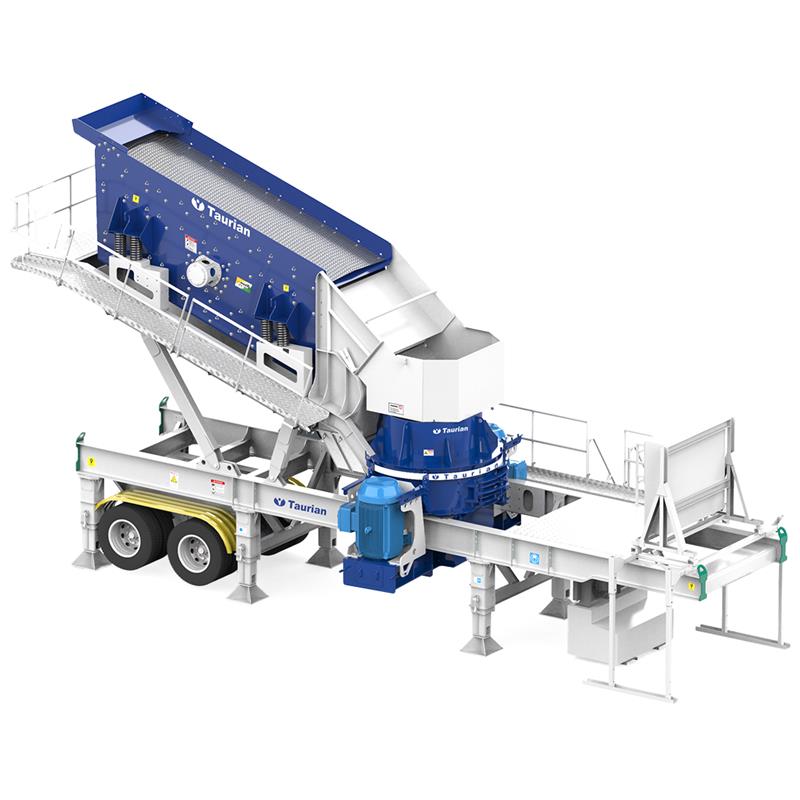

A wheel-mounted VSI crushing unit engineered for producing high-quality manufactured sand and cubical aggregates on the move. Designed around Taurian’s proven high-speed VSI technology, it uses autogenous rock-on-rock impact to deliver superior shaping, low flakiness, and consistent gradation—ideal for asphalt, concrete, and plaster sand applications.

  1. Home
  2. Products
  3. Wheeler
  4. Wheeler VSI
Wheeler VSI . jpg
Key Benefits

The Wheel Mounted Vertical Shaft Impactor

Built-in Benefits. On-the-Move Performance.

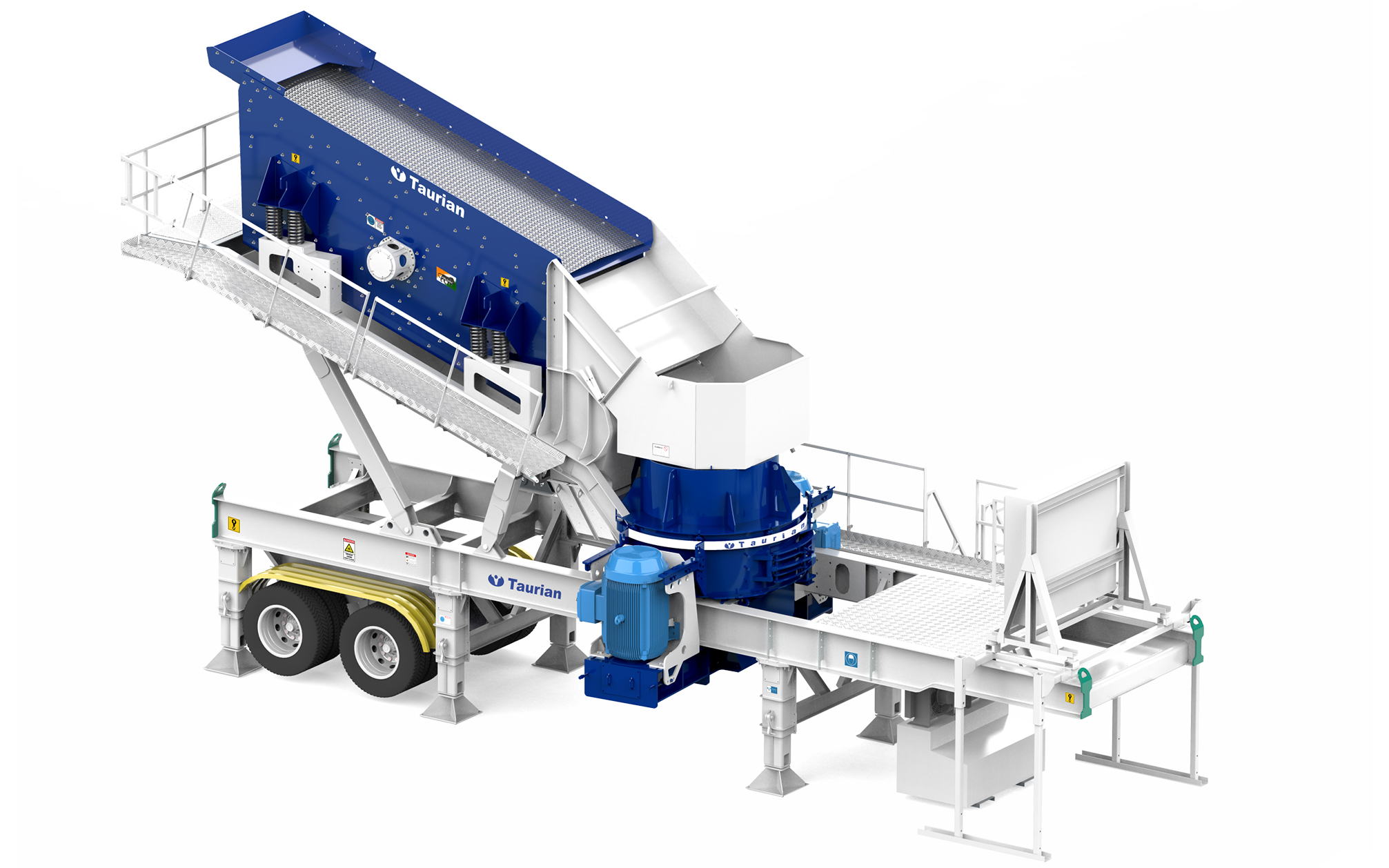

WHEEL VSI
Mobile Sand Production
Mobile Sand Production

Mounted on a heavy-duty wheeled chassis for easy transport and fast setup at any job site—ideal for contractors, quarries, and remote operations.

Versatile Integration
Versatile Integration

Functions as a standalone unit or part of a portable multi-stage plant—compatible with screens, classifiers, and washing circuits.

Low Wear & Maintenance
Low Wear & Maintenance

Optimized rotor design and wear-resistant parts reduce operating costs and downtime while maximizing output efficiency and consistency.

Superior Shaping Performance
Superior Shaping Performance

Delivers premium-quality plaster and concrete sand with low flakiness and excellent cubical shape using high-speed rock-on-rock autogenous crushing.

WHEEL VSI
What We Offer

The Sand Maker That Moves With You

Housed on a rugged, towable chassis, the Wheeler VSI™ offers plug-and-play mobility with integrated conveyors, optional air classifiers, and hydraulic jacks for quick setup. Whether deployed as a standalone sand machine or integrated into a complete portable plant, it ensures reliable output, minimal wear, and high energy efficiency—all in a format that’s easy to relocate and commission.

Wheeler web 2

Product Features

Engineered for safe, seamless operation—making crushing simpler and more efficient.

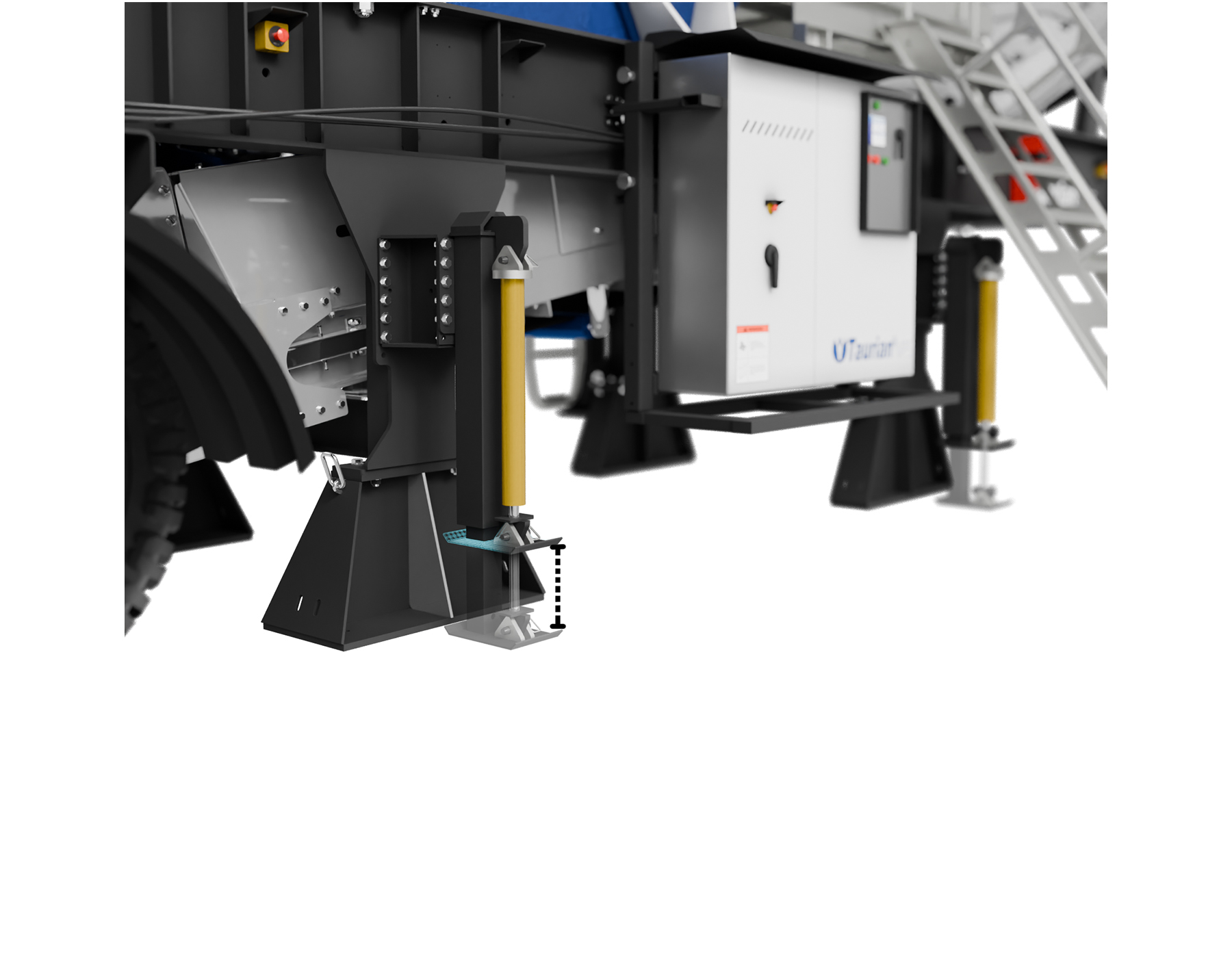

Hydraulic Support Legs

Set Up Fast. Stay Stable.

Wheeler VSI is equipped with hydraulic support legs for rapid setup and leveling. These legs provide excellent stability on uneven terrain, reduce setup time, and eliminate the need for external supports.

Ready in 10 Minutes

Designed for speed and convenience, the Taurian Wheeler VSI can be operational within 10 minutes of reaching the site. No complex civil work or assembly required—just park, power, and produce.

Hydraulic Support Legs
Transport with truck
Electric driven

Product Gallery

img 2 Wheeler web
kohlapur web 1
img 1 Wheeler web
WHEEL ALL
VSI 2
VSI 6
Kekri 1
Sequence 010
img 2 Wheeler web
kohlapur web 1
img 1 Wheeler web
WHEEL ALL
VSI 2
VSI 6
Kekri 1

Technical Specifications

Wheeler VSI
ModelTW 150 VTW 320 VTW 600 V
Working (L x W x H)12700 x 4200 x 710012700 x 4200 x 710012700 x 4200 x 7100
Transport (L x W x H)13300 x 3000 x 420013300 x 3000 x 420013300 x 3000 x 4200
Weight18500 kg25400 kg30500 kg
Feed size37 mm45 mm50 mm
Rotor speed1500-2500 rpm1100-2100 rpm1000-1800 rpm
Capacity60 TPH150 TPH240 TPH
Motor75-160 kW160-320 kW320-600 kW
VSIT 150T 320T 600
ScreenCMS 1850-IVCMS 1850-IVCMS 2060-IV

Downloads for Wheeler Series VSI

Wheeler Series VSI
