Cyclowash

Thickener

Thickener

The Clear Choice in Water Recovery

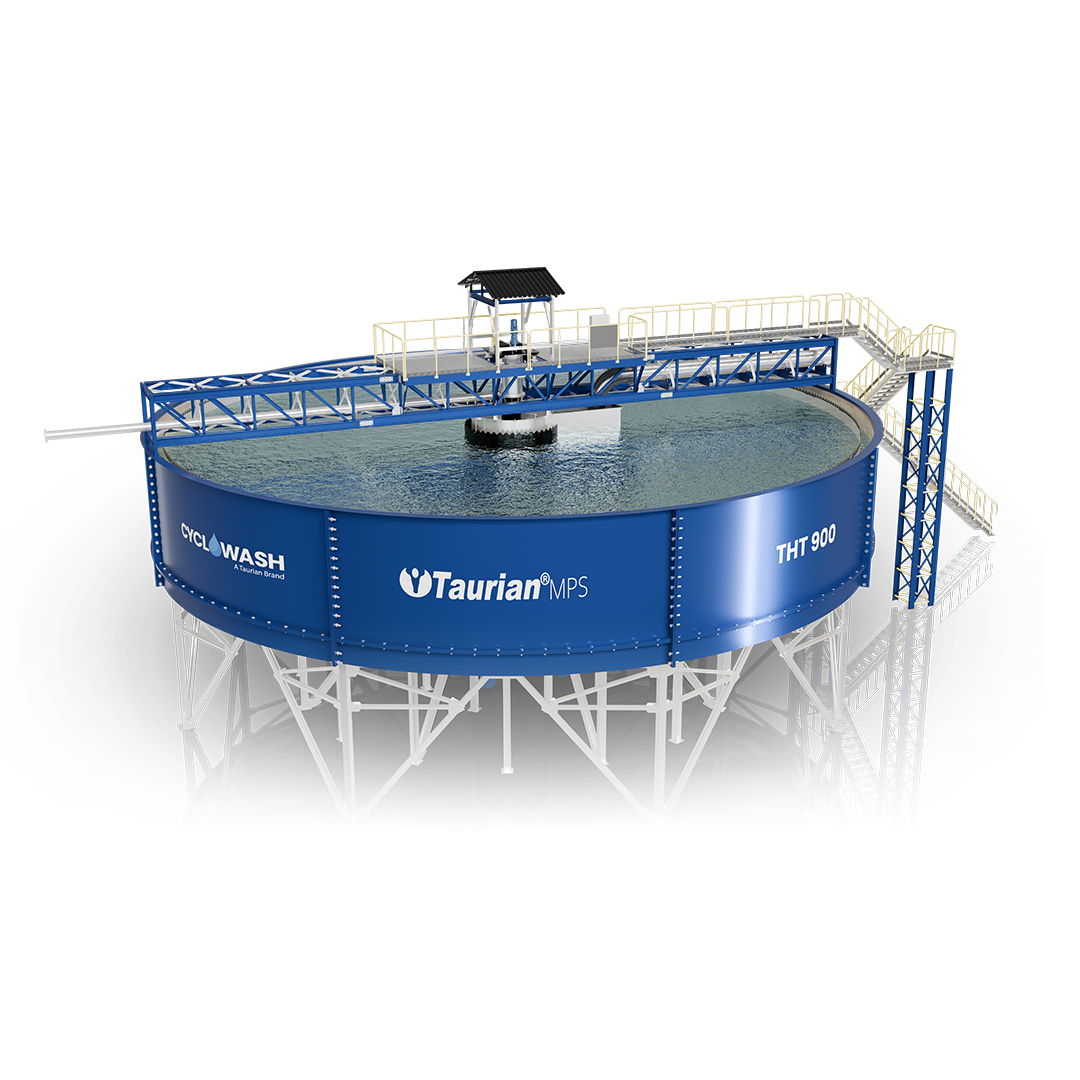

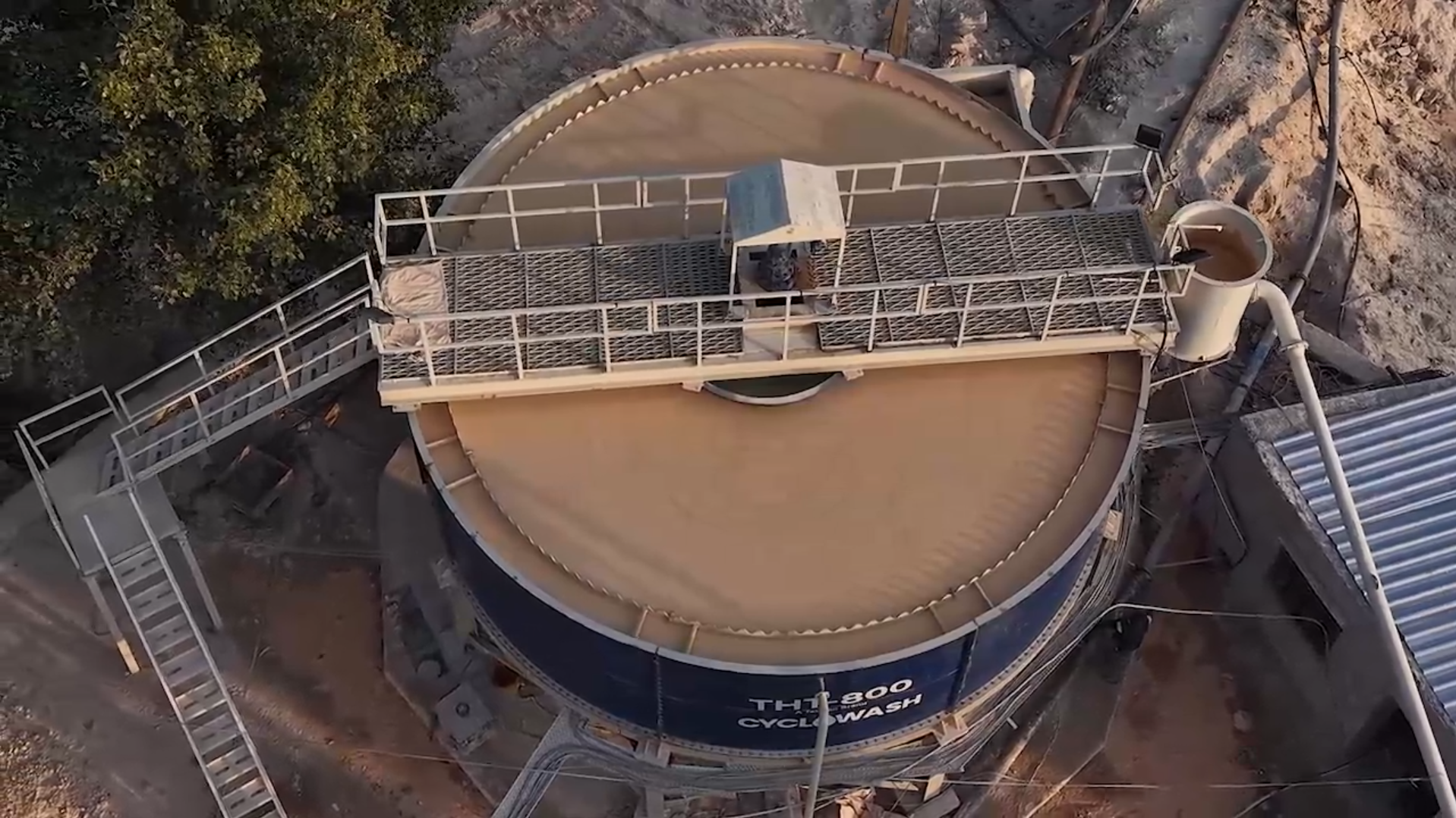

The Taurian CycloWash™ Thickener is a high-capacity water recovery system for mining, sand washing, and mineral processing. It features robust support legs, precision dosing, and PLC automation. Designed to reduce freshwater use and environmental impact, it ensures efficient dewatering and sludge management for cleaner, more sustainable plant operations.

  1. Home
  2. Products
  3. Cyclowash
  4. Thickener
Thickener

What We Offer

We offer a fully integrated thickening system equipped with a unique rake mechanism for optimal sludge handling, a metered flocculant dosing system for improved settlement, and heavy-duty components for structural stability. The Thickener features a galvanized walkway bridge, gasket-sealed slurry outlets, and a PLC or marshalling panel for complete operational control. Delivered prewired and pretested, the system is plug-and-play ready, making it ideal for rapid deployment in both greenfield and retrofit installations.

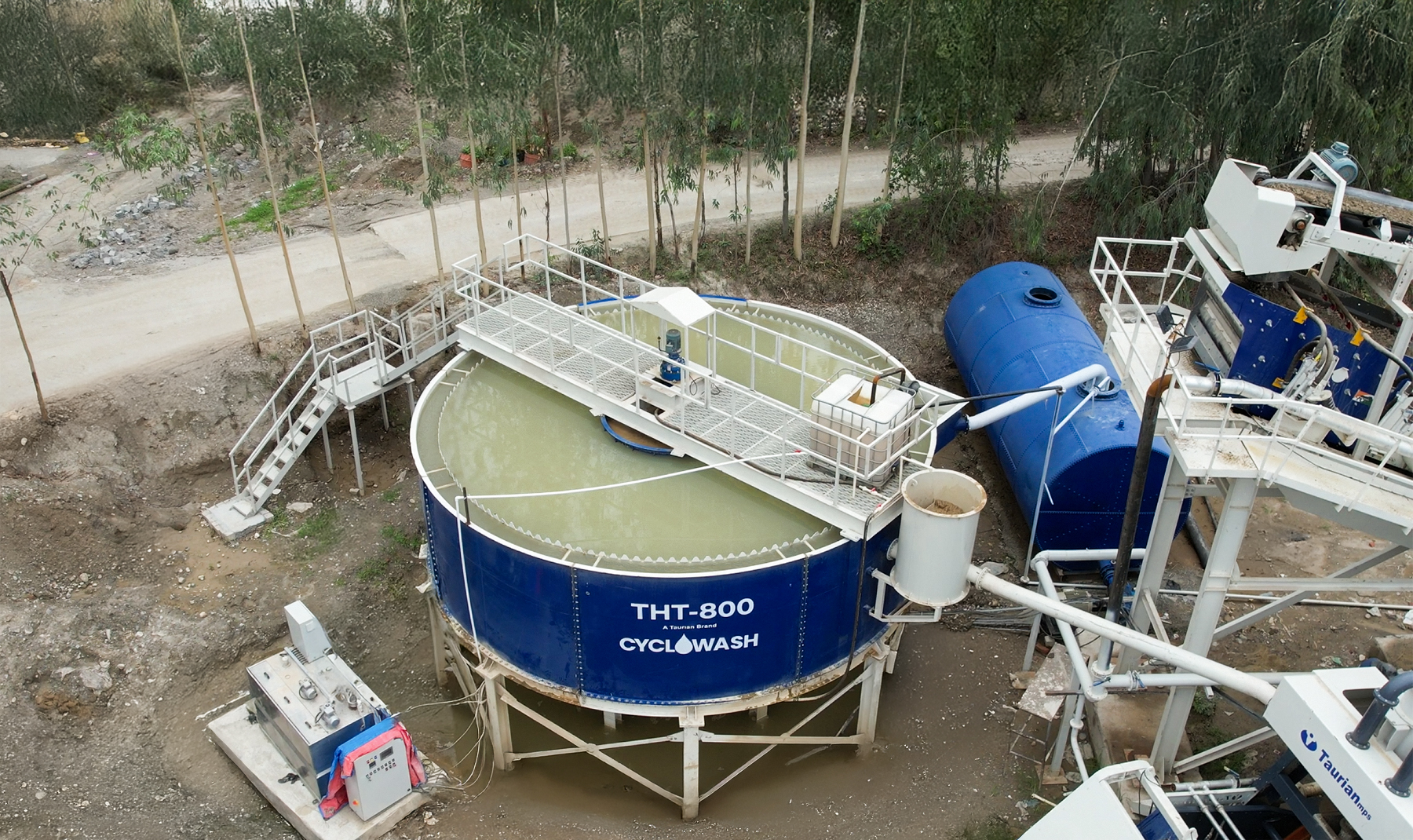

thickener imag web

Key Benefits

Thickener
Superior Water Recovery
Superior Water Recovery

Maximizes water reuse and reduces reliance on external water sources.

Optimized Sludge Handling
Optimized Sludge Handling

Rake mechanism ensures even conditioning and better underflow control.

Efficient Settling and Overflow Clarity
Efficient Settling and Overflow Clarity

- Steep sidewall cone and optimized tank design promote rapid particle settling.
- Produces clear overflow water, ideal for recycling in wash plants.

Automation-Ready with Sensors
Automation-Ready with Sensors

- Equipped with torque, bed level, and rake position sensors for smart control.
- Optional SCADA integration for remote monitoring and plant-wide optimization.

Built for Reliability
Built for Reliability

Heavy-duty legs and truss support bridge withstand industrial working conditions.

Thickener

Product Features

Rake Machine

Integrated Rake Mechanism

  • Conditions sludge efficiently and removes air pockets.
  • Minimizes disruption to settled sludge.
  • Four-beam rake structure with low-profile scraper blades.
  • Equipped with overload monitoring and torque protection.
dozing_station_1

Dozing Station

  • Supplies poly-electrolyte for effective flocculation.
  • Designed with sufficient holding time for better activation and performance.
  • Customizable to suit different plant volumes and feedwater chemistry.

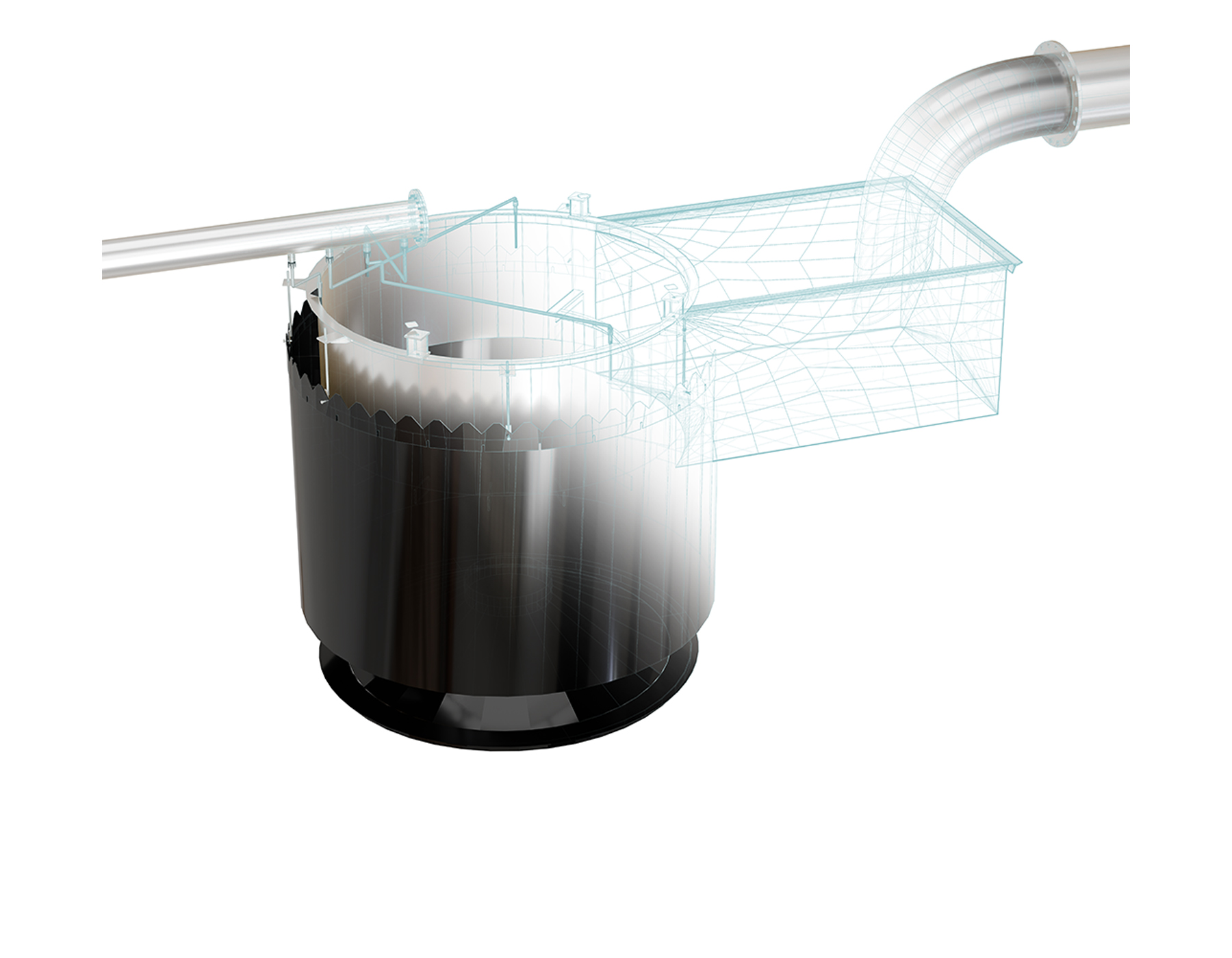

Center diffusion drum

Center Diffusion Drum

  • Receives slurry via a transfer pipe and slows the flow to reduce turbulence.
  • Promotes better material settling in the thickener.
  • Ensures uniform distribution, improving overall flocculation and sludge separation.

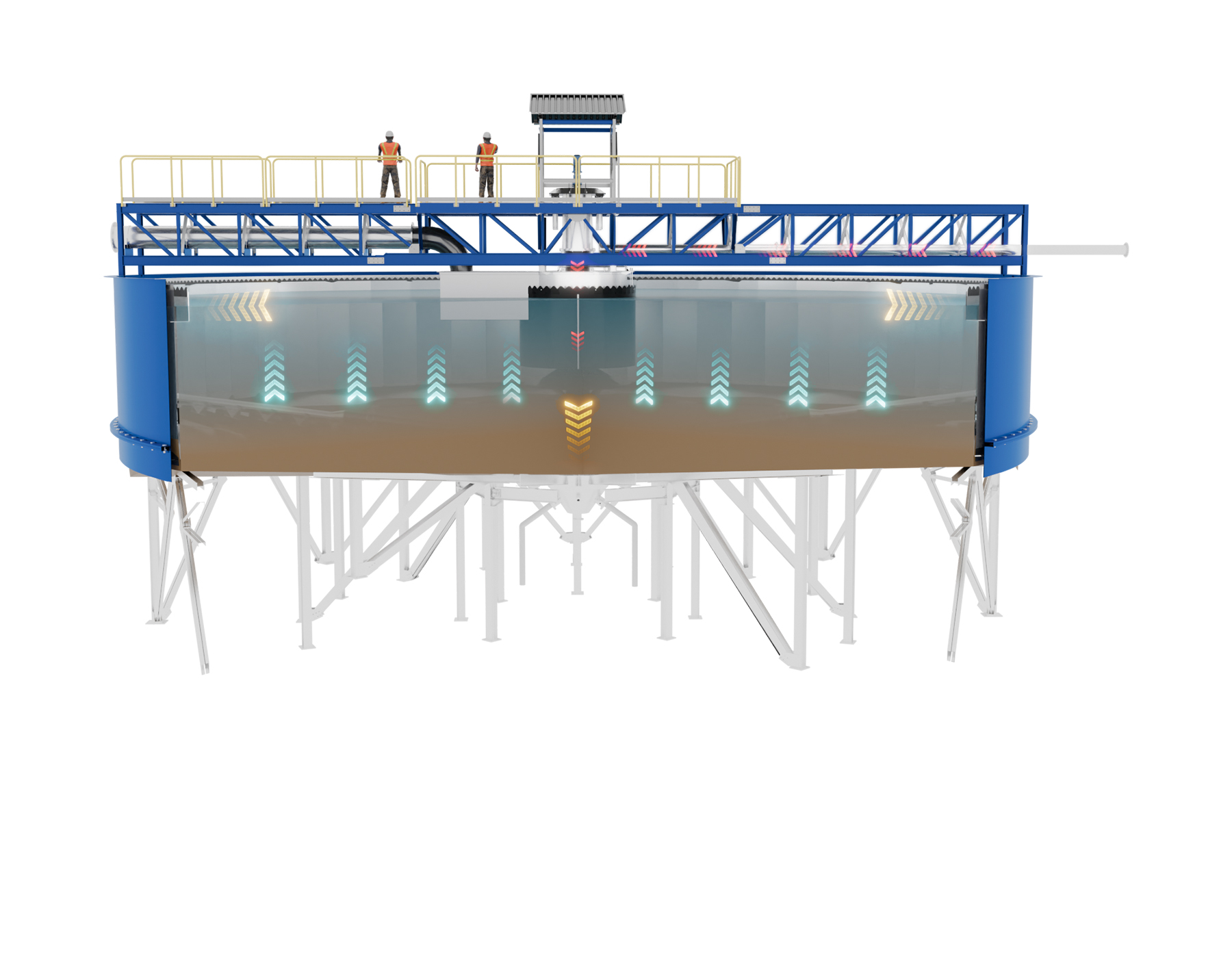

thickening

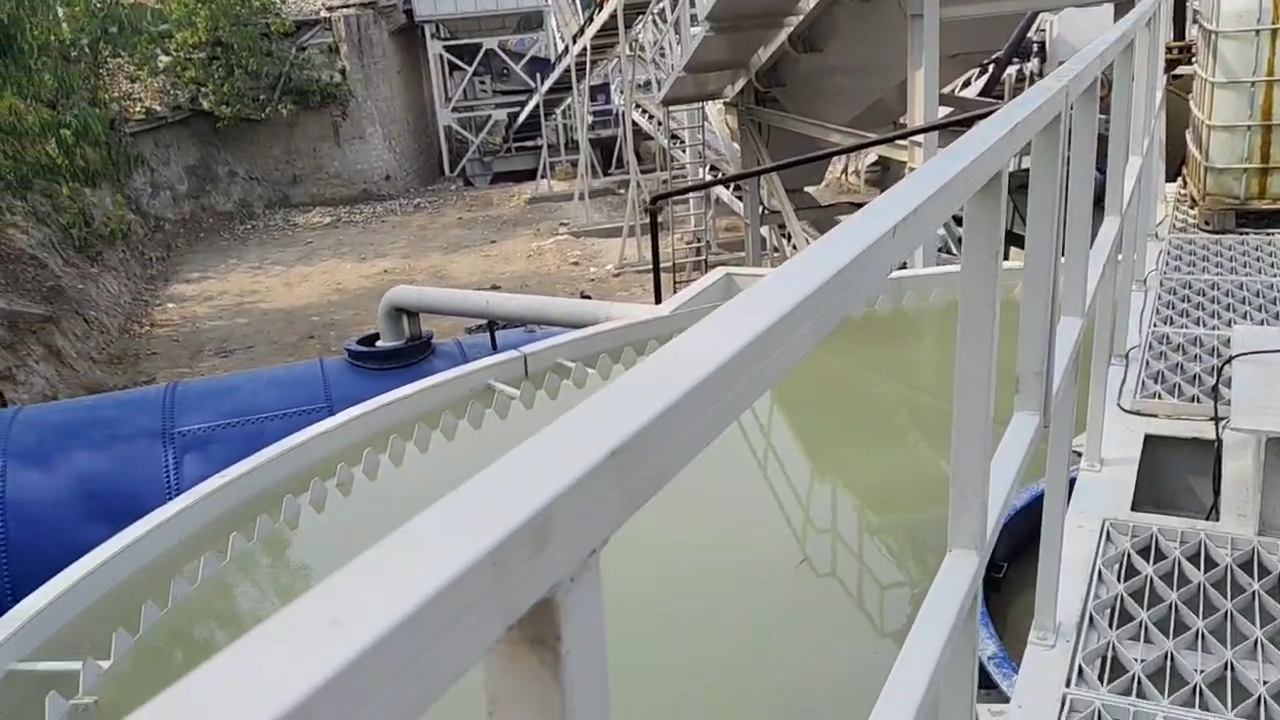

Peripheral Weir

  • Placed around the tank for even, stable overflow.
  • Maximizes clean water recovery and minimizes turbulence.
  • Supports site-specific discharge layouts and improves water recycling performance.
Integrated Rake Mechanism
Dozing Station
Center Diffusion Drum
Peripheral Weir
Thickener 02
Thickener 01
Thickener 03
Thickener img web 5
thickener imag web
Thickener img web 1
Thickener img web 3
Thickener img web 2
Thickener img web 4

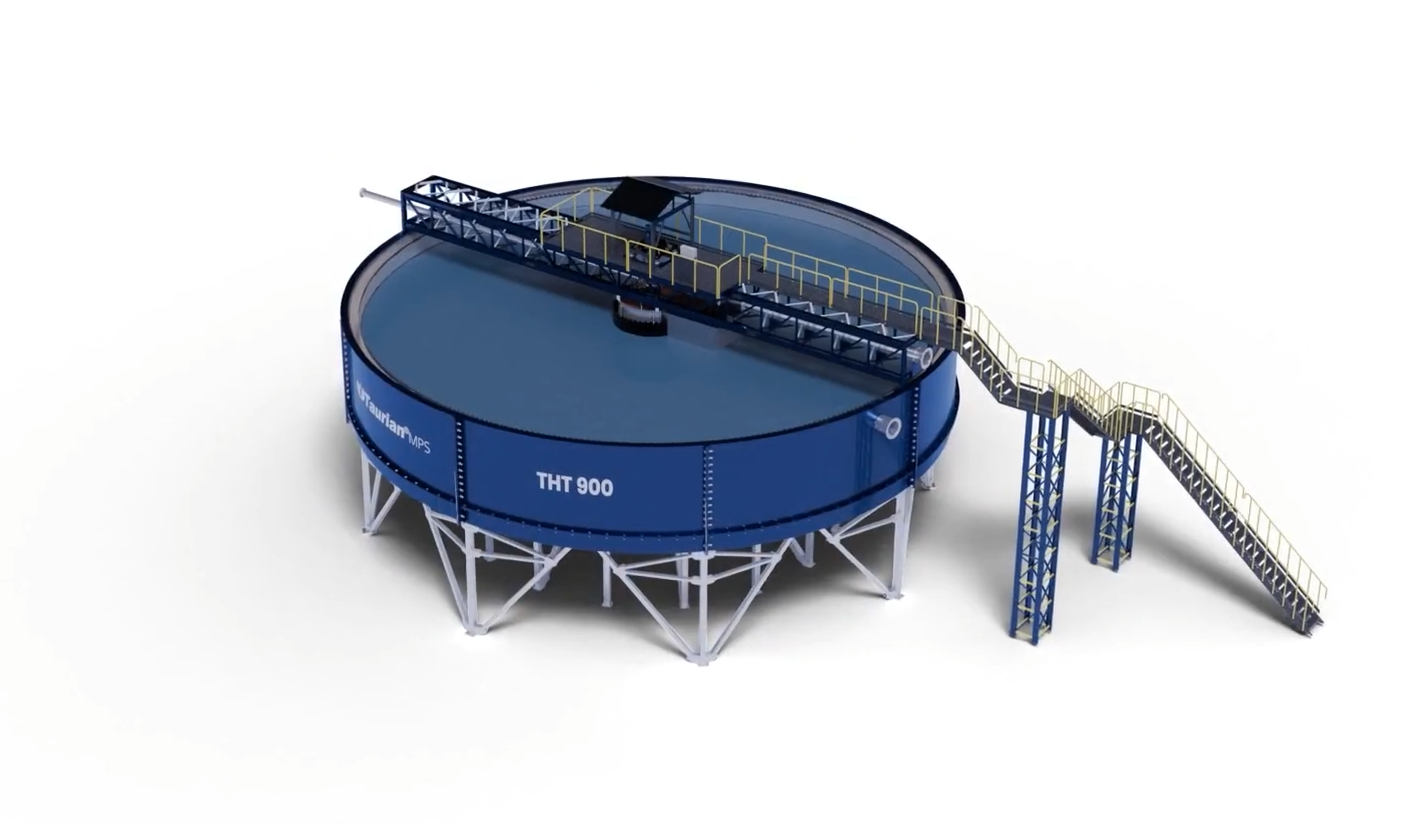

Screenshot 2025 08 25 183330
Thickener 02
Thickener 01
Thickener 03

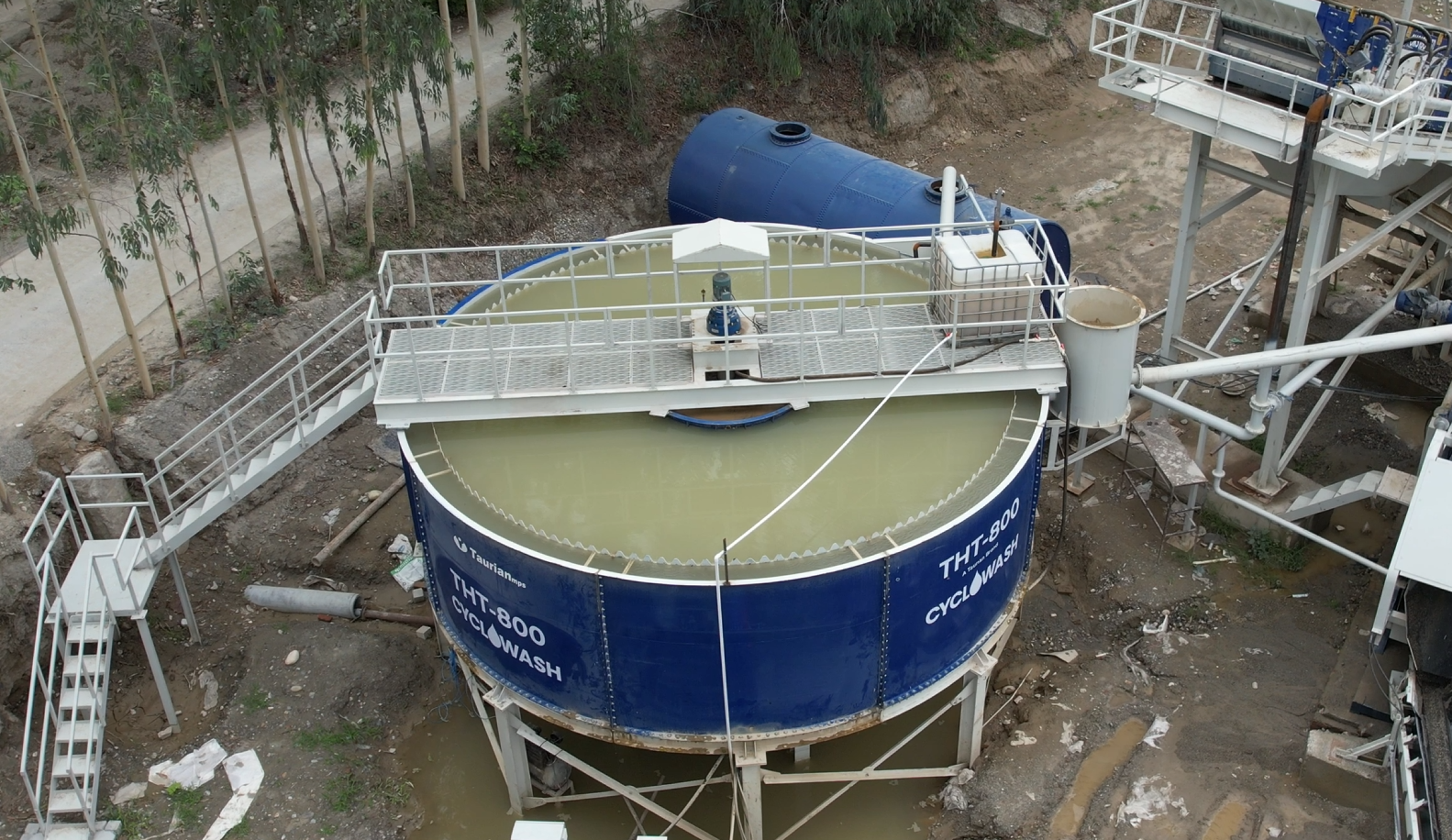

THT

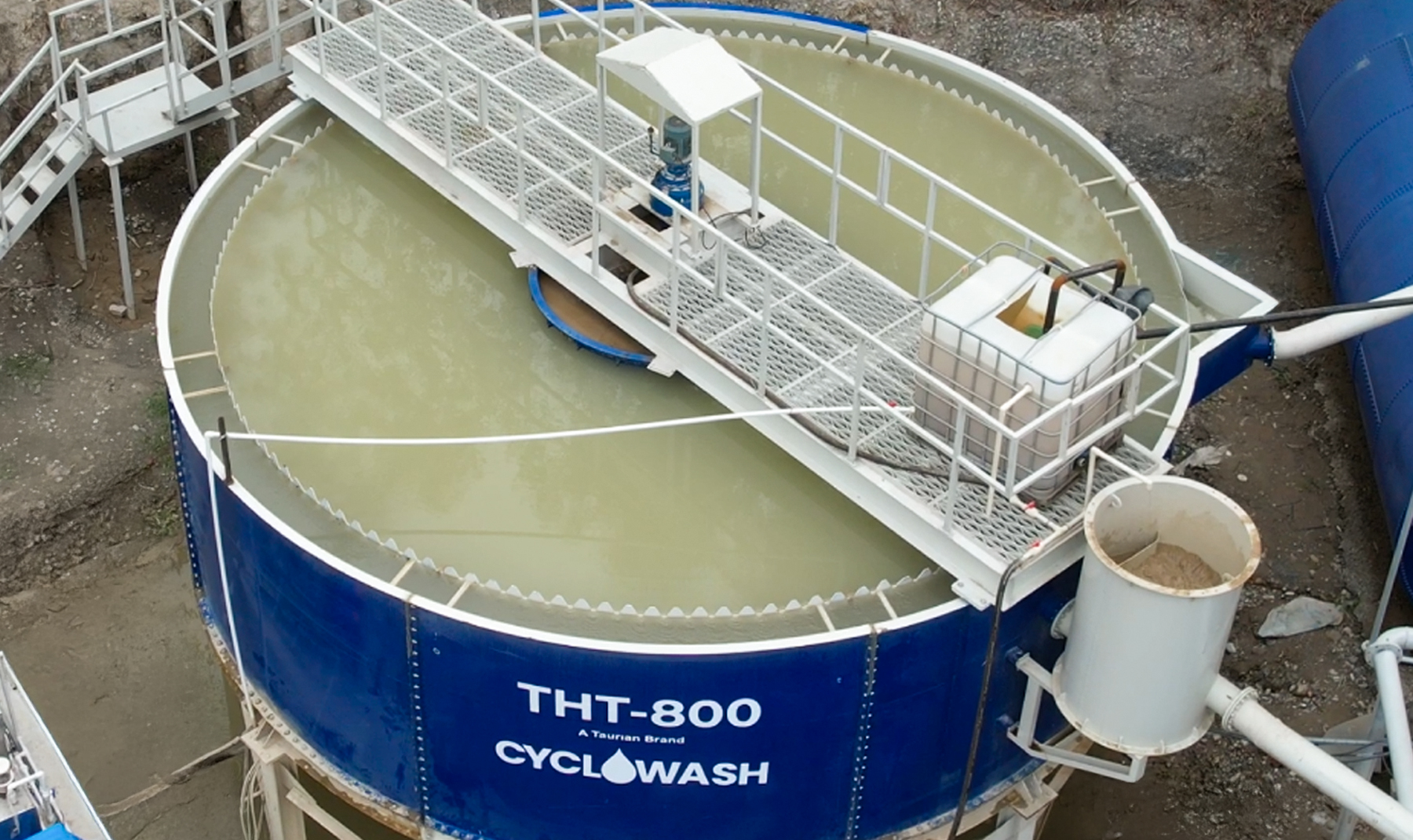

Thickener img web 5
thickener imag web

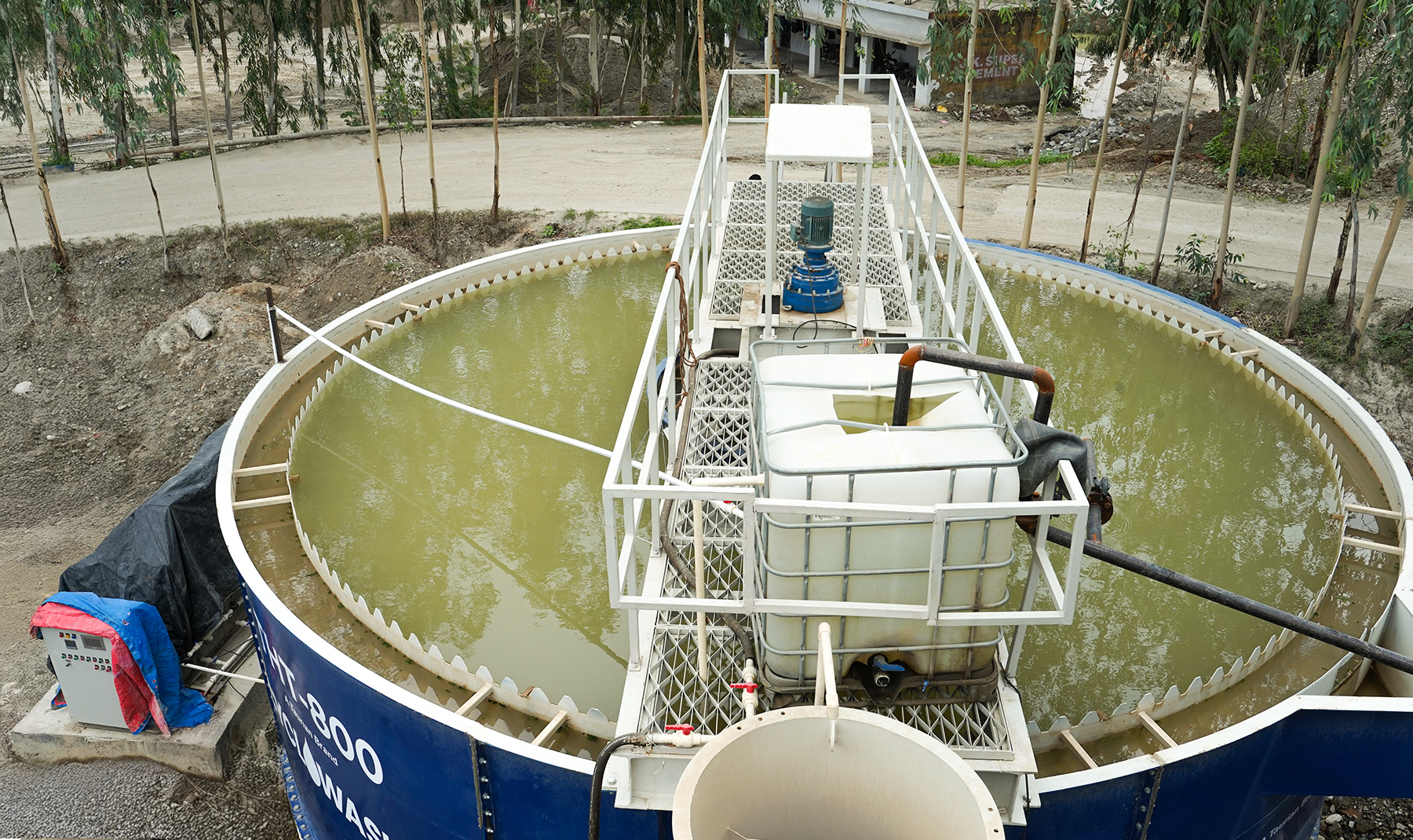

Thickener img web 1

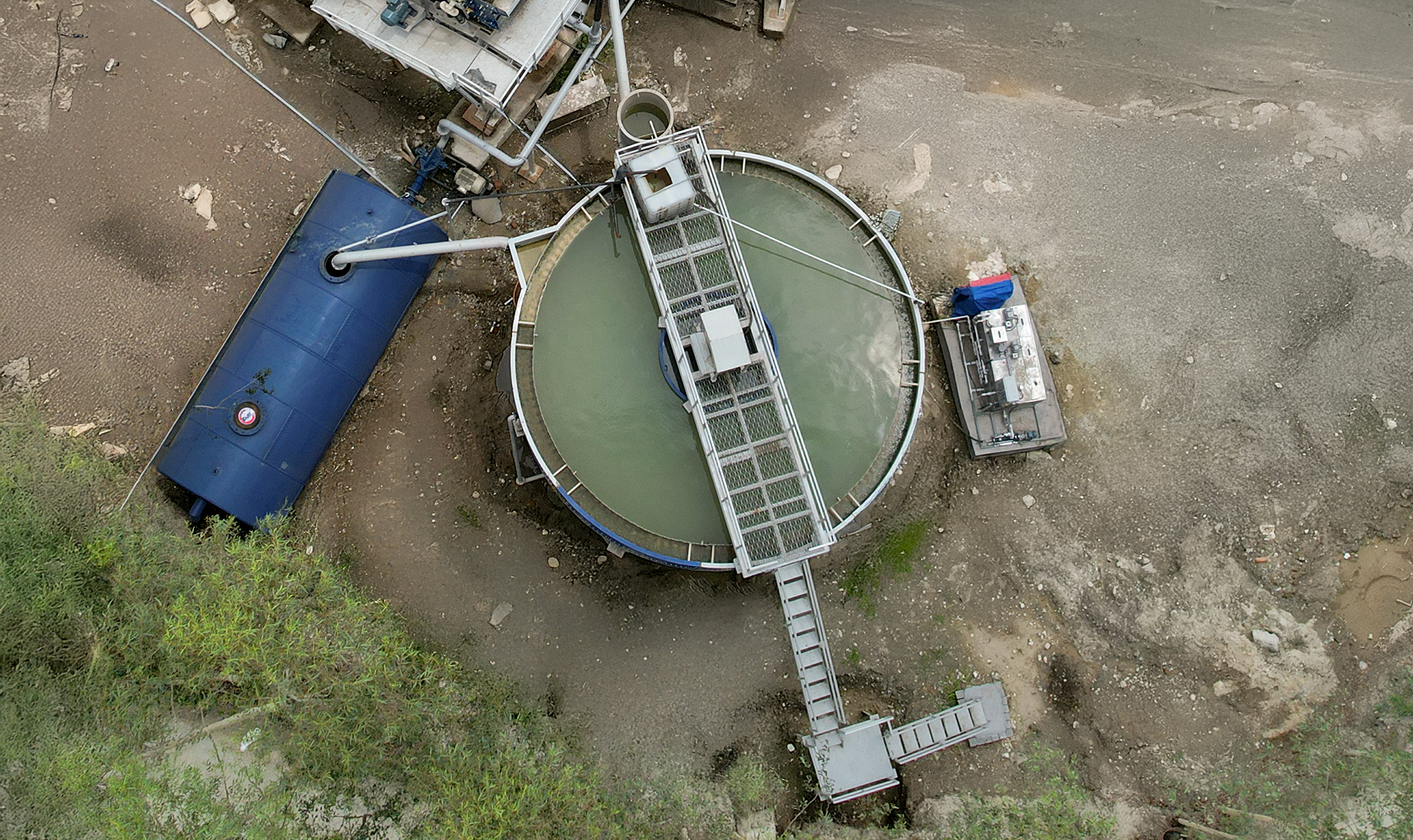

Thickener img web 3
Thickener img web 2
Thickener img web 4

Technical Specifiactions

Thickener - THT SERIES
ModelTHT 100THT 200THT 400THT 600THT 1500
Maximum feed rate100 m³/hr200 m³/hr400 m³/hr600 m³/hr1500 m³/hr
Feed height131.89 in142.52 in174.02 in181.10 in7200 mm
Rakes motor1.1 kW2.2 kW3 kW4 kW4 kW
Sludge flow rate5 TPH10 TPH20 TPH30 TPH80 TPH
Sludge pump3/23/24/36/46/4
Sludge pump motor11 kW11 kW15 kW30 kW45 kW
Clean water discharge height135.83 in143.31 in176.77 in188.98 in188.98 in
Weight (Empty)8000 kg11000 kg20000 kg25000 kg65000 kg
Weight (Full)60000 kg120000 kg200000 kg270000 kg750000 kg
Dimensions
Diameter (A)4 m6 m8 m10 m15 m
Height (B)4 m4 m5 m5 m5 m
